Summary of Contents for Satel abax 2 APT-200

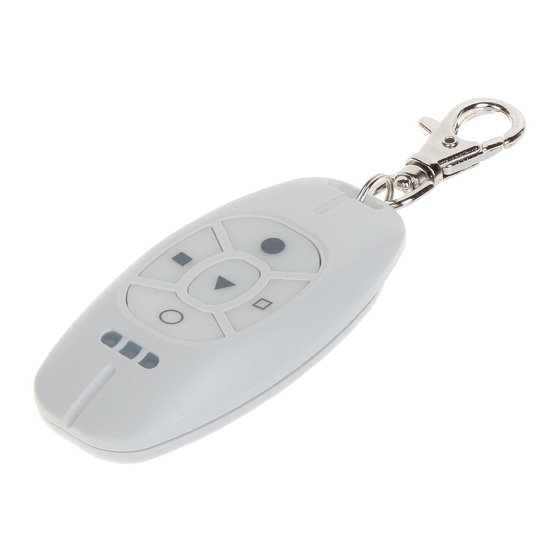

- Page 1 Bidirectional keyfob APT-200 Firmware version 1.00 apt-200_en 02/23 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
- Page 2 13 August 2005). The device meets the technical regulations of the Eurasian Customs Union. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
- Page 3 CONTENTS Features ........................... 2 Description ........................2 Control ........................2 ACU-220 controller ........................2 ABAX 2 / ABAX controller connected to INTEGRA / INTEGRA Plus control panel ....3 INTEGRA 128-WRL control panel................... 3 ABAX 2 / ABAX controller connected to VERSA / VERSA Plus / VERSA IP control panel ... 3 ABAX 2 controller connected to PERFECTA 64 M control panel ...........
- Page 4 APT-200 SATEL The APT-200 keyfob allows you to remotely control the alarm system or automation devices. It is designed for operation within the ABAX 2 / ABAX two-way wireless system. The keyfob is supported by: • ABAX 2: − ACU-220 / ACU-280 controller, •...
- Page 5 SATEL APT-200 The keyfob user can control the ACU-220 controller outputs. The five buttons make it possible to control six outputs (to control the sixth output, press the [1 and 5] buttons simultaneously). Pressing the keyfob button(s) will turn on the output for a preset time or toggle the output to its opposite state.
- Page 6 APT-200 SATEL and its preset wiring type must be different from “No detector”. You can program any zone type for the zone. For more information, refer to the ABAX 2 controller manual and the PERFECTA 64 M control panel manuals.
- Page 7 SATEL APT-200 Be particularly careful during installation and replacement of the battery. The manufacturer is not liable for the consequences of incorrect installation of the battery. The used batteries must not be discarded, but should be disposed of in accordance with the existing rules for environment protection.
- Page 8 APT-200 SATEL When the battery is low, after pressing the button: • the buttons backlight will flash (instead of being solid), • the LBA output of the ACU-220 controller will turn on (if the keyfob is registered in the ACU-220 controller), •...
