- Page 1 APT-200 Bidirectional keyfob Firmware version 1.00 apt-200_en 03/19 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 The rating plate of the device is located inside the enclosure. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.

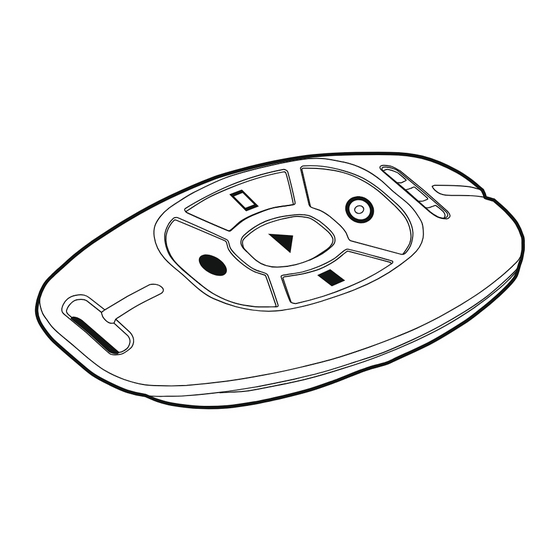

- Page 3 The APT-200 keyfob allows you to remotely control the alarm system or automation devices. It is designed for operation within the ABAX 2 / ABAX two-way wireless system. The keyfob is supported by: ABAX 2: ACU-220 / ACU-280 controller, ...
- Page 4 APT-200 SATEL The keyfob user can control the ACU-220 controller outputs. The five buttons make it possible to control six outputs (to control the sixth output, press the [1 and 5] buttons simultaneously). Pressing the keyfob button(s) will turn on the output for a preset time or toggle the output to its opposite state.
-
Page 5: Battery Replacement
SATEL APT-200 2.2 System state information To get the system state information, press any button (it needn't start any function). The information will be presented by the keyfob LEDs for a few seconds. ACU-220 controller The description below does not apply to the ACU-220 controller connected to the INTEGRA / INTEGRA Plus / VERSA / VERSA Plus / VERSA IP control panel. - Page 6 APT-200 SATEL the control panel will indicate trouble (if the keyfob is registered in the ABAX 2 / ABAX controller, which is connected to the INTEGRA / INTEGRA Plus / VERSA / VERSA Plus / VERSA IP control panel, or in the INTEGRA 128-WRL control panel).
-
Page 7: Specifications
SATEL APT-200 4 Specifications Operating frequency band ..............868.0 MHz ÷ 868.6 MHz Radio communication range (in open area) ABAX 2 ACU-220 ....................up to 1200 m ACU-280 ....................up to 600 m ABAX......................up to 150 m Battery ........................CR2032 3V Environmental class according to EN50130-5 .................
