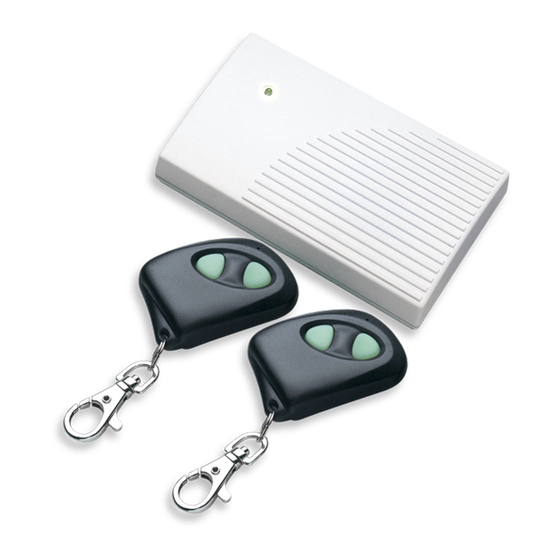

RX-1K
1-CHANNEL RADIO REMOTE CONTROLLER
The RX-1K controller allows you to use keyfobs to control device connected to relay output. Because
it is designed for use with the alarm system, it has inputs supervising the state of the alarm system, as
well as an output for indication of arming / disarming / alarm clearing.
1. Features
1 control channels.
Support for up to 40 keyfobs.
Transmissions secured by KeeLoq code hopping.
1 relay output.
2 OC type outputs:
indication of low keyfob battery,
indication of arming / disarming / alarm clearing in the alarm system.
2 inputs to supervise the state of the alarm system:
armed mode information,
alarm information.
LED indicator.
Tamper switch activated by cover removal.
2. Electronics board
bicolor LED indicator:
ON in green – power OK,
ON in red – transmission has been received from keyfob,
flashing red – transmission has been received from keyfob with low battery.
tamper switch.
antenna.

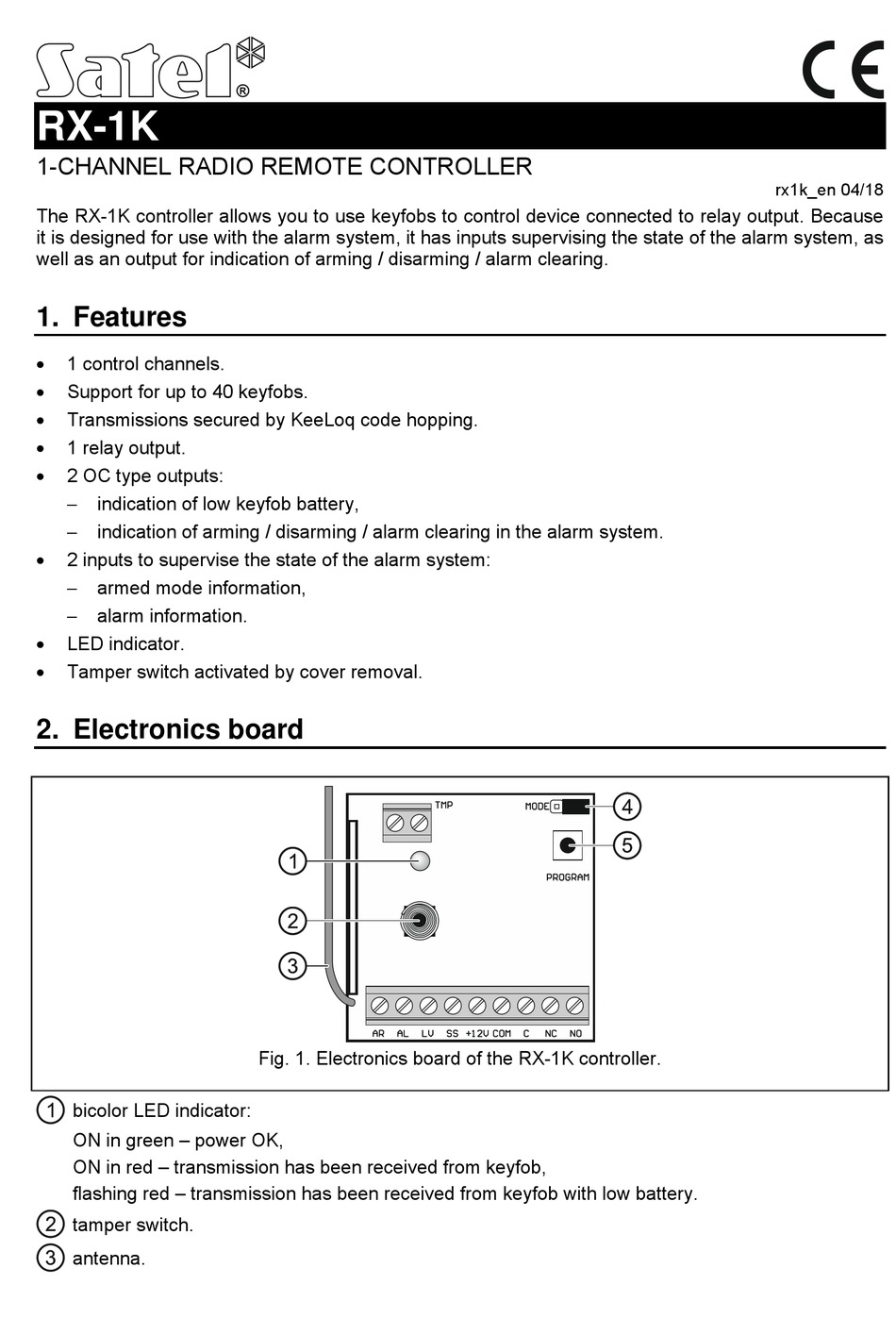

Fig. 1. Electronics board of the RX-1K controller.
rx1k_en 04/18
