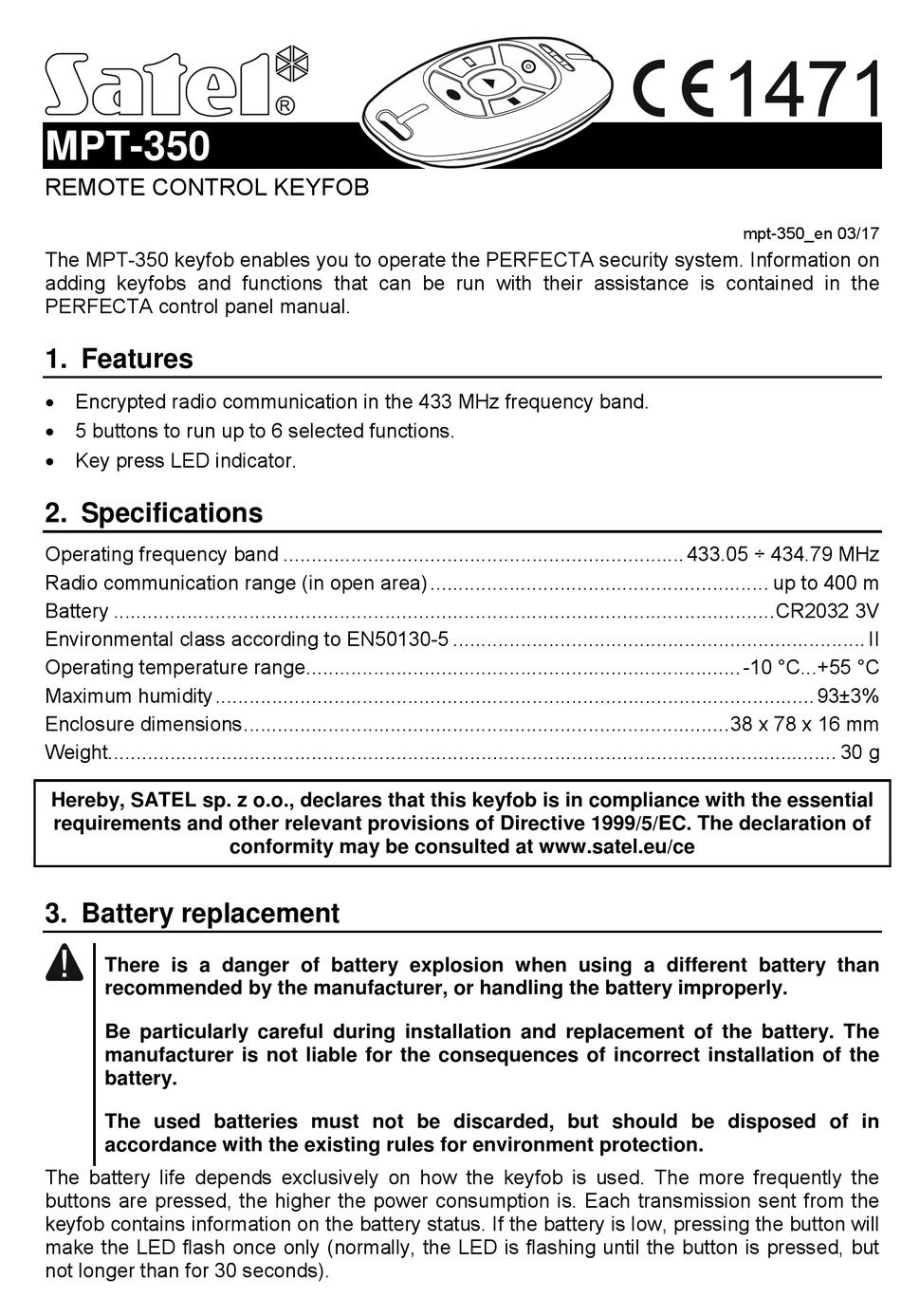

Satel MPT-350 Quick Start Manual

MPT-350

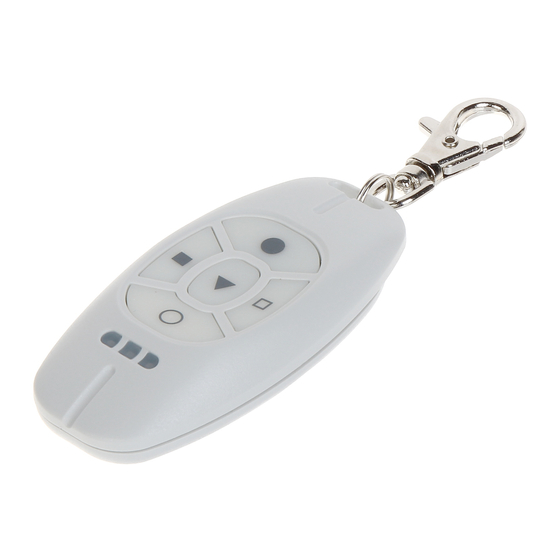

REMOTE CONTROL KEYFOB
The MPT-350 keyfob enables you to operate the PERFECTA security system. Information on
adding keyfobs and functions that can be run with their assistance is contained in the
PERFECTA control panel manual.
1. Features
 Encrypted radio communication in the 433 MHz frequency band.
 5 buttons to run up to 6 selected functions.
 Key press LED indicator.
2. Specifications
Operating frequency band ....................................................................... 433.05 ÷ 434.79 MHz
Radio communication range (in open area) ............................................................ up to 400 m
Battery .....................................................................................................................CR2032 3V
Environmental class according to EN50130-5 ......................................................................... II
Operating temperature range.............................................................................-10 °C...+55 °C
Maximum humidity .......................................................................................................... 93±3%
Enclosure dimensions......................................................................................38 x 78 x 16 mm
Weight................................................................................................................................. 30 g
Hereby, SATEL sp. z o.o., declares that this keyfob is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC. The declaration of
3. Battery replacement
There is a danger of battery explosion when using a different battery than
recommended by the manufacturer, or handling the battery improperly.
Be particularly careful during installation and replacement of the battery. The
manufacturer is not liable for the consequences of incorrect installation of the
battery.
The used batteries must not be discarded, but should be disposed of in
accordance with the existing rules for environment protection.
The battery life depends exclusively on how the keyfob is used. The more frequently the
buttons are pressed, the higher the power consumption is. Each transmission sent from the
keyfob contains information on the battery status. If the battery is low, pressing the button will
make the LED flash once only (normally, the LED is flashing until the button is pressed, but
not longer than for 30 seconds).
conformity may be consulted at www.satel.eu/ce
1471
mpt-350_en 03/17
