APT-100
BIDIRECTIONAL KEYFOB
The APT-100 keyfob allows you to remotely control the INTEGRA, INTEGRA Plus, VERSA,
VERSA Plus or VERSA IP alarm system. The keyfob is designed for use as part of the ABAX
two-way wireless system. It is supported by:
 ACU-120 / ACU-270 / ACU-100 (firmware version 2.00 or newer) / ACU-250 controller
connected to the INTEGRA (firmware version 1.06 or newer) / INTEGRA Plus / VERSA
(firmware version 1.01 or newer) / VERSA Plus / VERSA IP control panel,
 INTEGRA 128-WRL control panel (firmware version 1.01 or newer).

1. Features

 Two-way encrypted radio communication in the 868 MHz frequency band.
 5 buttons to start up to 6 functions.
 3 LEDs indicating the alarm system status.
 Built-in buzzer for audible feedback.
 Buttons backlight.
 Low battery indication.

2. Description

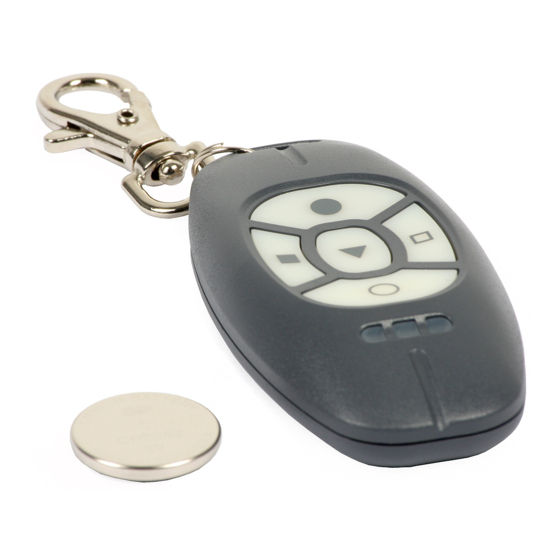

Fig. 1. APT-100 keyfob. A – numeration of LEDs. B – numeration of keyfob buttons.
The keyfob can be assigned to a user or an administrator. For how to add and configure the
keyfobs, please refer to the controller and control panel manuals.
On pressing a button, beep is given, LEDs are flashing three times, backlight is turned on
and transmission is sent to the controller / control panel. On receiving the confirmation from
1471
apt100_en 05/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APT-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Satel APT-100

Summary of Contents for Satel APT-100

  • Page 1  Low battery indication. 2. Description Fig. 1. APT-100 keyfob. A – numeration of LEDs. B – numeration of keyfob buttons. The keyfob can be assigned to a user or an administrator. For how to add and configure the keyfobs, please refer to the controller and control panel manuals.

  • Page 2: Battery Replacement

    APT-100 SATEL the controller / control panel, the keyfob will give beeps. When the keyfob will receive system status data, will display them on the LEDs. 2.1 Alarm system control The five buttons allow you to start up to 6 functions (to start the sixth function, press simultaneously the buttons [1 and 5]).

  • Page 3: Specifications

    SATEL APT-100 Fig. 2. Replacing the keyfob battery. 4. Specifications Operating frequency band ..............868,0 MHz ÷ 868,6 MHz Radio communication range (in open area) ............up to 150 m Battery ........................CR2032 3V...
  • Page 4 Dimensions ..................... 38 x 78 x 16 mm Weight..........................30 g Hereby, SATEL sp. z o.o., declares that this keyfob is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at www.satel.eu/ce SATEL sp.
