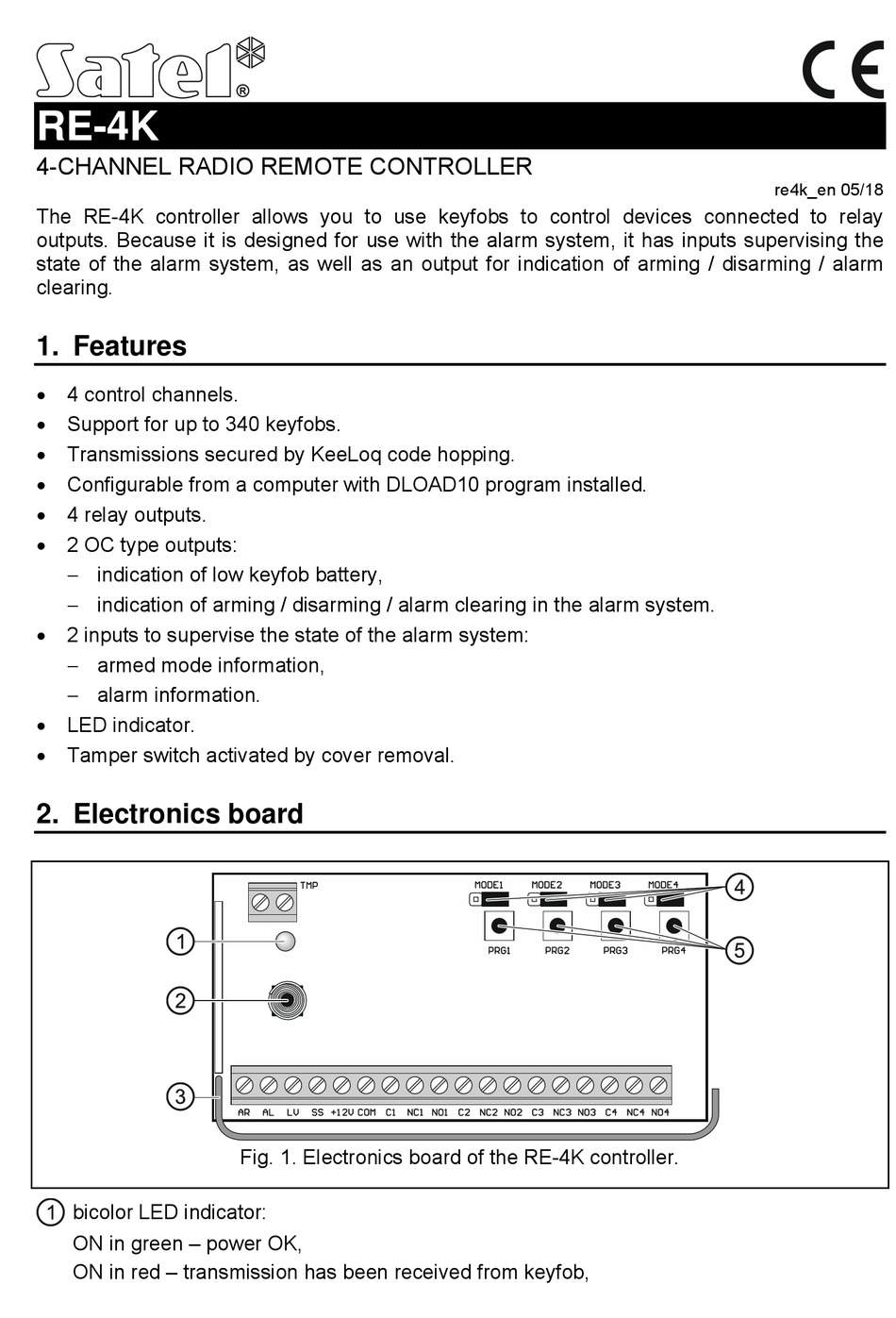

RE-4K
4-CHANNEL RADIO REMOTE CONTROLLER
The RE-4K controller allows you to use keyfobs to control devices connected to relay
outputs. Because it is designed for use with the alarm system, it has inputs supervising the
state of the alarm system, as well as an output for indication of arming / disarming / alarm
clearing.
1. Features
 4 control channels.
 Support for up to 340 keyfobs.
 Transmissions secured by KeeLoq code hopping.
 Configurable from a computer with DLOAD10 program installed.
 4 relay outputs.
 2 OC type outputs:
 indication of low keyfob battery,
 indication of arming / disarming / alarm clearing in the alarm system.
 2 inputs to supervise the state of the alarm system:
 armed mode information,
 alarm information.
 LED indicator.
 Tamper switch activated by cover removal.
2. Electronics board
bicolor LED indicator:
ON in green – power OK,
ON in red – transmission has been received from keyfob,
Fig. 1. Electronics board of the RE-4K controller.
re4k_en 05/18

Advertisement

loading

Related Manuals for Satel RE-4K

Summary of Contents for Satel RE-4K

  • Page 1 4-CHANNEL RADIO REMOTE CONTROLLER re4k_en 05/18 The RE-4K controller allows you to use keyfobs to control devices connected to relay outputs. Because it is designed for use with the alarm system, it has inputs supervising the state of the alarm system, as well as an output for indication of arming / disarming / alarm clearing.
  • Page 2 - relay output common contact. C1...C4 NC1...NC4 - relay output normally closed contact. NO1...NO4 - relay output normally open contact. 3. Keyfobs The controller supports the following SATEL 433 MHz keyfobs: MPT-300 – 5-button keyfob, T-4 – 4-button keyfob, T-2 – 2-button keyfob,...

  • Page 3: Installation

    5.1 Preparation for configuring using the DLOAD10 program Connecting the computer to the controller To make the connection, use the USB-RS converter offered by SATEL. The controller has no RS port connector, therefore you must use the PIN3/RX adapter, which is delivered with the converter.
  • Page 4 RE-4K SATEL Wire color Function Terminal green Rx signal white Tx signal black common ground Table 1. Notes:  If you cannot establish communication between the controller and the program, add a 47 kΩ resistor between the LV and +12V terminals.
  • Page 5 SATEL RE-4K Fig. 3. DLOAD10 program: controller configuration window. 5.2 Enrolling a keyfob Enrolling a keyfob by using a button You can use any button to enroll a keyfob, but only using the PRG1 button allows the keyfob user to control all channels (relay outputs). If another button is used, the keyfob will only be able to control some channels.
  • Page 6 RE-4K SATEL Keyfob button Channels controlled from Controller button a keyfob PRG1 PRG2 PRG3 PRG4 Table 2. 1. Press the selected controller button. The LED will start flashing green. 2. Press the keyfob button. The LED will start flashing red.

  • Page 7: Specifications

    1. Click “Read times” to read the times programmed in the controller. 2. In the “Time” column, enter the cut-off time for the given relay output. 3. Click “Write times” to write the changes to the controller. 6. Specifications RE-4K controller Supply voltage ......................9...16 V DC...
  • Page 8 Dimensions ..................... 35 x 70 x 15 mm Weight..........................28 g Hereby, SATEL sp. z o.o., declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.satel.eu/ce SATEL sp.
