VTech RM5752 Quick Start Manual

Go to www.vtechphones.com
to register your product for
enhanced warranty support and
the latest VTech product news.

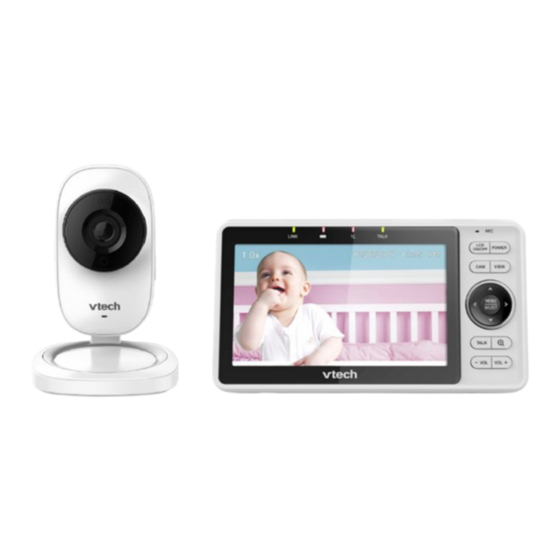

Wi-Fi Full HD Video Monitor
Installation guide
Congratulations
on purchasing your new VTech product. Before using this HD video monitor, please read
Important safety instructions.
For support, shopping, and everything new at VTech, visit our website at
www.vtechphones.com. In Canada, visit www.vtechcanada.com.
What does HD Video Monitor do?
VTech Wi-Fi HD Video Monitor allows you to stay close to your baby when you are on the move
or away.
This monitor is Wi-Fi enabled, which uses your home wireless network to stream live video and
audio through the HD camera unit and 5-inch touch screen parent unit. It allows you to maintain
a constant connection to your baby.
You can also monitor from your smartphone and mobile tablet.
VTech Wi-Fi HD Video Monitor uses MyVTech Baby app to let you instantly see and hear what's
happening with your baby from anywhere in the world.
The app can be downloaded from the App Store or the Google Play TM Store, directly from your
smartphone or mobile tablet.
RM5752 What's in the box
RM5752-2
Your HD video monitor package contains the following items. Save your sales receipt and
original packaging in the event warranty service is necessary.
BC
Installation guide
Quick start guide
Requirements
Make sure your system includes the following components, and they meet the minimum
requirement.
Network Wi-Fi
Wi-Fi router 2.4GHz IEEE 802.11 b/g/n
Internet connection At least 1.0 Mbps upload bandwidth per camera
micro SD card Support Class 4 or higher, with storage capacity up to 32GB
Parent unit Connect up to 4 camera units
MyVTech Baby mobile app Connect up to 10 camera units
How the system works
The Wi-Fi router (not included) provides Internet
connectivity to your HD video monitor system.
It serves as a communicating channel between
your camera unit and parent unit, allowing you
to monitor and/or control your camera unit
wherever you are.
Overview
Camera unit overview
1
1
1 2
2
3
3
2 4
4
3
4
5 6
5
5
x 2 x 2
7
7
7
8
Important safety 8
instructions 11
8
9
9
9
10
10
10
Protect your privacy and
online security
VTech cares about your privacy and peace of mind. That's why we've
put together a list of industry-recommended best practices to help
keep your wireless connection private and your devices protected
when online. We recommend you carefully review and consider
complying with the following tips.
Ensure your wireless connection is secure.
• Before installing a device, ensure your router's wireless signal is
encrypted by selecting the "WPA2-PSK with AES" setting in your
router's wireless security menu.
Change default settings.
• Change your wireless router's default wireless network name
(SSID) to something unique.
• Change default passwords to unique, strong passwords. A strong
password:
- Is at least 10 characters long.
- Is complex.
- Does not contain dictionary words or personal information.
- Contains a mix of uppercase letters, lowercase letters, special
characters and numbers.
Keep your devices up to date.
• Download security patches from manufacturers as soon as they
become available. This will ensure you always have the latest
security updates.
• If the feature is available, enable automatic updates for future
releases.
Disable Universal Plug and Play (UPnP) on your router.
• UPnP enabled on a router can limit the effectiveness of your
firewall by allowing other network devices to open inbound
ports without any intervention or approval from you. A virus or
other malware program could use this function to compromise
security for the entire network.
For more information on wireless connections and protecting your
data, please review the following resources from industry experts:
1. Federal Communications Commission: Wireless Connections and
Bluetooth Security Tips –
www.fcc.gov/consumers/guides/how-protect-yourself-online.
2. U.S. Department of Homeland Security: Before You Connect a
New Computer to the Internet –
www.us-cert.gov/ncas/tips/ST15-003.
3. Federal Trade Commission: Using IP Cameras Safely –
https://www.consumer.ftc.gov/articles/0382-using-ip-cameras-
safely.
4. Wi-Fi Alliance: Discover Wi-Fi Security –
http://www.wi-fi.org/discover-wi-fi/security.
Parent unit overview
1 LED indicators
• Flash orange and blue alternately when the
camera unit is in pairing mode.
• Orange is steady on when the camera unit is
connecting to the Internet.
1
• Orange and blue are steady on when the
camera unit is idle.
• Flash orange and blue slowly during video
6
6
streaming.
• Flash orange and blue quickly and alternately
2
when the camera unit is updating its firmware.
• You can turn off the camera unit's LEDs if
you find them too bright. Read the LED
online indicator section under Camera
settings in your parent unit's app manual
for instructions.
2 Camera lens
3
3 Infrared LEDs
1 • Allow you to see clearly in a dark surrounding.
11
11
4
4 Light sensor
5
6
5 Microphone
7
6 PAIR button 8
2
9
• Press and hold for 3 seconds to enter pairing
10
mode. 14
11
• Press and hold for 20 seconds to reset the
12
camera settings to factory default.
13
7 Speaker
Caution
1 LED light indicators
• For hearing protection, do not stand close
to the HD camera when the camera's alarm goes
2 LCD display
off. The loud alarm may damage your hearing.
12
3 Antenna
12 12
8 Power jack
4 Microphone
9 Wall mount holes for upright mounting
5 LCD ON/OFF
10 Temperature sensor
6 Speaker
11 Wall mount holes for lateral mounting
7 VIEW
12 ON/OFF switch • Press to select monitoring mode if there
are two or more camera units.
Connect and charge the battery
1
Connect the baby monitor
• Use only the power adapters supplied with this product.
• Make sure the parent unit and the camera unit are not connected to the switch
controlled electric outlets.
• Connect the power adapters in a vertical or floor mount position only. The adapters'
prongs are not designed to hold the weight of the parent unit and the camera
unit, so do not connect them to any ceiling, under-the-table, or cabinet outlets.
Otherwise, the adapters may not properly connect to the outlets.
• Make sure the parent unit, the camera unit and the power adapter cords are out of
reach of children.
Connect the camera unit
• To maintain compliance with the FCC's RF exposure guidelines, place the camera
unit at least 20cm from nearby persons.
1. Connect the power adapter to the camera unit and a power supply.
2. Slide the ON/OFF switch leftward to power on your camera.
• To turn off the HD camera, slide the ON/OFF switch to OFF.
8 CAM
• Press to switch to another camera if
there are two or more camera units.
3
9 Arrow keys
4 • While in a menu, press to return to the
5
main menu or idle screen.
6
, , or
7
8 15
• While viewing images in Single CAM
9
10 or Patrol mode, press and hold to
14
11 16
pan the baby unit camera leftward,
12
upward, rightward or downward. 17
13
• While viewing zoomed image, press
and hold to move the zoomed image
leftward, upward, rightward or
downward.
• While in Split mode, press to move
the selection box leftward, upward,
rightward or downward.
10 MENU/SELECT
• Press to enter the menu.
• While in a menu, press to choose an
item, or save a setting.
15
11
Zoom
16
12 TALK
17
13 + / VOL / -
• Press to increase or decrease the
speaker volume.
14 Power jack
15 Speaker
16 Battery compartment cover
17 Stand
Connect and charge the parent unit battery
Install the parent unit battery
The parent unit runs on rechargeable battery or AC power. To continuously
monitor your baby, keep the parent unit connected to AC power. With the
battery alone, the parent unit can cordlessly run for a short only.
1
Press down on the battery
compartment cover to pull it out.
2
Make sure the label THIS SIDE
UP is facing up while inserting
the battery.
3
• Use only the battery supplied with this product.
• If the parent unit will not be used for a long time, disconnect and remove the
battery to prevent possible leakage.
Replace the battery
To replace the battery, press down on the battery compartment cover and
pull it out, then follow the steps above to install the battery.
