HD67671-MSTP-2-A1, HD67671-MSTP-4-A1

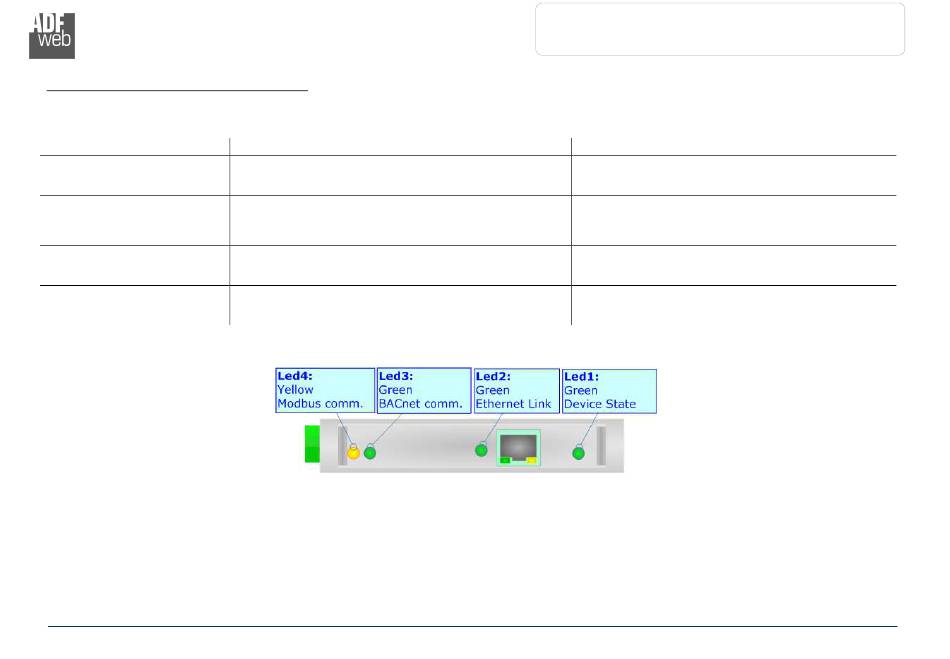

The device has four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device State
2: Link Ethernet
3: BACnet communication
2: Modbus comm. (green)
ADFweb.com S.r.l.
Normal Mode
Blinks slowly (~1Hz)
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
Blinks quickly when a BACnet request is received
Change state when Modbus replies arrive
User Manual BACnet Slave / Modbus Master
Document code: MN67671_ENG Revision 1.100
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
