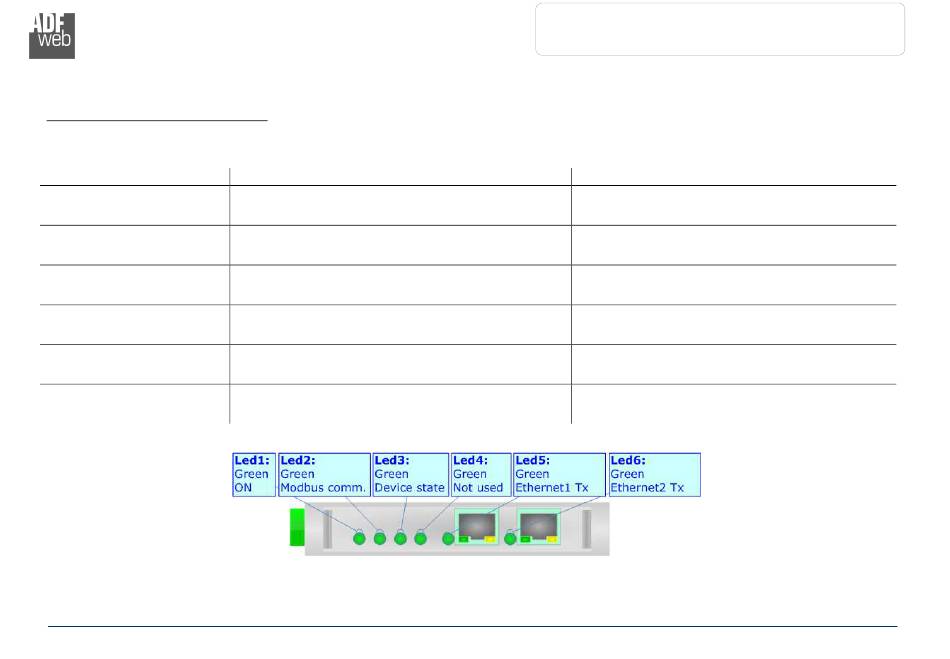

LEDS:
HD67671-IP-2-A1, HD67671-IP-4-A1
The device has got six LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: ON [supply voltage ]
(green)
2: Modbus comm. (green)
3: Device state (green)
4: Not used (green)
5: Ethernet1 Tx (green)
6: Ethernet2 Tx (green)
ADFweb.com S.r.l.
Normal Mode
ON: Device powered
OFF: Device not powered
Change state when Modbus replies arrive
Blinks slowly (~1Hz)
OFF
Blinks when it is transmitting Ethernet frames
Blinks when it is transmitting Ethernet frames
User Manual BACnet Slave / Modbus Master
Document code: MN67671_ENG Revision 1.100
Boot Mode
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
