  • Page 1 Bathroom Occupancy Sensor Featuring LoRaWAN ® VS330 User Guide...
  • Page 2 Do not place the device where the temperature is below/above the operating range.  The device is not intended to be used as a reference sensor, and Milesight will not should  responsibility for any damage which may result from inaccurate readings.

  • Page 3: Table Of Contents

    3.4.1 Upgrade ........................10 3.4.2 Backup .........................10 3.4.3 Reset to Factory Default .....................11 4. Installation ............................12 5. Milesight IoT Cloud Management ....................14 6. Device Payload ..........................15 6.1 Basic Information ........................15 6.2 Sensor Data ........................... 16 6.3 Downlink Commands ......................16...

  • Page 4: Product Introduction

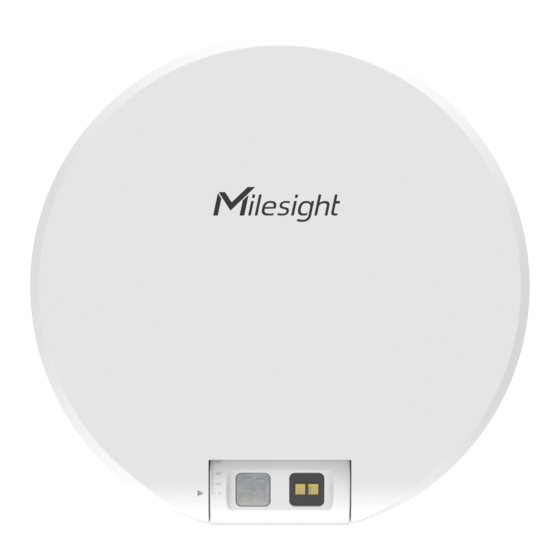

    99.5%. VS330 could easily adjust to different scenarios with 100% anonymity and low power consumption. VS330 could be managed by integrated systems and it allows users to monitor the occupancy and to trigger other devices via a web browser or mobile App remotely. Damp-proof coating inside ensures it working well under various conditions.

  • Page 5: Hardware Introduction

    2. Hardware Introduction 2.1 Packing List 1 × VS330 2 × Wall 1 × Mirror 1 × Quick Start 1 × Warranty Sensor Mounting Kits Cleaning Cloth Guide Card If any of the above items is missing or damaged, please contact your sales representative.

  • Page 6: Operation Guide

    1) Ensure the NFC area of smartphone and it’s recommended to take off phone case. 2) If the smartphone fails to read/write configurations via NFC, move the phone away and back to try again. 3) VS330 sensor can also be configured by dedicated NFC reader, which can be purchased from Milesight IoT.

  • Page 7: Lorawan Settings

    3.2 LoRaWAN Settings Go to Device > Settings > LoRaWAN Settings of ToolBox App to configure join type, App EUI, App Key and other information. You can also keep all settings by default. Parameters Description Device EUI Unique ID of the device which can also be found on the label. App EUI Default App EUI is 24E124C0002A0001.
  • Page 8 enable Single-Channel mode if you connect device to DS7610. Enable or disable the frequency to send uplinks. If frequency is one of CN470/AU915/US915, enter the index of the channel that you want to enable and make them separated by commas. Examples: 1, 40: Enabling Channel 1 and Channel 40 1-40: Enabling Channel 1 to Channel 40...

  • Page 9: Basic Settings

    1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT cloud to manage devices. 4) Only OTAA mode supports rejoin mode.

  • Page 10: Maintenance

    1) Operation on ToolBox is not supported during the upgrade. 2) Only Android version ToolBox supports the upgrade feature. 3.4.2 Backup VS330 sensor supports configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRaWAN ®...

  • Page 11: Reset To Factory Default

    Note: Slide the template item to the left to edit or delete it. Click the template to edit the configurations. 3.4.3 Reset to Factory Default Please select one of following methods to reset device: Via Hardware: Hold on reset button inside the device more than 10s. Via ToolBox App: Go to Device >...

  • Page 12: Installation

    4. Installation Ceiling Mount: 1. Take off the mounting plate on the back of the device, drill 2 holes on the ceiling according to the mounting plate, then fix the wall plugs into the ceiling and fix the mounting plate to the wall plugs with screws.
  • Page 13 Installation Location: The installation height should be 2.5m to 3m.  The sensor part should face the front of toilet and the sensor should be installed horizontally to the  ceiling, sensor angle is set to 0°. Keep the center of device 10 to 20 cm away from the center of toilet. ...

  • Page 14: Milesight Iot Cloud Management

     5. Milesight IoT Cloud Management VS330 sensor can be managed by Milesight IoT Cloud platform. Milesight IoT Cloud is a comprehensive platform that provides multiple services including device remote management and data visualization with the easiest operation procedure. Please register a Milesight IoT Cloud account before operating following steps.

  • Page 15: Device Payload

    2. Go to My Device page and click + New Device. Fill in the SN of device and select associated gateway. 3. After the device is online in Milesight IoT Cloud, you can check the date via webpage or mobile App and create dashboard for it.

  • Page 16: Sensor Data

    Value 0101 (Software (V1.1) (Device Type) (Class A) version) 6.2 Sensor Data VS330 sensors report data according to reporting interval (1080 mins by default) or when occupancy status changes. Item Channel Type Description Battery Level UINT8, Unit: % The distance between sensor and person.
  • Page 17 by default. Channel Type Description 02(Set Collecting Interval) 2 Bytes, unit: s 03(Set Reporting Interval) 2 Bytes, unit: s 10 (Reboot) ff (Reserved) 70 (Set People Existing Height) 2 Bytes, unit: mm 71 (Set Test Mode) 1 Byte, 00: Disable; 01:Enable Example: 1.
