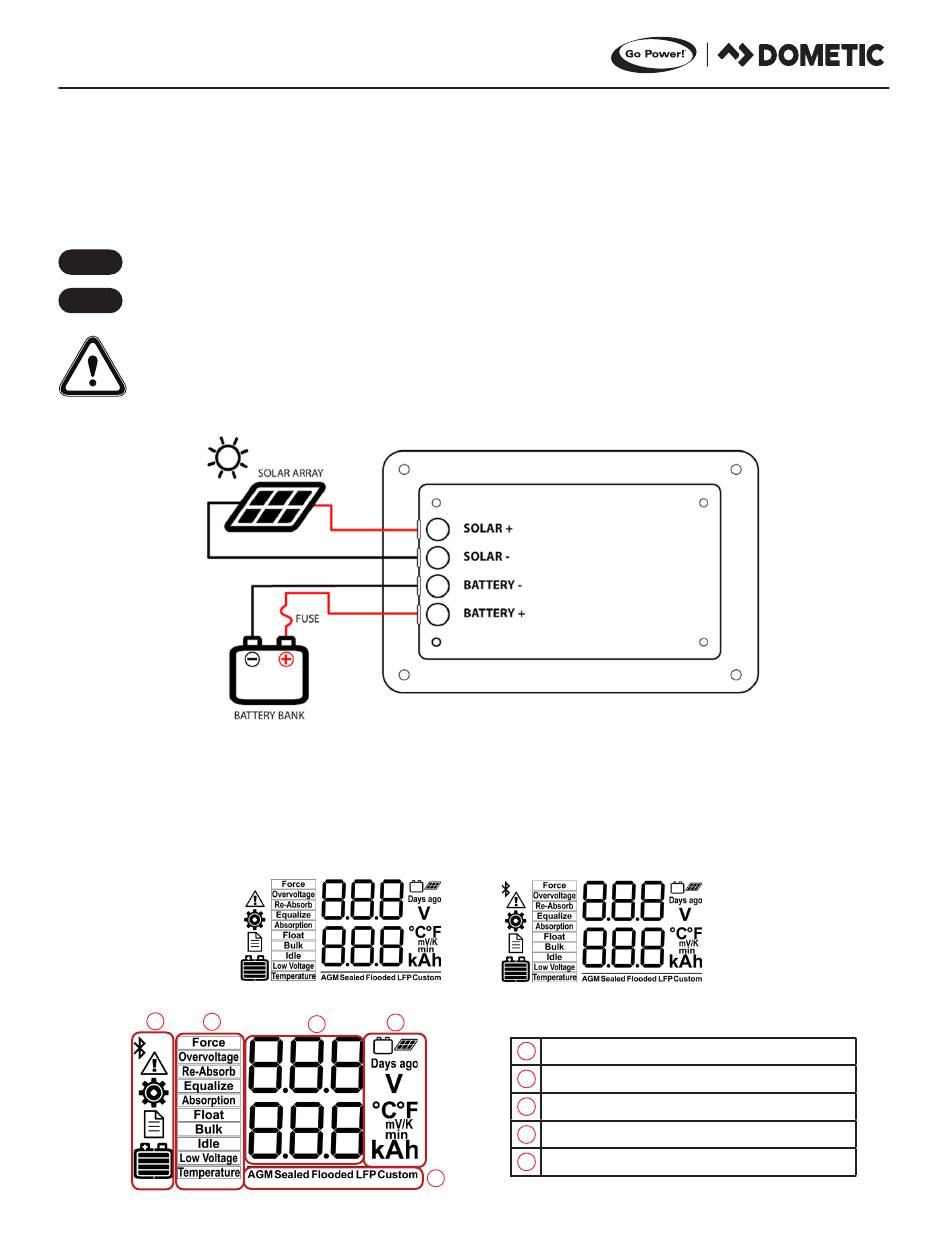

7. WIRING DIAGRAM

The GP-SB-PWM Maximum 37.5A rating is based on a 30-amp total maximum short circuit current rating (Isc) from the parallel solar
modules' nameplate ratings. The National Electric Code specifies the PV equipment/system rating to be 125% of the maximum Isc from
the PV module nameplate ratings (1.25 times 30 = 37.5A).
Use the wiring diagram (below) to connect your battery to the battery terminals on the solar controller. First, connect the battery to
the controller, and then connect the solar panel to the controller.
The fuse or breaker used should be no larger than 50 amps.
Note
The controller will not work unless there is a battery connected to the battery terminals with at least 9V.
Note
WARNING: When a ground fault is indicated, battery terminals and connected circuits might be ungrounded and hazardous.
WARNING: When the photovoltaic (solar) array is exposed to light, it supplies a DC voltage to this equipment.

8. USER INTERFACE

The GP-SB-PWM includes an LCD of FSTN type with 4 mechanical buttons that act as navigation keys to control the display.
GP-SB-PWM-10
1
2
GP-SB-PWM-30-BT
4
3
5
Icons Indicators
1
Parameters Identifiers
2
Value Indicators
3
Value Units
4
Battery Type Indicator
5
GP-SB-PWM-30-BT
