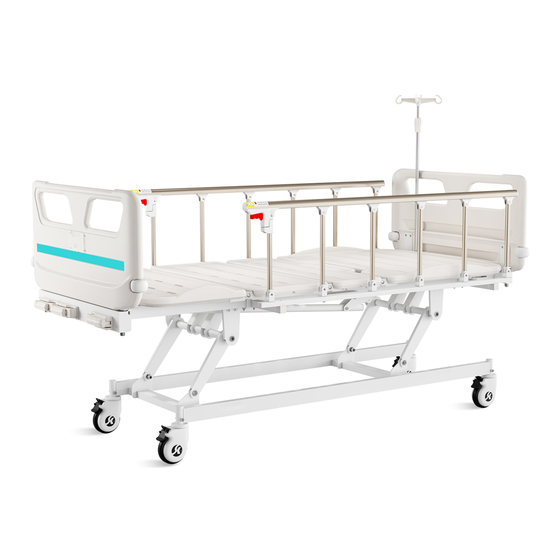

LETTO OSPEDALIERO MANUALE
MANUAL HOSPITAL BED
LIT MÉDICALISÉ MANUEL
CAMA DE HOSPITAL MANUAL
MANUALE D'USO – USER MANUAL – MODE D'EMPLOI – MANUAL DE USO
• È necessario segnalare qualsiasi incidente grave verificatosi in relazione al dispositivo medico da noi fornito al
fabbricante e all'autorità competente dello Stato membro in cui si ha sede.
• All serious accidents concerning the medical device supplied by us must be reported to the manufacturer and competent
authority of the member state where your registered office is located.
• Il est nécessaire de signaler tout accident grave survenu et lié au dispositif médical que nous avons livré au fabricant et
à l'autorité compétente de l'état membre où on a le siège social.
• Es necesario informar al fabricante y a la autoridad competente del Estado miembro en el que se encuentra la sede
sobre cualquier incidente grave que haya ocurrido en relación con el producto sanitario que le hemos suministrado.
V3K5C (Gima 44742)
Jiangsu Saikang Medical Equipment Co.,Ltd
No. 35 Lehong Road, Modern Agriculture Demonstration
Park, Zhangjiagang City, Jiangsu Province, China
Made in China
SUNGO Europe B.V.
Olympisch Stadion 24, 1076DE
Amsterdam, Netherlands
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com
85%
106kPa
%
-10˚C
70kPa
0%
+40˚C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V3K5C and is the answer not in the manual?

Questions and answers

Related Manuals for Gima V3K5C

Summary of Contents for Gima V3K5C

  • Page 1 • Es necesario informar al fabricante y a la autoridad competente del Estado miembro en el que se encuentra la sede sobre cualquier incidente grave que haya ocurrido en relación con el producto sanitario que le hemos suministrado. 106kPa +40˚C V3K5C (Gima 44742) -10˚C 70kPa Jiangsu Saikang Medical Equipment Co.,Ltd No.

  • Page 2: Manual Introduction

    Please carefully read this manual and strictly follow the steps before installing and using. We require all users to have the knowledge of user’s manual and all the cautions. • This manual is applicable to V3K5C manual hospital bed. It contains the installation method, operating instructions and maintenance check points. •...
  • Page 3 ENGLISH ENGLISH Hexagon M8×20 2115*890 screw platform 30-50 drainage 30-50 (plastic) hook V21 first 733*903/PP/bianco platform Flat washer GB/T 95-2002, Ø8 V21 Second 333*903/PP/white platform Hexagon socket M8×50 flat head screws V21 Third 373*903/PP/white platform V21 Fourth Pipe 154 Ø21.7x154 platform 473*903/PP/white Screw...
  • Page 4 ENGLISH ENGLISH CASTERS INSTALLATION Lay a protective pad and put the bed body upside down; Remove the screw as shown below, and use a 17-inch hex wrench. BED FRAME INSTALLATION Place the bed upright and install the bed plate. SIDE GUARDRAILS INSTALLATION Place the bed upright and install the guardrail;...
  • Page 5 ENGLISH ENGLISH IV POLE INSTALLATION Female part installation: Press the plastic hook (female part) down on the Ø16mm stainless steel pipe. Male part installation: Place the plastic hook (male part) directly above the female part in a cross shapes, and then aligns the buckles on the male part with the slots on the female part and press down.
  • Page 6 ENGLISH ENGLISH Back board 0-70±5° Tilt range Leg board 0-38±5° Weight Safe working load This bed is not suitable for patients weighing less than 40 kg. The maximum recommended patient weight is168 kg The safe working load is calculated as follows: Maximum patient weight 168kg Mattress...

  • Page 7: Bed-Maintenance

    ENGLISH ENGLISH USE METHOD OF CRANK HANDLES Back up and down: Pull out the manual crank handle and turn clock wisely to lift the back and turn counter clock wisely to lower the back. Leg up and down: Pull out manual crank handle and turn it counter clock wisely to lift the leg and turn it clock wisely to lower FAULTS EXCLUSION...

  • Page 8: Spare Part List

    ENGLISH ENGLISH Do not use smoking sterilizers, autoclaves, and do not use methyl (phenol) to clean the headboard and foot of the bed. It may cause corrosion, discoloration and deterioration. Note: When cleaning the bed or Aluminum alloy BKLLGH105943 10*1170 changing the bedclothes, please pay attention to the corners, edges and screws of the frame to prevent side rail scratches.

  • Page 9: After Sales Service

    Symbol picture Symbol description Atmospheric pressure limit Rotate this handle to control back plate angle GIMA WARRANTY TERMS The Gima 12-month standard B2B warranty applies. Rotate this handle to control knee plate angle Rotate this handle to control height adjustment...
