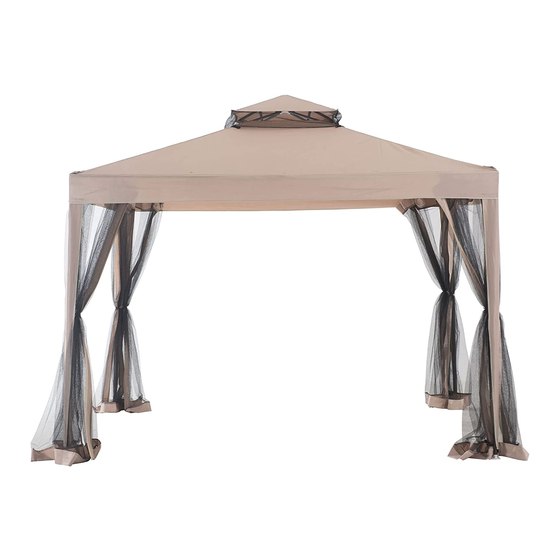

Sunjoy L-GZ098PST-1 Assembly Instructions

Table of Contents

Download this manual

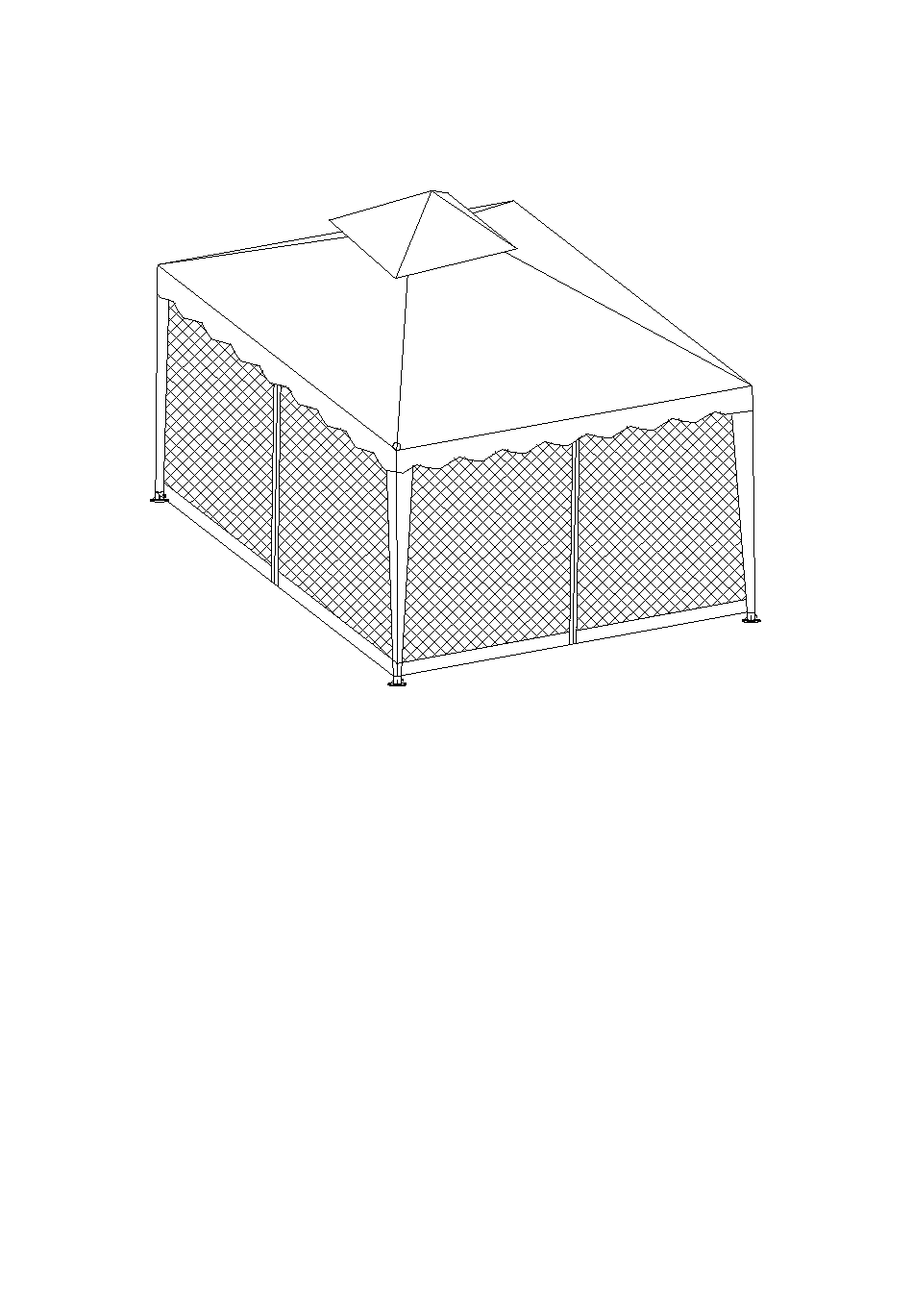

ASSEMBLY INSTRUCTION

ITEM # L-GZ098PST-1

SKU#：210017875

IMPORTANT:

Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to

assemble.

1. When installing and assembling your gazebo, it is recommended that 2 or more adults are involved.

2. Do not use the unit during an electrical storm, as there is a remote chance of getting struck by lightening.

3. Do not climb on top of the gazebo. Falling off the gazebo can result in serious injury, possibly even death.

4. Do not leave the gazebo assembled when there is a risk of high wind, as possible damage will occur to the structure.

5. Never barbecue under this gazebo or use lanterns that contain naked flames.

6. This package contains small items and plastic bags that should be kept away from children.

7 Ensure that all connectors & poles are firmly secured in position fully. It is important to do so before use so as to avoid

collapsing or damage to the item, which could result in injury.

8. WARNING: Keep all flame and heat sources away from this tent fabric. This tent is made with fabric that meets CPAI – 84

specifications for flame resistance. It is not fire proof. The fabric will burn if left in continuous contact with any flame source.

The application of any foreign substance to the tent fabric may render the flame-resistant properties ineffective.

Table of Contents

Need help?

Do you have a question about the L-GZ098PST-1 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION ITEM # L-GZ098PST-1 SKU#：210017875 IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to assemble. 1. When installing and assembling your gazebo, it is recommended that 2 or more adults are involved.
Page 2 Checking List Picture Parts Qty. Pole Pole Pole Pole Pole Pole Base plate Corner connector Top connector Rope peg Stake Plastic loop Rope Big top fabric Small top fabric Mosquito netting Assemble assistant tool require: Ladder and Hammer (not included in the packing)
Page 3 STEP1 STEP2 Fig.2 Fig.1 1. Insert 4# into 3# ,and then to connect with plastic 2. Connect 5＃ with 6＃, and then connect with corner connector B, as it is, connect into a square plastic connector C, as it is, connect into a top frame，such as Fig.1.
Page 4 CUSTOMER SERVICE Sunjoy Industries warrants to the original purchaser that this item is free from defects in workmanship and materials of your item provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
Page 5 If you are within or beyond the return policy that most stores have, and need tech. assistance or replacement parts, please call Sunjoy Industries at 1(866) 578-6569 from 8:30 am to 5:30 pm eastern standard time or e-mail Biglots@sunjoygroup.com or fax your parts replacement order form together with the purchase receipt to 1 (740) 283-3549 for assistance.
