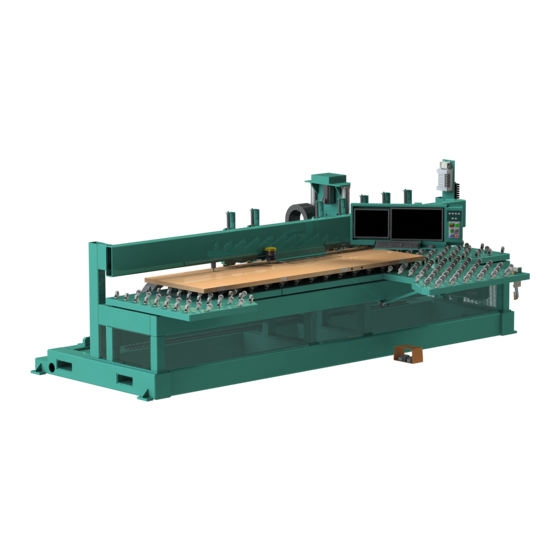

Kval EFX Quick Start

Power-UP
1. Verify the area of operation is clear
and safe to process doors
2. Ensure factory air is applied to all ma-
chines.
3. Verify that all E-Stop buttons are OUT
and Gates are CLOSED.
4. Turn the Electrical Disconnect to the ON
positions on each Electrical Cabinet in the
production line.
5. Turn the Control Circuit Switch to the ON
position. (Approximately 3 minute boot-
up)
6. Push the Machine Power Button.
7. All Tower Lights Should be Green
See reverse side for Tower Light Description
Load Door Job from KvalCam
Home the machine
(Important: Homing sets a
starting reference point for
the machine.)
1. Select the Libraries Tab at the upper left side of the
screen
2. Select the Door Job Library Tab at the upper center
screen
3. At the Door Job List double click the desired door job to
go to the Door Job screen
Verify Door Job
Verify the Door Job
specifications. Look for
validation errors.
Note: For more information about
Libraries, see the KvalCam Manual.
Add Doors to Queue
1. Enter the quantity of door to be processed in the Door
Qty box at the bottom of the screen
2. Select the Add to Queue Button
Process a Door
1. Move the door into the Machine.
2. Initiate the Stops. Press the Door
Stop Foot Pedal.
3. Position the door against the
stops and fence according to the
Operator's Screen.
4. Press the Edge Toggle Button to
choose door parameter to pro-
cess.
5. After the door is set, press the
Door Clamp Foot Pedal to secure
the door.
6. To begin the process, press the
Start Sequence Button.
7. Follow the instructions on the
screen. Position the door accord-
ingly until all processing is com-
Roll Door In
pleted.
8. After process is completed, press
the Blue Door Finished Button.
9. Roll the door out for next pro-
cessing.
Tips
* Torque the collet to recommended values, See the Service Manual for
torque values.
* Stay out of the Unsafe Zone when th cutting process begins. The ma-
chine will shut down
* For detailed information about the EFX or Edge-SS , see the Operation
Manual.
* If a door is not clamped correctly, toggle the clamp pedal until door is
secure.
Pop-Up Stops
Position Door
Toggle to Door Edge
Clamp Door
Start Sequence
Process Door
Select Door Finished
Roll Out Door
Edge SS/EFX Quick Ref rev 1
