Johnson Controls M4-XPM Installation Manual page 14

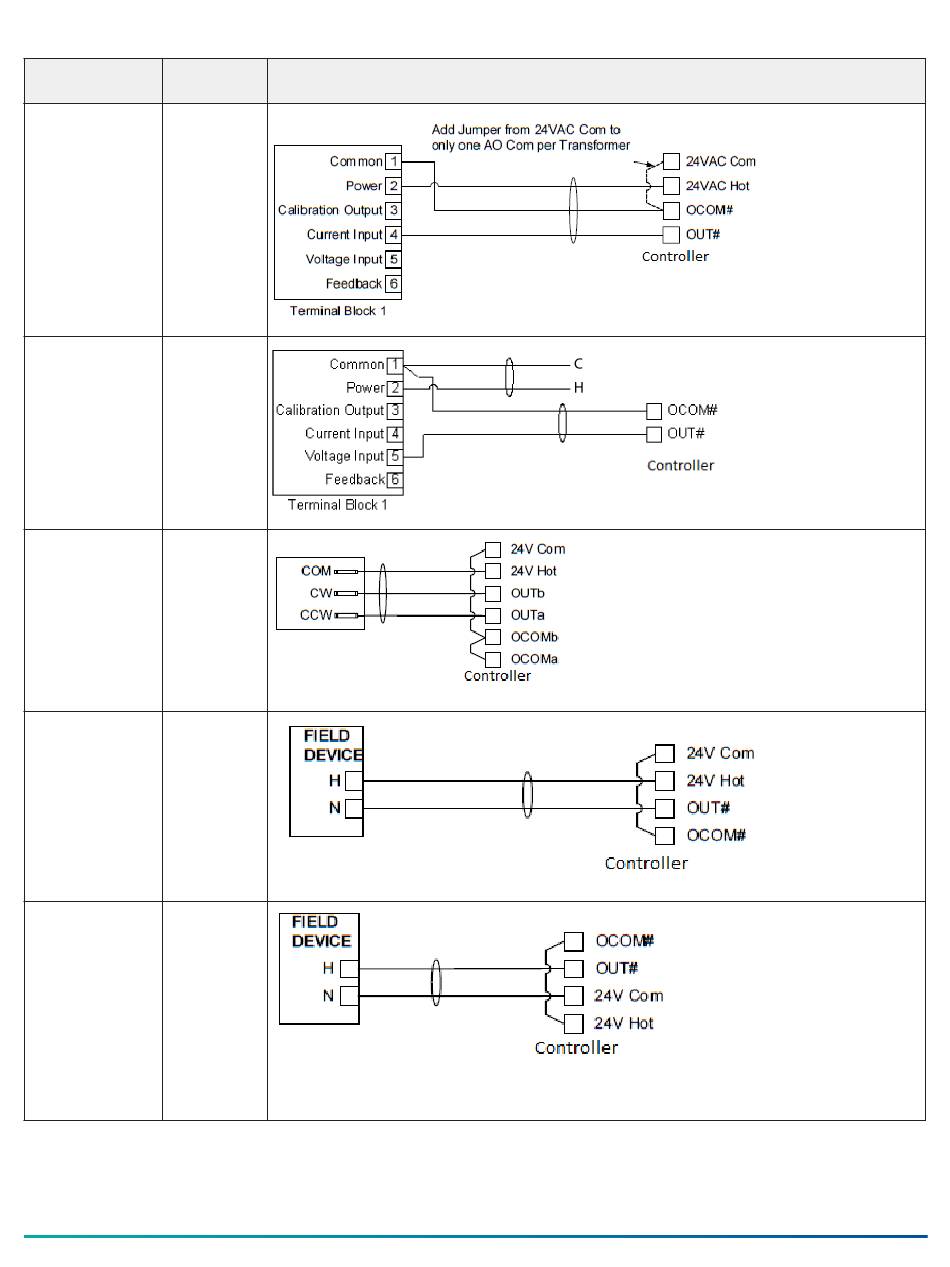

Table 6: Termination details
Type of field Type of Input/
device Output
4–20 mA Output to AO
Actuator
4–20 mA Output to AO
Actuator
Incremental BO
Control to
Actuator (Switch
Low, Externally
Sourced)
24 VAC Binary
BO
Output (Switch
Low, Externally
Sourced)
24 VAC Binary BO
Output (Switch
High, Externally
Sourced)
14 M4-XPM Expansion Modules Installation Guide
Termination diagrams
