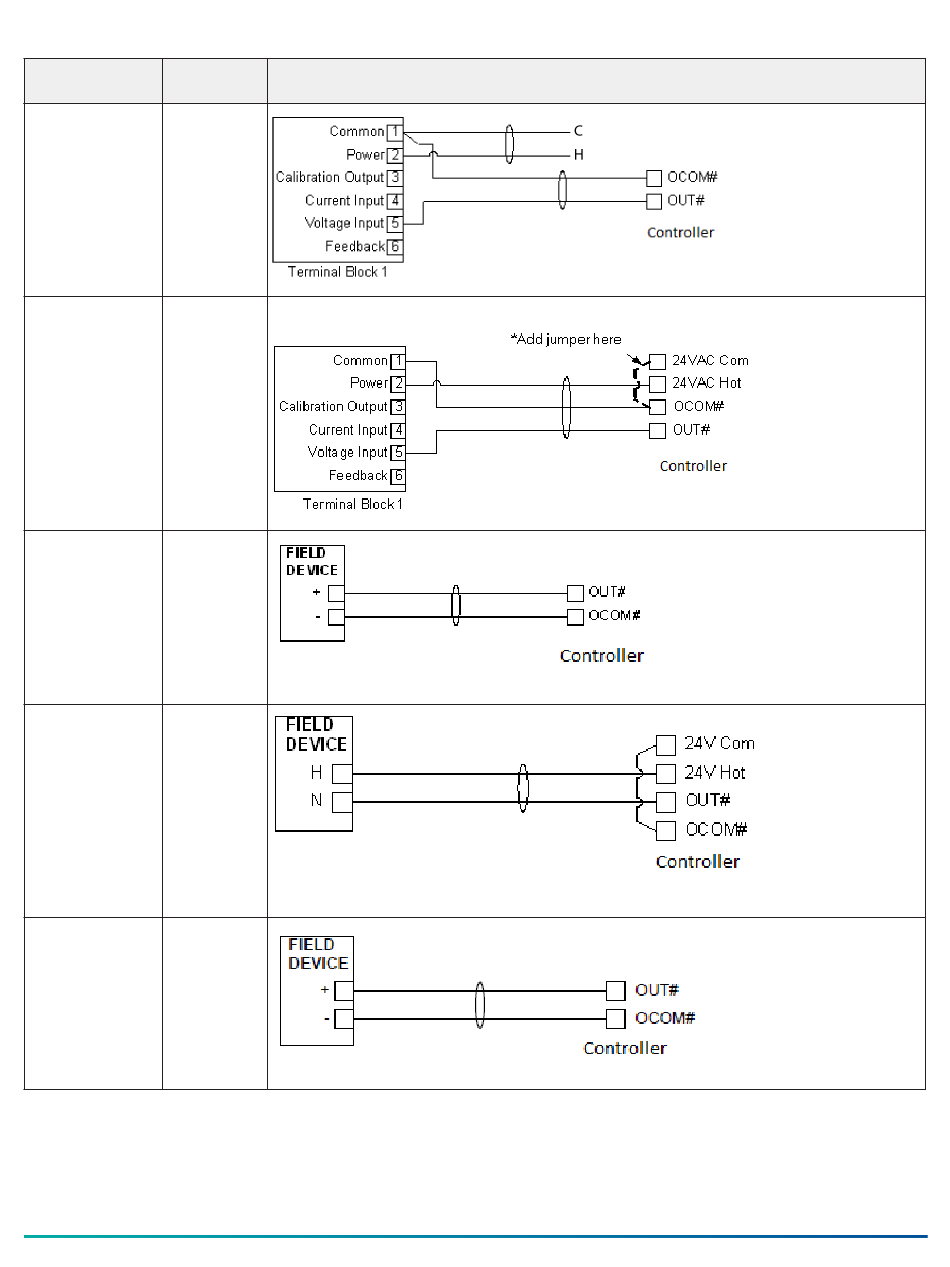

Table 6: Termination details
Type of field
Type of Input/
device
Output
0–10 VDC Output
AO
to Actuator
(External Source)
0–10 VDC Output
AO
to Actuator
(Internal Source)
Current Output
AO
24 VAC Triac
AO
Output (Switch
Low, External
Source)
Analog Output
AO
(Current)
Termination diagrams
M4-XPM Expansion Modules Installation Guide
13
