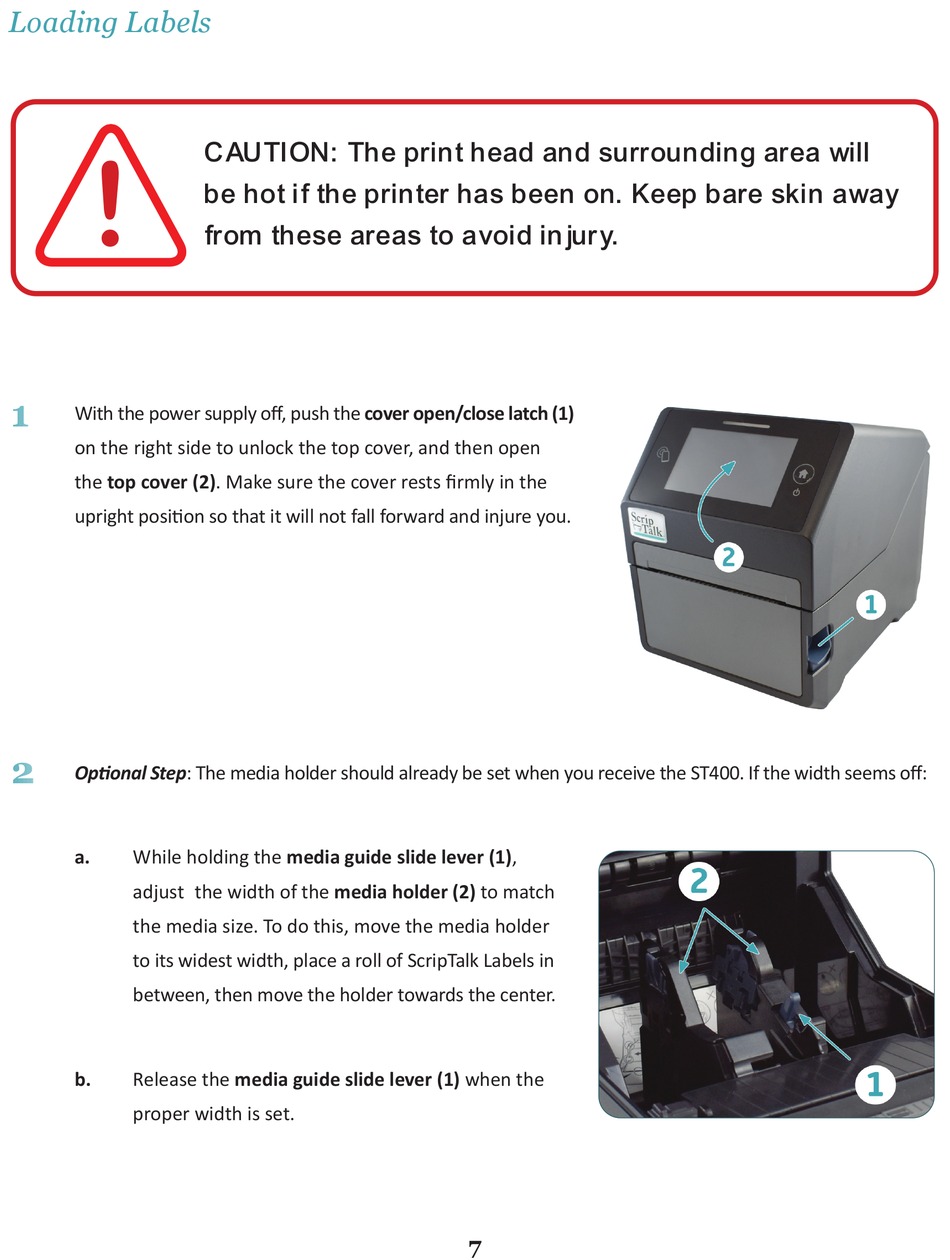

Loading Labels

!
1
With the power supply off, push the cover open/close latch (1)
on the right side to unlock the top cover, and then open
the top cover (2). Make sure the cover rests firmly in the
upright position so that it will not fall forward and injure you.
2
Optional Step: The media holder should already be set when you receive the ST400. If the width seems off:
a. While holding the media guide slide lever (1),
adjust the width of the media holder (2) to match
the media size. To do this, move the media holder
to its widest width, place a roll of ScripTalk Labels in
between, then move the holder towards the center.
b. Release the media guide slide lever (1) when the
proper width is set.
CAUTION: The print head and surrounding area will
be hot if the printer has been on. Keep bare skin away
from these areas to avoid injury.
7
