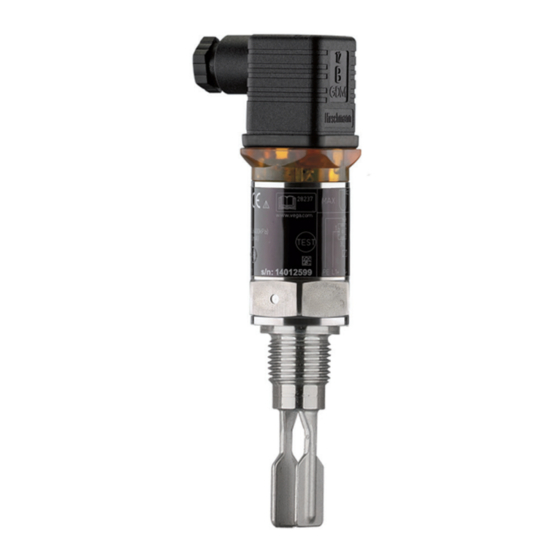

Vega VEGASWING 51 Operating Instructions Manual

Vibrating level switch for liquids
Hide thumbs Also See for VEGASWING 51:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
Vibrating level switch for liquids
VEGASWING 51
Transistor (PNP)
Document ID: 40552

Advertisement

Table of Contents
loading

Related Manuals for Vega VEGASWING 51

Summary of Contents for Vega VEGASWING 51

  • Page 1 Operating Instructions Vibrating level switch for liquids VEGASWING 51 Transistor (PNP) Document ID: 40552...

  • Page 2: Table Of Contents

    How to proceed if a repair is necessary ................22 Dismount..........................23 Dismounting steps......................23 Disposal ......................... 23 Supplement ..........................24 Technical data ........................ 24 Dimensions ........................28 Industrial property rights ....................31 Trademark ........................31 Editing status: 2023-01-30 VEGASWING 51 • Transistor (PNP)

  • Page 3: About This Document

    Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work.

  • Page 4: For Your Safety

    During work on and with the device, the required personal protective equipment must always be worn. Appropriate use The VEGASWING 51 is a sensor for point level detection. You can find detailed information about the area of application in chapter " Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.

  • Page 5: Safety Label On The Instrument

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter " Packaging, transport and storage" • Chapter " Disposal" VEGASWING 51 • Transistor (PNP)

  • Page 6: Product Description

    Principle of operation Application area VEGASWING 51 is a point level sensor with tuning fork for point level detection. It is designed for industrial use in all areas of process technology and can be used in liquids.

  • Page 7: Adjustment

    Voltage supply VEGASWING 51 is a compact instrument, i.e. it can be operated with- out external evaluation system. The integrated electronics evaluates the level signal and outputs a switching signal. With this switching signal, a connected device can be operated directly (e.g. a warning system, a pump etc.).

  • Page 8: Packaging, Transport And Storage

    Protected against solar radiation • Avoiding mechanical shock and vibration • Storage and transport Storage and transport temperature see chapter " Supplement - temperature Technical data - Ambient conditions" • Relative moisture 20 … 85 % VEGASWING 51 • Transistor (PNP)

  • Page 9: Mounting

    Switching point In general, VEGASWING 51 can be installed in any position. The instrument only has to be mounted in such a way that the tuning fork is at the height of the desired switching point.
  • Page 10 Use the recommended cables (see chapter " Connecting to power supply") and tighten the cable gland. You can give your VEGASWING 51 additional protection against moisture penetration by leading the connection cable downward in front of the cable gland. Rain and condensation water can thus drain off. This applies mainly to outdoor mounting as well as installation in...

  • Page 11: Mounting Instructions

    Welded socket For threaded versions of VEGASWING 51 in combination with a mounting boss with O-ring in front and welding marking. VEGASWING 51 with thread sizes ½", ¾" and 1" have a defined thread. This means that every VEGASWING 51 is in the same posi- tion after being screwed in. Remove therefore the supplied flat seal from the thread of VEGASWING 51. This flat seal is not required when using a welded socket with front-flush seal. Before welding, unscrew VEGASWING 51 and remove the rubber ring from the welded socket.
  • Page 12 For this reason, mount VEGASWING 51 at a position in the vessel where no disturbances, e.g. from filling openings, agitators, etc., can occur. Product flow To make sure the tuning fork of VEGASWING 51 generates as little resistance as possible to product flow, mount the sensor so that the surfaces are parallel to the product movement. VEGASWING 51 • Transistor (PNP)

  • Page 13: Connecting To Power Supply

    Make sure that the cable used has the required temperature resist- ance and fire safety for max. occurring ambient temperature When mounting outdoors, on cooled vessels or in moist areas in which cleaning is made with steam or high pressure, the sealing of the cable gland is very important. VEGASWING 51 • Transistor (PNP)

  • Page 14: Wiring Plan

    IP66/IP67 or IP68 (0.2 bar). Valve plug ISO 4400 For this plug version, standard cable with round wire cross-section can be used. Cable diameter 4.5 … 7 mm, protection IP65. VEGASWING 51 • Transistor (PNP)
  • Page 15 Cable diameter 5.5 … 8 mm, protection IP67. Fig. 9: Connection, valve plug ISO 4400 with IDC crimping technology Compression nut Cable Seal ring Terminal insert Plug housing VEGASWING 51 • Transistor (PNP)
  • Page 16 7. Connect the wire ends to the screw terminals according to the wiring plan Fig. 11: Connection to the screw terminals Cable gland Cover Plug housing Plug insert Plug seal 8. Snap the plug insert into the plug housing and insert the sensor seal VEGASWING 51 • Transistor (PNP)
  • Page 17 9. Tighten the screws on the strain relief and cable entry 10. Hook in the cover and push onto the plug connection, tighten cover screw 11. Plug the plug insert with seal to VEGASWING 51 and tighten the screw Transistor output For connection to binary inputs of a PLC.
  • Page 18 5 Connecting to power supply Min. Max. Fig. 13: Wiring plan (housing), transistor output with M12 x 1 plug connection Brown White Blue Black Load resistance (contactor, relay, etc.) VEGASWING 51 • Transistor (PNP)

  • Page 19: Setup

    Note that the downstream devices are activated during the simulation. If VEGASWING 51 does not switch over after several tests with the test magnet, you have to check the plug connection and the con- nection cable and try it again. If there is no switching function, the electronics will be defective. In this case you have to exchange the...

  • Page 20: Function Table

    Control lamp Control lamp Yellow - cov- Green - voltage Red - fault sig- erage indication Max. mode of op- closed eration Max. mode of op- open eration Min. mode of op- closed eration Min. mode of op- open eration Fault open VEGASWING 51 • Transistor (PNP)

  • Page 21: Maintenance And Fault Rectification

    24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is manned 7 days a week round-the-clock. Since we offer this service worldwide, the support is only available in the English language. The service is free, only standard call charges are incurred.

  • Page 22: How To Proceed If A Repair Is Necessary

    Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Ask the agency serving you to get the address for the return ship- ment. You can find the agency on our homepage. VEGASWING 51 • Transistor (PNP)

  • Page 23: Dismount

    If personal data is stored on the old device to be disposed of, delete it before disposal. If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGASWING 51 • Transistor (PNP)

  • Page 24: Supplement

    Ʋ Clamp (DIN 32676, ISO 2852) 1", 1½", 2" Ʋ Slotted nut DN 25 PN 40, DN 40 PN 40, DN 50 PN 25 Ʋ SMS DN 38 PN 6 Ʋ Hygienic fitting F 40 PN 25 VEGASWING 51 • Transistor (PNP)
  • Page 25 (212 °F) Fig. 15: Dependendency ambient temperature to process temperature Ambient temperature in °C (°F) Process temperature in °C (°F) Process temperature - High temperature -40 … +150 °C (-40 … +302 °F) version (option) VEGASWING 51 • Transistor (PNP)
  • Page 26 Switching voltage < 34 V DC Blocking current < 10 µA Mode Ʋ Min./Max. Changeover by electronic connection Ʋ Max. Overflow protection Ʋ Min. Dry run protection Voltage supply Operating voltage 9.6 … 35 V DC VEGASWING 51 • Transistor (PNP)
  • Page 27 For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded by entering the serial number of your instrument into the search field under www.vega.com as well as in the general download area. VEGASWING 51 • Transistor (PNP)

  • Page 28: Dimensions

    9 Supplement Dimensions VEGASWING 51, standard version - thread 42 mm 36 mm (1.65") (1.42") 28 mm 27 mm (1.1") (1.06") M12 x 1 ø 31,7 mm 70 mm (1.25") SW 32 mm (2.76") (1.26") 53mm (2.07") G1, R1 1NPT ø...
  • Page 29 9 Supplement VEGASWING 51, high temperature version 36 mm (1.42") 27 mm (1.06") 42 mm (1.65") 28 mm (1.1") M12 x 1 ø 31,7 mm (1.25") 70 mm SW 32 mm (2.76") (1.26") 53mm (2.07") G1, R1 1NPT ø 21,3 mm ø...
  • Page 30 DN 40 PN 40: 103 mm (4.06 in) DN 50 PN 25: 104 mm (4.09 in) L3 Length with SMS DN 38 PN 6: 94 mm (3.70 in) L4 Length with aseptic fitting 134 mm (5.28 in) Keep in mind that the total length is extended by the plug connection. VEGASWING 51 • Transistor (PNP)

  • Page 31: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
  • Page 32 Notes VEGASWING 51 • Transistor (PNP)
  • Page 33 Notes VEGASWING 51 • Transistor (PNP)
  • Page 34 Notes VEGASWING 51 • Transistor (PNP)
  • Page 35 Notes VEGASWING 51 • Transistor (PNP)
  • Page 36 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2023 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
