Trox Technik CAK Installation Manual

Product overview
2
1

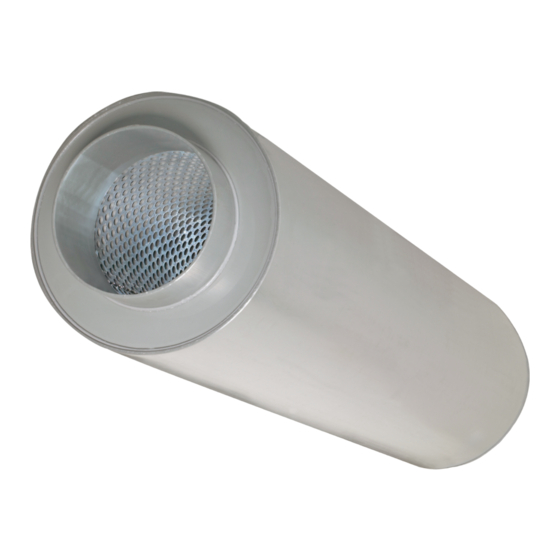

Fig. 1: Schematic illustration, CAK
1 Casing of the silencer
2 Spigot
Important notes
Safety
Correct use
Circular silencers are used to reduce noise in the
circular ducts of ventilation and air conditioning sys-
tems within closed rooms.
For the reduction of air-regenerated noise of air
terminal units and mechanical self-powered control-
lers, etc.
Do not use circular silencers in extract air systems
in commercial kitchens unless the extract air has
been cleaned as much as possible with high-effi-
ciency aerosol separators; see VDI 2052.
Installation manual
Circular silencer
CAK
Circular silencer CAK
GB/en
The CAK type is particularly suitable for ventilation
systems with chemically contaminated extract air,
e.g., from fume cupboards.
Incorrect use
WARNING!
Danger of injury or risk of damage to property
due to incorrect use
Incorrect use of the circular silencer can lead to
dangerous situations.
Never use the circular silencer:
– outdoors without sufficient protection against
the effects of weather
– in process air systems
Modifying the unit or using replacement parts that
have not been approved by TROX is not permitted.
Staff
Qualification
The work described in this manual has to be car-
ried out by individuals with the qualification, training,
knowledge and experience described below:
Specialized personnel
Specialised personnel are personnel, who due to
their specialized training, skills, and experience,
as well as knowledge of the applicable standards
and regulations, are capable of executing the tasks
assigned to them, and of recognizing possible haz-
ards and avoiding them on their own.
Personal protective equipment
Personal protective equipment is equipment that
protects the user against health or safety risks at
work.
TROX GmbH
Heinrich-Trox-Platz
47504 Neukirchen-Vluyn, Ger-
many
Germany
+49 (0) 2845 202-0
+49 (0) 2845 202-265
E-mail: trox@trox.de
www.troxtechnik.com
