Product overview

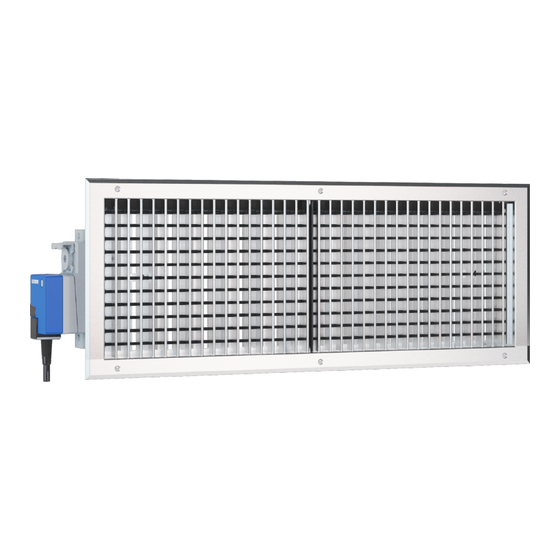

Fig. 1: Schematic illustration TR2MOVE
1
Front border
2
Countersunk holes
3
Attachment (AG)
Important notes
Information on the installation manual
This manual enables operating or service personnel
to correctly install the product described below and
to use it safely and efficiently.
It is essential that these individuals read and fully
understand this manual before starting any work.
The basic prerequisite for safe working is to comply
with the safety notes and all instructions in this
manual.
The local regulations for health and safety at work
and general safety regulations also apply.
Installation manual
Air diffusers
Ventilation grille TR2MOVE
Air diffusers Ventilation grille TR2MOVE
GB/en
Other applicable documentation
In addition to these instructions, the following docu-
ments must be observed:
Product data sheets
Limitation of liability
The information in this manual has been compiled
with reference to the applicable standards and
guidelines, the state of the art, and our expertise
and experience of many years.
The manufacturer does not accept any liability for
damages resulting from:
Non-compliance with this manual
Incorrect use
Operation or handling by untrained individuals
Unauthorised modifications
TROX Hesco Schweiz AG
Neuhofstrasse 4
8630 Rüti ZH
Switzerland
Phone: +41 55 250 71 11
Fax: +41 55 250 73 10
E-Mail: trox-
hesco@troxgroup.com
http://www.troxhesco.ch
1
Advertisement
Related Manuals for Trox Technik TR2MOVE
Summary of Contents for Trox Technik TR2MOVE
- Page 1 Air diffusers Fax: +41 55 250 73 10 E-Mail: trox- hesco@troxgroup.com Ventilation grille TR2MOVE http://www.troxhesco.ch Product overview Fig. 1: Schematic illustration TR2MOVE Front border Countersunk holes Attachment (AG) Other applicable documentation Important notes In addition to these instructions, the following docu-...
- Page 2 In case of transport damage or incomplete delivery, inform the forwarding agent and the supplier immediately. After inspection of the goods, put the product back into its packaging to protect it from dust and contamination. Air diffusers Ventilation grille TR2MOVE...
- Page 3 Protect the product from humidity, dust and of dust or humidity. contamination Storage temperature: -10 °C to 90 °C relative humidity: 80 % maximum, no conden- sation Air diffusers Ventilation grille TR2MOVE...
- Page 4 (screw connection) to prevent the device from falling down. Fixing types Fig. 2: Fixing types Fastening -0: Fastening Standard countersunk hole. Quantity countersunk holes Length B [mm] Height H [mm] 1025 1225 Air diffusers Ventilation grille TR2MOVE...
- Page 5 Technical data Technical data Dimensions Fig. 3: Installation opening no entry Fig. 4: Installation opening TR2MOVE-R/RA-BL Air diffusers Ventilation grille TR2MOVE...
- Page 6 Technical data Fig. 5: Installation opening TR2MOVE-BS/BL Fig. 6: Fixings Fixing countersunk hole Air diffusers Ventilation grille TR2MOVE...
- Page 7 (B-10) x (H-15) (B-10) x (H-15) TR2MOVE Type Wall thickness X [mm] Countersunk hole max. 15 Fig. 7: Screw hole pitch Screw hole pitch TR2MOVE Length B [mm] 2x283.5 2x383.5 1025 1050 2x483.5 1225 1250 1167 2x583.5 Air diffusers Ventilation grille TR2MOVE...
- Page 8 Screw hole pitch TR2MOVE Height H [mm] TR2MOVE max. weight grille [kg] 1025 1225 TR2MOVE max. weight of ball impact protection without grille [kg] TR2MOVE weights attachment AG without grille [kg] 1025 1225 TR2MOVE weights attachment AS without grille [kg]...
- Page 9 Technical data Dimensions Fig. 8: TR2MOVE-SELF TR2MOVE-SELF Installation depth temperature indicator S [mm] Construction H [mm] S [mm] TR2MOVE-SELF TR2MOVE-R/-RA-SELF Air diffusers Ventilation grille TR2MOVE...
- Page 10 Technical data TR2MOVE-SELF Installation depths T [mm] TR2MOVE-R/-RA- TR2MOVE-SELF- TR2MOVE-R/-RA- Attachment TR2MOVE-SELF SELF BS/BL SELF-BL without attachment TR2MOVE-SELF installation depths T [mm] with attachment SAS Nominal width B TR2MOVE-R/-RA- TR2MOVE-SELF- TR2MOVE-R/-RA- TR2MOVE-SELF [mm] SELF BS/BL SELF-BL max. 170 max. 190 1025 max.
- Page 11 Technical data TR2MOVE-VAR Installation depths T [mm] TR2MOVE-VAR TR2MOVE-R/-RA- TR2MOVE-VAR- TR2MOVE-R/-RA- Attachment H [mm] BS/BL VAR-BL without attachment TR2MOVE-VAR installation depths T [mm] with attachment SAS Nominal width B TR2MOVE-VAR TR2MOVE-R/-RA- TR2MOVE-VAR- TR2MOVE-R/-RA- H [mm] [mm] BS/BL VAR-BL 1025 1225 Fig.
- Page 12 Volume flow rate balancing Carefully turn the screw in (clockwise) and out (anti-clockwise) to adjust or fasten the hit and miss damper. Tighten the screw with max. 1.0 Nm AG: manual adjustment AS/SAS with screwdriver Air diffusers Ventilation grille TR2MOVE...
- Page 13 Fig. 13: Attachments -AS Damper element with hit and miss damper, adjust- able, secured with a locking screw Air pattern Setting the air direction on site using the TR2 key. Fig. 14: Setting the air direction Air diffusers Ventilation grille TR2MOVE...
- Page 14 Electronics Electronic heavy. Use lifting gear if necessary. actuator waste recy- – Secure components to prevent them from cling falling or toppling. EWC European Waste Catalogue – When in doubt, contact the manufacturer. Air diffusers Ventilation grille TR2MOVE...
