Product overview

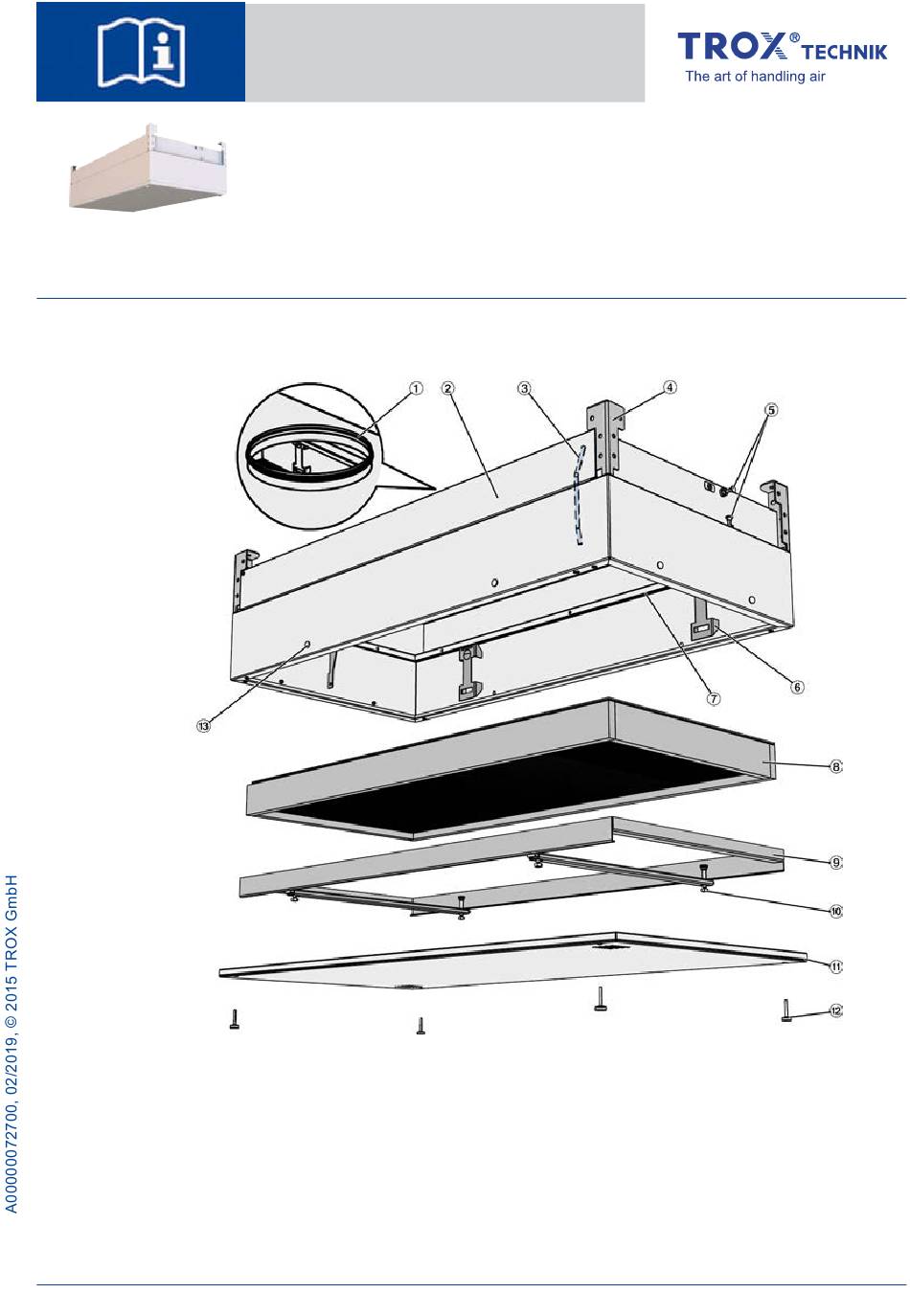

Fig. 1: Schematic illustration, e. g. TFM
①
Spigot with lip seal
②
Casing
③
Internal measuring tube
④
Suspension
⑤
Pressure measurement point
⑥
Bracket for tensioning frame
⑦
Test groove
Installation and maintenance
manual
TFM
Particulate filter modules for ceilings
TFM Particulate filter modules for ceilings
GB/en
⑧
Filter
⑨
Clamping frame for the filter element
⑩
Clamping screw
⑪
Diffuser face
⑫
Screw fixing diffuser face
⑬
Sealing plug for connecting holes
TROX GmbH
Heinrich-Trox-Platz
47504 Neukirchen-Vluyn,
Ger-many
Germany
Phone: +49 (0) 2845 2020
Fax: +49 (0) 2845 202265 E-
mail: trox@trox.de Internet:
http://www.trox-technik.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Trox Technik TFM
Summary of Contents for Trox Technik TFM
- Page 1 Ger-many Germany Phone: +49 (0) 2845 2020 Fax: +49 (0) 2845 202265 E- mail: trox@trox.de Internet: Particulate filter modules for ceilings http://www.trox-technik.com Product overview Fig. 1: Schematic illustration, e. g. TFM ① ⑧ Spigot with lip seal Filter ② ⑨ Casing Clamping frame for the filter element ③...
-
Page 2: Important Notes
The TFM can be used in the supply air and extract The obligations agreed in the order, the general air systems of ventilation and air conditioning sys- terms and conditions, the manufacturer's terms of tems. -
Page 3: Protective Gloves
Industrial safety helmets protect the head from falling objects, suspended loads, and the effects of striking the head against stationary objects. Light respiratory protection Light respiratory protection is used to provide pro- tection from harmful dusts. TFM Particulate filter modules for ceilings... -
Page 4: Supply Package, Transport And Storage
Protect the unit from the effects of weather Protect the unit from humidity, dust and con- tamination Storage temperature: -10 °C to 50 °C. Relative humidity: 95 % max., no condensation TFM Particulate filter modules for ceilings... - Page 5 If possible, install the device before fixing the ceiling tiles; if this is not possible, remove the adjacent ceiling tiles. The TFM can weigh up to 35 kg, depending on the construction. Use only approved and adequately sized suspension systems. Fixing material is not included in the supply package.
- Page 6 ③ Sealing plug ② Seal ③ Diffuser face TFM modules can be connected underneath each ④ Plasterboard ceiling other to a ceiling tile For this, the modules are screwed with screw connections, accessories of assembly kit article no. A00000067468. Note: At suspension points where several ceiling modules (2...4) are connected with one another,...
-
Page 7: Connecting The Ductwork
Connecting the ductwork Connecting the ductwork Inserting filters Type TFM particulate filter modules for ceilings are Do not unpack filter elements until you are supplied with different spigots as follows: ready to install them. Do not touch the filter, hold it by the edge only. - Page 8 9. Installing the diffuser face. Installing the diffuser face Fig. 6: TFM assembly diffuser face Set the diffuser face (Fig. 6/1) onto the filter casing and fix it with the knurled screws (Fig. 6/2).
-
Page 9: Maintenance
Close the measuring tube by inserting the cheese head screw. Re-install the diffuser face. Fig. 7: Removing the diffuser face Unscrew the knurled screws (Fig. 7/2) and remove diffuser face (Fig. 7/1). TFM Particulate filter modules for ceilings... - Page 10 Plus (+) - to the internal measuring tube (Fig. 8/1) Minus (–) - Don't connect; the differential pressure is measured against the room pres- sure. Re-attach the plugs (Fig. 10/3) after the measure- ment. TFM Particulate filter modules for ceilings...
- Page 11 To order filters go to: www.troxtechnik.com Ä ‘Disposal ’ and dispose of it properly, see on page 11. If the filter casing is dirty, clean and disinfect Ä ‘Cleaning the filter casing’ on page 12. TFM Particulate filter modules for ceilings...
- Page 12 Sticky dirt or contamination may be removed with a commercial, non-aggressive cleaning agent. Cleaning agents that contain chlorine must not be used. Once you have completed cleaning, disinfect the filter casing and any connecting rooms. TFM Particulate filter modules for ceilings...
