- Page 2 Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Abetechs GmbH (Grundig Security) reserves the right to change the contents of this document without prior notice. Design and specifications are subject to change without prior notice.
- Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open source software licenses. For detailed information about the...
- Page 4 The appearance of the products, functions and firmware or software upgrade may differ from this manual. GRUNDIG reserves the right to perform needed changes without prior notice. Safety Instructions Make sure that you only use the power adapter that is specified in the specifications sheet of the product.
- Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
- Page 6 Do not install the product near heat sources, like radiators or other equipment that produces some heat. If the product is not classified by any IP class, do not install the product in very cold or hot temperatures (please refer to the working temperature specified in the specification sheet of the product), dusty, dirty or damp environment.
- Page 7 Special Installation Instructions for IP Cameras Make sure that the latest firmware is installed on the IP Device. You may get the latest firmware from techsupport@grundig-security.com.
-
Page 8: Table Of Contents
3.1 Wiring ................18 3.2 Activating the Camera ........... 19 3.2.1 Activation via Web Browser ........ 19 Activation via Grundig IP-Finder Tool ....20 3.3 Modifying the IP Address ..........22 4 Accessing via Web Browser ............24 4.1 Initializing the Memory Card ......... 26... -
Page 9: Appearance Description

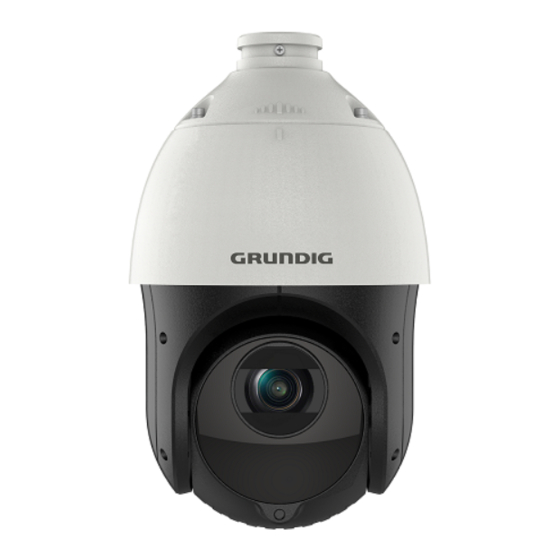

1 Appearance Description 1.1 IR Speed Dome Overview Figure 1-1 Overview of the IR Speed Dome The cable interfaces of the speed dome are shown in Figure 1-2. The cables are distinguished by different colors. Refer to the labels attached on the cables for identification. Notes: Make sure the speed dome is power-off before you connect the cables. - Page 10 Figure 1-2 Cable Interfaces Table 1-1 SD-card slot Power connector Network Interface Audio Interface RS485 Interface 7 & 8 Alarm Interface.
-
Page 11: Alarm Output
1.2 Alarm Output Alarm output is shown in Figure 1-3. Output DC 30V JQC-3FG Relay Power Supply (10A 250VAC) Direct load OUT (n) Relay Output ~220V AC Relay Output Zero OUT (n) OUT (n) FireWire Line OUT (n) Figure 1-3 Alarm Output... -
Page 12: Installation
2 Installation Before you start: ⚫ Do not drag the speed dome with its waterproof cables; otherwise the waterproof performance could be affected. Figure 2-1 Do Not Drag the Cables 2.1 SD-card installation This camera supports memory card installation. Please follow the steps below to install the memory card: Steps:... -
Page 13: Camera Installation
Loosen the 4 screws as shown below. Figure 2-2 installing SD-card Remover the cover. Insert the memory card into the designated memory card slot. 2.2 Camera installation Before you start: The mounts are not included with the camera and must be purchased separately. -
Page 14: Wall Mounting
2.2.1 Wall mounting Steps: 1. Remove the wall bracket and the included mounting accessories from the packaging. Figure 2-3 Wall mount bracket 2. Drill four holes in the wall at the same distance as the drill holes on the wall bracket and insert a dowel into each drill hole. Figure 2-4 Install the bracket 3. - Page 15 Figure 2-5 Safety rope 4. Route the camera cables through the wall bracket. 5. Loosen the two screws on the wall bracket for the camera mount. 6. Insert the camera into the wall bracket's camera mount and rotate clockwise until it clicks into place. Tighten the two screws again until the camera is secure.
-
Page 16: Ceiling Mount
Figure 2-6 Fix camera 2.2.2 Ceiling mount Note: The thickness of the ceiling should be between 5mm and 40mm. The ceiling should be able to support four times the weight of the camera including accessories. If the camera is attached to a wooden ceiling, self-tapping screws can be used. - Page 17 If the camera is mounted on a stone or concrete ceiling, holes must be drilled in the ceiling and anchors must be used. Steps: 1. Drill four holes in the ceiling at the same distance as the drill holes on the ceiling bracket and insert a dowel into each drill hole. 2.
-
Page 18: Setting The Ip-Camera Over The Lan
3 Setting the IP-Camera over the LAN Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, contact your dealer or the nearest service center for help. -
Page 19: Activating The Camera
Activation via Web Browser and Activation via Grundig IP-Finder Tool are supported. We will take activation via Grundig IP-Finder Tool and Activation via Web Browser as examples to introduce the camera activation. -
Page 20: Activation Via Grundig Ip-Finder Tool
5. Click OK to save the password and enter the live view interface. Activation via Grundig IP-Finder Tool The Grundig IP-Finder Tool is used for detecting the online device and activating the camera. Get the Grundig Finder Tool from the official website and install the software according to the prompts. - Page 21 Grundig IP-Finder Interface Note: The software supports activating the camera in batch. Refer to the user manual of Grundig IP-Finder for details. 3. Create and input the new password in the password field, and confirm the password. STRONG PASSWORD RECOMMENDED– We highly...
-
Page 22: Modifying The Ip Address
To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your Use the Grundig IP-Finder Tool to search and change the IP address of the device. We take modifying the IP Address via Grundig IP-Finder as an example to introduce the IP address modification. - Page 23 Modify the IP Address 4. Input the admin password and click Update to activate your IP address modification. The batch IP address modification is supported by the Grundig IP- Finder. Please refer to the User Manual of Grundig IP-Finder for details.
-
Page 24: Accessing Via Web Browser
4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8 and above version, Apple Safari 16 and above version, Mozilla Firefox 52.0 and above version and Google Chrome 57.0 and above version. - Page 25 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- Note: You may have to close the web browser to finish the installation of the plug-in. Download Plug-in 6.
-
Page 26: Initializing The Memory Card
Initializing the Memory Card Steps: Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
