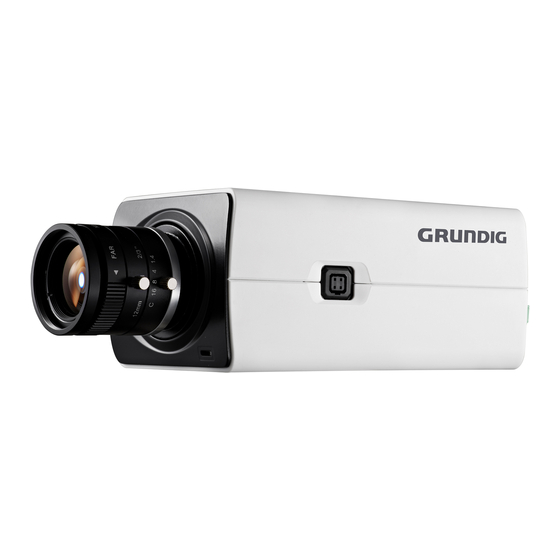

- Page 1 Quick Start Guide GD-CI-AP2605B GD-CI-BT2505B grundig-security.com...
- Page 2 Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Abetechs GmbH (Grundig Security) reserves the right to change the contents of this document without prior notice. Design and specifications are subject to change without prior notice.
- Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open source software licenses. For detailed information about the...
- Page 4 You may obtain the complete corresponding open source part of a specific product from us for a period of three years after our last shipment of this product by sending an email to: info@grundig- security.com Safety and Installation Instructions...
- Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
- Page 6 Installation Instructions It is necessary to fix the device firmly if the product is installed on a wall or ceiling. Do not install the product on surfaces or in places that are vibrating. Do not install the product near radiation sources. Do not install the product near heat sources, like radiators or other equipment that produces some heat.
- Page 7 Special Installation Instructions for IP Cameras Make sure that the latest firmware is installed on the IP Device. You may get the latest firmware from www.grundig-security.com website or from techsupport@grundig-security.com.
-
Page 8: Table Of Contents
3.1 Wiring ................21 3.2 Activating the Camera ........... 22 Activation via Web Browser ........ 22 Activation via Grundig IP-Finder Software ..24 3.3 Modifying the IP Address ..........25 4 Accessing via Web Browser ............28 4.1 Initializing the Memory Card ......... 30... -
Page 9: Appearance
1 Appearance The overview and the interfaces on the rear panels are shown below: Overview... - Page 10 Interfaces on the Rear Panel Description Description Description Lens Mount ¼-20 UNC Screw Hole Auto-iris Interface LAN (PoE) Power Supply Interface Reset microSD Card Slot Video Out Grounding Alarm In/Alarm Out/ Audio Out...
- Page 11 Description Description RS-485 Audio In Power Indicator Notes: To reset the camera default parameters, you need to press and hold the RESET button and power on the camera. After power on the camera, you must still press and hold the Reset button for about 20 seconds.
- Page 12 Pins DC-driven Damp- Damp+ Drive+ Drive- Power, Video and GND pins are used when the auto-iris is driven by video; Damp+, Damp-, Drive+ and Drive- pins are used when the auto-iris is driven by DC.
-
Page 13: Installation
2 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● The standard power supply is 12VDC or 24VAC, please make sure your power supply matches with your camera. ●... - Page 14 Installing the microSD Card 2. (Optional) Push the inserted microSD card slightly to get it sprung by its built-in springing to remove it.
-
Page 15: Lens Installation
2.2 Lens Installation The lens installation steps of the type I and type II are similar. Here take the steps of the type I for an example. 1. Fit the lens (not supplied) to the camera and rotate it clockwise to get it tightened. -
Page 16: Ceiling Mounting
2.3 Ceiling Mounting Type I and type II both support the ceiling mounting and the installation steps are similar. Here take the steps of the type I for an example. Steps: 1. Install the ceiling mounting bracket to the ceiling with supplied screws. - Page 17 2. Align the ¼-20 UNC Screw Hole on the camera with the mounting bracket and rotate the camera to get it fixed. Tighten the nut. 3. Adjust the surveillance angle. 1). Loosen the adjusting knob. 2). Rotate the notch to face or be back to your surveillance scene according to your actual need.
- Page 18 4. Adjust the Lens. 1). Connect the VIDEO OUT interface of the camera to the debugging monitor. 2). Adjust the Zoom Lever and Focus Lever to obtain a perfect image on the monitor. Notes: ● Do not remove the lens cap until you finish the installation to avoid the scrape and dust during the installation and wiring.
-
Page 19: Wall Mounting
2.4 Wall Mounting The camera supports the wall mounting. Here take the steps of the installation. Steps: 1. Fix the wall mounting bracket to the wall with the screws. Figure 2-5 Installing the Mounting Bracket Note: Insert the expansion screws first if the camera is mounted to a cement wall. - Page 20 Installing the Camera to the Bracket 3. Adjust the camera to the optimal surveillance angle. Adjusting the Surveillance Angle 1). Loosen the tilt adjusting screw to adjust the tilting position [- 45° to 45°]. Tighten the screw. 2). Loosen the pan adjusting screw to adjust the panning position [0°...
- Page 21 4. Adjust the Lens. 1). Connect the VIDEO OUT interface of the camera to the debugging monitor. 2). Adjust the Zoom Lever and Focus Lever to obtain a perfect image on the monitor. Notes: ● Do not remove the lens cap until you finish the installation to avoid the scrape and dust during the installation and wiring.
-
Page 22: Setting The Network Camera Over The Lan
3 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, contact your dealer or the nearest service center for help. -
Page 23: Activating The Camera
Activation via Web Browser and Activation via Grundig IP-Finder software are supported. We will take activation via Grundig IP-Finder software and Activation via Web Browser as examples to introduce the camera activation. Activation via Web Browser Steps: 1. - Page 24 For the camera enables the DHCP by default, you need to use the Grundig IP-Finder software to search the IP address. Activation Interface (Web) 3. Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly...
-
Page 25: Activation Via Grundig Ip-Finder Software
Activation via Grundig IP-Finder Software The Grundig IP-Finder software is used for detecting the online device and activating the camera. Get the Grundig IP-Finder software from the supplied disk or the official website and install the software according to the prompts. -
Page 26: Modifying The Ip Address
To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your Use the Grundig IP-Finder software or client software to search and change the IP address of the device. We take modifying the IP... - Page 27 Address via Grundig IP-Finder software as an example to introduce the IP address modification. For IP address modification via client software, refer to the user manual of client software. Steps: 1. Run the Grundig IP-Finder software. 2. Select an activate device.
- Page 28 Modify the IP Address 4. Input the admin password and click Modify to activate your IP address modification. The batch IP address modification is supported by the Grundig IP- Finder. Please refer to the User Manual of Grundig IP-Finder software for details.
-
Page 29: Accessing Via Web Browser
4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps:... - Page 30 4. Click Login. Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- Note: You may have to close the web browser to finish the installation of the plug-in.
-
Page 31: Initializing The Memory Card
4.1 Initializing the Memory Card Steps: Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion dection. - Page 32 QG-GD-CI-AP2605B-2020-01-28-V4-DE ©ABETECHS GMBH, DÜSSELDORF, GERMANY grundig-security.com...
