Summary of Contents for Grundig GD-CI-AC1616V

  • Page 2 The information contained in the guide is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version at WWW.GRUNDIG-SECURITY.COM Legal Disclaimer REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
  • Page 3 Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.
  • Page 5: Safety Instruction

    Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 6 according to the IEC60950-1 standard. Please refer to technical specifications for detailed information. ● Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard. ● Please make sure that the plug is firmly connected to the power socket.
  • Page 7 ● Do not place the camera in extremely hot, cold (the operating temperature shall be-30°C to +60°C, or -40°C to +60°C if the camera model has an “H” in its suffix), dusty or damp locations, and do not expose it to high electromagnetic radiation. ●...
  • Page 8: Table Of Contents

    Table of Contents 1 Appearance Description ..............8 2 Installation ..................10 3 Setting the Network Camera over the LAN ........15 Wiring ................15 Activating the Camera ........... 16 Activation via Web Browser ........ 16 Activation via SADP Software ......17 Modifying the IP Address ..........
  • Page 9: Appearance Description

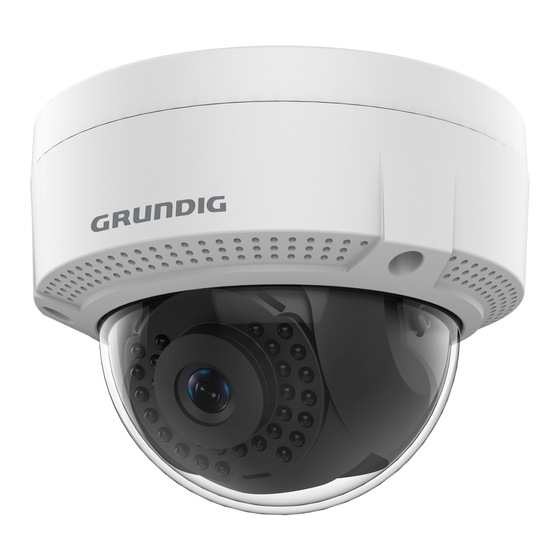

    1 Appearance Description This series of cameras has two types, and shares the same appearance, shown as the figure 1-1. Camera Overview...
  • Page 10 Description of Type I/II Camera Description Mounting Base Tilt Adjusting Screw Bubble Network Interface Power Interface IR LED Lens Black Liner Safety Rope Note: Power on the camera when pressing the RESET button, and press button for another 10 seconds to restore the default settings, including the user name, password, IP address, port No., etc.
  • Page 11: Installation

    2 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● The standard power supply is 12 V DC or 24 V AC. Make sure your power supply matches with your camera. ●...
  • Page 12 Steps: 1. Attach the dill template to the ceiling. 2. Drill the screw holes and cable hole (optional) in the ceiling according to the drill template. Note: Cable hole is required when you adopt ceiling outlet to route the cables. Drill Template Hole A: for cables routed through the ceiling screw hole 1: for Mounting Base...
  • Page 13 Remove the Bubble 4. Fix the mounting base on the ceiling with supplied screws. Fix the Mounting Base 5. Route the cables through the cable hole. Note: If required, you can route cables through the side opening on the side of the mounting base. Side Opening...
  • Page 14 Side Opening 6. Connect the corresponding cables, such as power cable and network cable. 7. Power on the camera to check whether the image on the monitor is gotten from the optimum angle. If not, adjust the camera to get an optimum angle.
  • Page 15 ● Type II camera supports 3-axis adjustment. Loosen the tilt adjusting screw to adjust the tilt angle [0° to 75°], hold the black liner to adjust the pan angle [0° to 355°], and hold the lens to rotate the camera [0° to 355°]. See the figure below. 0°...
  • Page 16: Setting The Network Camera Over The Lan

    3 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, strengthen your own protection. If the product does not work properly, contact with your dealer or the nearest service center.
  • Page 17: Activating The Camera

    Activating the Camera You are required to activate the camera first by setting a strong password for it before using the camera. Activation via Web browser, SADP, and client software are available. We will take activation via SADP software, and Web browser as examples to introduce the camera activation.
  • Page 18: Activation Via Sadp Software

    3. Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 19 SADP Interface Note: The SADP software supports activating the camera in batch. Refer to the User Manual of SADP Software for details. 3. Create a password and input the password in the password field, and confirm the password. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and...
  • Page 20: Modifying The Ip Address

    Modifying the IP Address Purpose: To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your PC. Then, install the SADP software or client software to search and change the IP of network camera.
  • Page 21 Note: Refer to Chapter 3.2 Activating the Camera to activate the camera if the camera is inactive. 3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. Modify the IP Address 4.
  • Page 22: Accessing Via Web Browser

    4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP, SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024 × 768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps:...
  • Page 23 The device gets locked if the admin user performs 7 failed  password attempts (5 attempts for the user/operator). Click Login. Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Follow the installation prompts to install the plug-in. Note: You may have to close the web browser to finish the installation of the plug-in.
  • Page 24 Download Plug-in Install Plug-in (1)
  • Page 25 Install Plug-in (2) 6. Reopen the web browser after the installation of the plug-in and repeat steps 2 to 4 to login. Note: For detailed instructions of further configuration, refer to the user manual. WWW.GRUNDIG-SECURITY.COM QG-GD-CI-AC1616V-2018-01-06-V1-EN ©ABETECHS GMBH, DÜSSELDORF, GERMANY...
