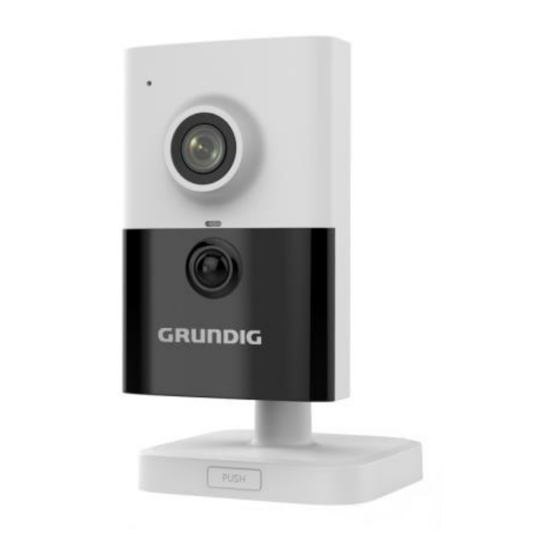

1 Appearance Description The overview of the network camera is shown below. Overview...
Page 9
Description Description Lens Microphone IR LED Alarm: Solid red when the camera is armed; Solid blue when the camera is unarmed. Indicator Status: Reserved Link: Flashing amber when network is connected; Unlit when network is disconnected PIR(Passive Infrared) sensor Light Sensing SD Card Slot 3-axis Bracket 10M / 100M self-adaptive Ethernet interface &...
Page 10
Description O: Alarm Output Interface Power supply interface (12 VDC) Speaker Notes: ● Reset button operation: Press Reset button for about 10 s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc.
2 Installation Stand Mounting Steps: Assemble the 3-axis bracket. Assemble the Bracket Align the camera body to the bracket, and rotate the camera body to fix it with the bracket.
Install the Camera Body Ceiling Mounting Drill the screw holes according to the drill template. Drill Template Screw hole All:for Mounting Base Drill Template...
Page 13
Install the fixed plate to the ceiling with the supplied screws. Install the mounting base to the fixed plate. Install the Fixed Plate and Mounting Base Install the camera to the bracket. Install the Camera Adjust surveillance angel 1). Loosen the knob to adjust the panning position and tilting position.
3 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, contact your dealer or the nearest service center for help.
Activation via Web Browser and Activation via Grundig IP-Finder Tool are supported. We will take activation via Grundig IP-Finder Tool and Activation via Web Browser as examples to introduce the camera activation.
5. Click OK to save the password and enter the live view interface. Activation via Grundig IP-Finder Tool The Grundig IP-Finder Tool is used for detecting the online device and activating the camera. Get the Grundig Finder Tool from the supplied disk or the official...
Page 18
User manual for other two activation methods. Steps: 1. Run the Grundig IP-Finder Tool to search the online devices. 2. Check the device status from the device list and select the inactive device.
To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your Use the Grundig IP-Finder Tool to search and change the IP address of the device. We take modifying the IP Address via Grundig IP-Finder as an example to introduce the IP address modification.
Page 20
3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. Modify the IP Address 4. Input the admin password and click Modify to activate your IP address modification.
Page 21
The batch IP address modification is supported by the Grundig IP- Finder. Please refer to the User Manual of Grundig IP-Finder for details.
4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps:...
Page 23
4. Click Login. Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- Note: You may have to close the web browser to finish the installation of the plug-in.
