Quick Start Guide
GD-CI-AT4747P
GD-CI-AT8746P
grundig-security.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GD-CI-AT4747P and is the answer not in the manual?

Questions and answers

Related Manuals for Grundig GD-CI-AT4747P

Summary of Contents for Grundig GD-CI-AT4747P

  • Page 1 Quick Start Guide GD-CI-AT4747P GD-CI-AT8746P grundig-security.com...
  • Page 2 Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Abetechs GmbH (Grundig Security) reserves the right to change the contents of this document without prior notice. Design and specifications are subject to change without prior notice.
  • Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open source software licenses. For detailed information about the...
  • Page 4 You may obtain the complete corresponding open source part of a specific product from us for a period of three years after our last shipment of this product by sending an email to: info@grundig- security.com Safety and Installation Instruction...
  • Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
  • Page 6 Installation Instructions It is necessary to fix the device firmly if the product is installed on a wall or ceiling. Do not install the product on surfaces or in places that are vibrating. Do not install the product near radiation sources. Do not install the product near heat sources, like radiators or other equipment that produces some heat.
  • Page 7 Special Installation Instructions for IP Cameras Make sure that the latest firmware is installed on the IP Device. You may get the latest firmware from www.grundig-security.com website or from techsupport@grundig-security.com.

  • Page 8: Table Of Contents

    Content 1 Camera .................... 8 1.1 Camera components ............8 1.2 Alarm Output ..............9 2 Installation ..................10 2.1 Memory card installation ..........11 2.2 Installation ..............12 2.3 Zoom- and Focus Adjustment ........14 3 Setting the Network Camera over the LAN ........15 3.1 Wiring ................

  • Page 9: Camera

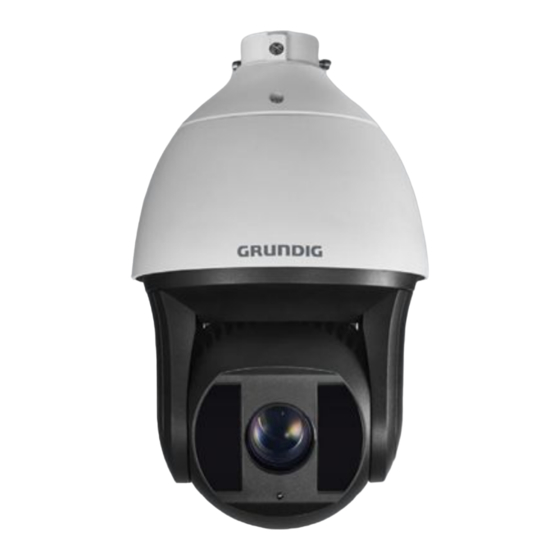

    1 Camera 1.1 Camera components Figure 1-1 PTZ-Camera The cable interfaces of the speed dome are shown in Figure 1-2. The cables are distinguished by different colors. Refer to the labels attached on the cables for identification. Note: ● Make sure the speed dome is power-off before you connect the cables.

  • Page 10: Alarm Output

    Figure 1-2 Cable Interfaces 1.2 Alarm Output Alarm output is shown in Figure 1-3. Output DC 30V JQC-3FG Relay Power Supply (10A 250VAC) Direct load OUT (n) Relay Output ~220V AC Relay Output OUT (n) OUT (n) Zero FireWire Line OUT (n) Figure 1-3 Alarm output...

  • Page 11: Installation

    2 Installation Before you start: ● Do not drag the camera with its waterproofed cables. Otherwise the waterproof performance can be affected. Figure 2-1 do not drag the cables ● The standard main voltage is 24VAC. Make sure your power supply math the required characteristics.

  • Page 12: Memory Card Installation

    2.1 Memory card installation This camera supports the installation of memory cards. Please follow the steps below to install the memory card: Steps: 1. Loosen the two screws as shown below. Figure 2-2 Remove the cover 2. Remove the cover. 3.

  • Page 13: Installation

    2.2 Installation Before you start: The wall mount bracket is not included with the camera and must be purchased separately. Steps: 1. Remove the wall bracket and the enclosed mounting accessories from the packaging. 2. Drill four holes into the wall at the spacing of the holes on the wall bracket and insert one dowel each into the holes.
  • Page 14 Figure 2-4 Install the mounting base 4. Route the cables of the camera through the bracket. 5. Attach the safety rope to the bracket and camera. Figure 2.5 Hang the camera...

  • Page 15: Zoom- And Focus Adjustment

    6. Hook the camera into the camera mount of the mounting base and attach the camera to the camera base with the three screws. 2.3 Zoom- and Focus Adjustment You can adjust the zoom and focus level on PTZ control panel by visiting the camera via web browser or client software.

  • Page 16: Setting The Network Camera Over The Lan

    3 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, contact your dealer or the nearest service center for help.

  • Page 17: Activating The Camera

    You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via Grundig IP-Finder, and Activation via Client Software are all supported. We will take activation via Grundig IP-Finder software and Activation via Web Browser as examples to introduce the camera activation.

  • Page 18: Activation Via Ip-Finder Software

    4. Confirm the password. 5. Click OK to save the password and enter the live view interface. 3.2.2 Activation via IP-Finder Software Grundig Finder software is used for detecting the online device and activating the camera.
  • Page 19 Get the Grundig Finder software from the supplied disk or the official website and install the software according to the prompts. Follow the steps to activate the camera, please refer to the User manual for other two activation methods. Steps: 1.

  • Page 20: Modifying The Ip Address

    To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your Use the Grundig IP-Finder software or client software to search and change the IP address of the device. We take modifying the IP Address via Grundig IP-Finder software as an example to introduce the IP address modification.
  • Page 21 Modify the IP Address 4. Input the admin password and click Update to activate your IP address modification. The batch IP address modification is supported by the Grundig IP- Finder. Please refer to the User Manual of Grundig IP-Finder for details.

  • Page 22: Accessing Via Web Browser

    4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps:...
  • Page 23 4. Click Login. Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- Note: You may have to close the web browser to finish the installation of the plug-in.

  • Page 24: Initializing The Memory Card

    4.1 Initializing the Memory Card Steps: Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
  • Page 25 QG-GD-CI-AT4747P-2019-10-17-V4-EN ©ABETECHS GMBH, DÜSSELDORF, GERMANY grundig-security.com...
