Grundig GD-CI-AP6637T Quick Start Manual

Hide thumbs Also See for GD-CI-AP6637T:
Table of Contents

Advertisement

Quick Links

Download this manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GD-CI-AP6637T and is the answer not in the manual?

Questions and answers

Related Manuals for Grundig GD-CI-AP6637T

Summary of Contents for Grundig GD-CI-AP6637T

  • Page 2 Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Abetechs GmbH (Grundig Security) reserves the right to change the contents of this document without prior notice. Design and specifications are subject to change without prior notice.
  • Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open source software licenses. For detailed information about the...
  • Page 4 You may obtain the complete corresponding open source part of a specific product from us for a period of three years after our last shipment of this product by sending an email to: info@grundig- security.com Safety and Installation Instructions...
  • Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
  • Page 6 Installation Instructions It is necessary to fix the device firmly if the product is installed on a wall or ceiling. Do not install the product on surfaces or in places that are vibrating. Do not install the product near radiation sources. Do not install the product near heat sources, like radiators or other equipment that produces some heat.
  • Page 7 Special Installation Instructions for IP Cameras Make sure that the latest firmware is installed on the IP Device. You may get the latest firmware from www.grundig-security.com website or from techsupport@grundig-security.com.

  • Page 8: Table Of Contents

    3.1 Wiring ................14 3.2 Activating the Camera ........... 15 Activation via Web Browser ........15 Activation via Grundig IP-Finder Software ....16 3.3 Modifying the IP Address ..........18 4 Accessing via Web Browser ............20 4.1 Initializing the Memory Card ......... 22...

  • Page 9: Appearance Description

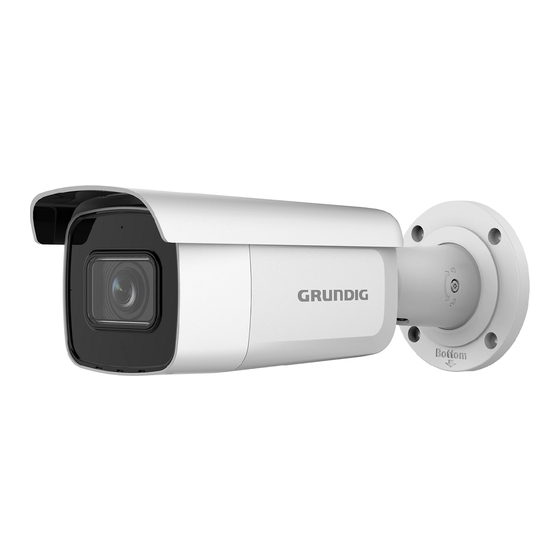

    1 Appearance Description The overview of the bullet camera is shown below. Figure 1-1 Overview of the Camera Note: Hold RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP- address.
  • Page 10 Figure 1-2 Cable Description...

  • Page 11: Installation

    2 Installation 2.1 Memory Card Installation The camera supports memory card installation. Steps: 1. Loosen the screws using the supplied Allen wrench to remove the cover of the memory card slot. 2. Insert the memory card into the card slot. 3.

  • Page 12: Camera Mounting

    2.2 Camera Mounting Steps: 1. Drill screw holes in the wall/ceiling according to the supplied template. Figure 2-2 Drill Template 2. Feed the cables through the wall / ceiling or from the side and connect them to the camera connections.
  • Page 13 Connecting the cables...
  • Page 14 3. Adjust the view angle. 3-axis (pan/tilt/rotation) adjusting allows adjustment for optimum camera rotation and placement. Follow the steps below to adjust the view angle. Steps: 1). Loosen the lock screw using the supplied Allen wrench. 2). Adjust the view angle of the camera. The adjusting range of the panning is from 0°...

  • Page 15: Setting The Ip-Camera Over The Lan

    3 Setting the IP-Camera over the LAN Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, contact your dealer or the nearest service center for help.

  • Page 16: Activating The Camera

    Activation via Web Browser and Activation via Grundig IP-Finder software are supported. We will take activation via Grundig IP-Finder software and Activation via Web Browser as examples to introduce the camera activation. Activation via Web Browser Steps: 1.

  • Page 17: Activation Via Grundig Ip-Finder Software

    4. Confirm the password. 5. Click OK to save the password and enter the live view interface. Activation via Grundig IP-Finder Software The Grundig IP-Finder software is used for detecting the online device and activating the camera.
  • Page 18 Get the Grundig IP-Finder software from the supplied disk or the official website and install the software according to the prompts. Follow the steps to activate the camera, please refer to the User manual for other two activation methods. Steps: 1.

  • Page 19: Modifying The Ip Address

    To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your Use the Grundig IP-Finder software or client software to search and change the IP address of the device. We take modifying the IP Address via Grundig IP-Finder software as an example to introduce the IP address modification.
  • Page 20 Modify the IP Address 4. Input the admin password and click Upodate to activate your IP address modification. The batch IP address modification is supported by the Grundig IP- Finder. Please refer to the User Manual of Grundig IP-Finder software for details.

  • Page 21: Accessing Via Web Browser

    4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8 and above version, Apple Safari 16 and above version, Mozilla Firefox 52.0 and above version and Google Chrome 57.0 and above version Steps:...
  • Page 22 4. Click Login. Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- Note: You may have to close the web browser to finish the installation of the plug-in.

  • Page 23: Initializing The Memory Card

    4.1 Initializing the Memory Card Steps: Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
