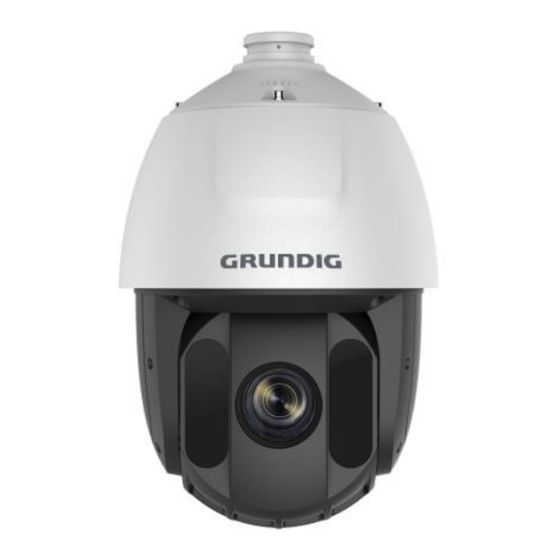

Grundig GD-CI-AP2747P Quick Manual
  1. Manuals
  2. Brands
  3. Grundig Manuals
  4. Security Camera
  5. GD-CI-AP2747P
  6. Quick manual

Grundig GD-CI-AP2747P Quick Manual

Network ptz
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Network PTZ
Dome Camera
Quick Guide
GD-CI-AP2747P
WWW.GRUNDIG-SECURITY.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GD-CI-AP2747P and is the answer not in the manual?

Questions and answers

Related Manuals for Grundig GD-CI-AP2747P

Summary of Contents for Grundig GD-CI-AP2747P

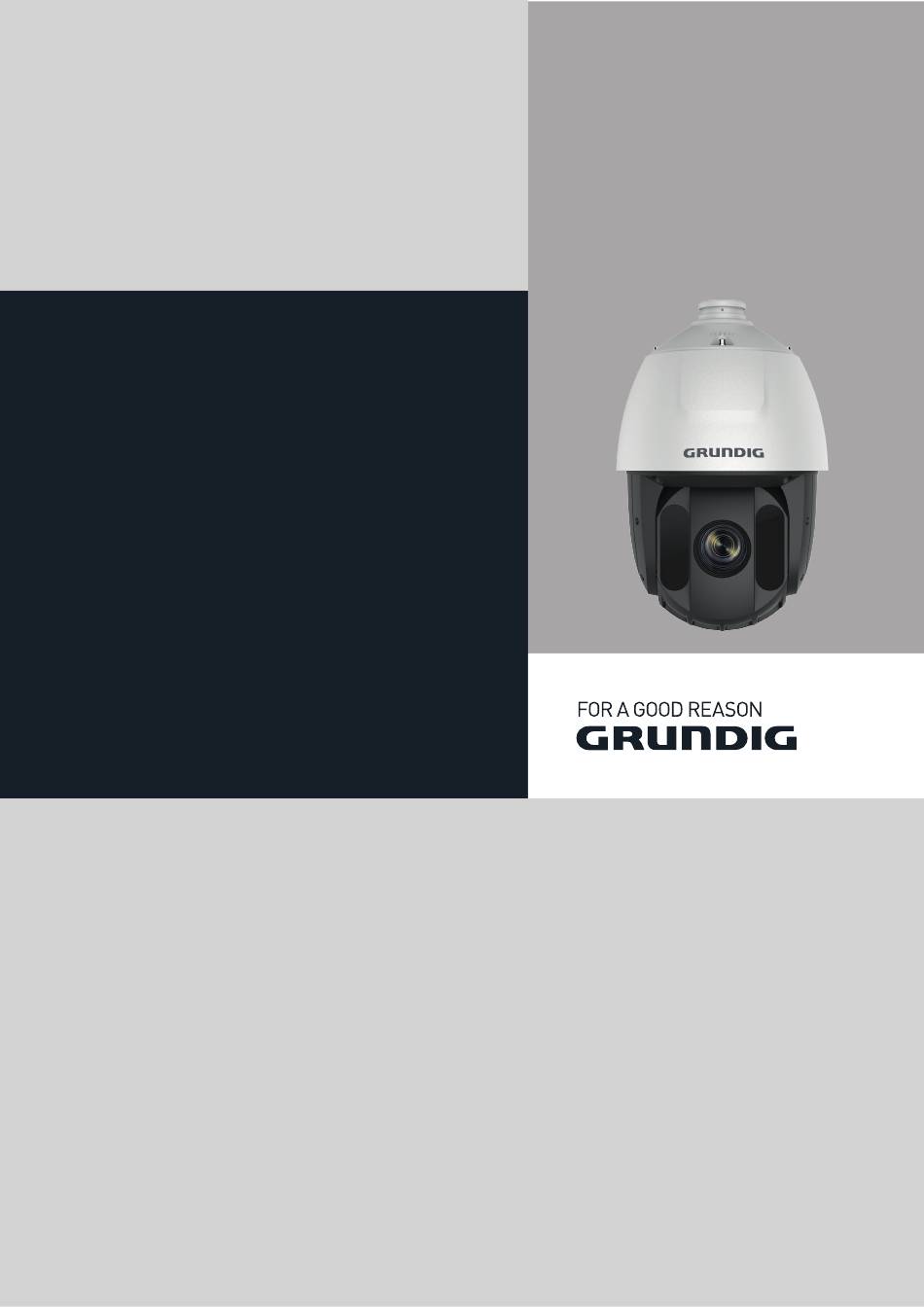

  • Page 1 Network PTZ Dome Camera Quick Guide GD-CI-AP2747P WWW.GRUNDIG-SECURITY.COM...
  • Page 2 Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Abetechs GmbH (Grundig Security) reserves the right to change the contents of this document without prior notice. Design and specifications are subject to change without prior notice.
  • Page 3 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
  • Page 4 Recorders). Special Installation Instructions for IP Cameras Make sure that the latest firmware is installed on the IP Device. You may get the latest firmware from www.grundig-security.com website or from techsupport@grundig-security.com. Do not touch the sensor module with your fingers.

  • Page 5: Table Of Contents

    3.1 Wiring ........................10 3.2 Activating the Camera ................... 10 3.2.1 Activation via Web Browser ................11 3.2.2 Activation via Grundig IP-Finder Tool .............. 11 3.3 Modifying the IP Address ..................13 4 Accessing via Web Browser ................ 14 4.2 Initializing the Memory Card ................. 15...

  • Page 6: Overview

    1 Overview 1.1 IR Speed Dome Overview Note: The figures below are for reference only, refer to the actual product as the standard. 1.1.1 Overview of the IR Speed Dome Figure 1-1 Overview of the IR Speed Dome 1.2 Cable Interfaces The cable interfaces of the speed dome are shown in Figure 1-2.

  • Page 7: Alarm Output

    Power Cord RS-485 Cable Alarm Cable Audio Cable Video Cable Network Cable Figure 1-2 Cable Interfaces 1.3 Alarm Output Alarm output is shown in Figure 1-3. Output DC 30V JQC-3FG Relay Power Supply (10A 250VAC) Direct load OUT (n) Relay Output ~220V AC Relay Output Zero...

  • Page 8: Installation

    2 Installation Before you start: Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included. Notes: ⚫ Do not touch the bubble directly by hand. The image blurs otherwise. ⚫...
  • Page 9 Steps: 1. Install the memory card. 1) Loosen the lock screws on the speed dome back cover and remove the cover. 2) Align the memory card with the memory card slot and insert it. Screws Memory Card Slot Figure 2-2 Memory Card Slot 3) Install the cover back and tighten the lock screws.
  • Page 10 1) Hook the two ends of the safety rope to the speed dome back box and the bracket respectively as shown in Figure 2-5. Figure 2-5 Safety Rope 2) Route the cables through the bracket and connect the corresponding cables. 3) Loosen the lock screws on the bracket.

  • Page 11: Setting The Speed Dome Over The Lan

    3 Setting the Speed Dome over the LAN Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, contact your dealer or the nearest service center for help.

  • Page 12: Activation Via Web Browser

    • The default IP address of the camera is 192.168.1.100 • The PC and the camera should belong to the same subnet. • For the camera enables the DHCP by default you need to use the Grundig IP-Finder Tool to search the IP address.
  • Page 13 Get the Grundig IP-Finder tool from the supplied disk or the official website and install the software according to the prompts. Follow the steps to activate the camera, please refer to the User manual for other activation methods. Steps: Run the Finder software to search the online devices.

  • Page 14: Modifying The Ip Address

    PC. Use the Grundig IP-Finder tool to search and change the IP address of the device. We take modifying the IP Address via Grundig IP-Finder tool as an example to introduce the IP address modification.

  • Page 15: Accessing Via Web Browser

    4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version/Vista/Win7/Server 2003/Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024 × 768 resolution or higher Web Browser: Internet Explorer 7.0 and above version, Apple Safari 5.02 and above version, Mozilla Firefox 5 and above version and Google Chrome8 and above version Steps: 1.

  • Page 16: Initializing The Memory Card

    If the memory card status displays as uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection. WWW.GRUNDIG-SECURITY.COM QG-GD-CI-AP2747P-2019-02-03-V3-EN ©ABETECHS GMBH, DÜSSELDORF, GERMANY...
