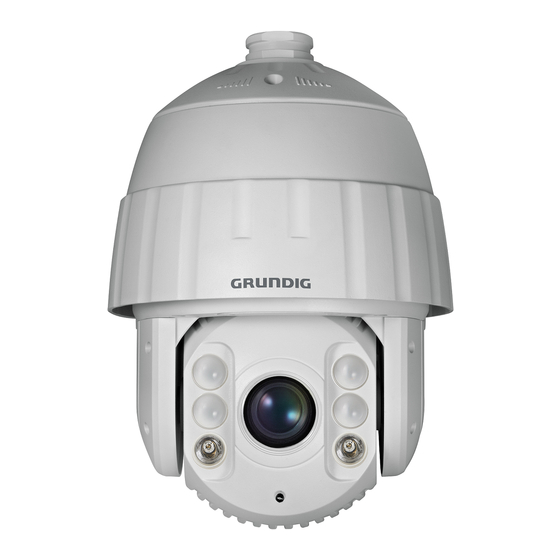

Network outdoor motorized dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GD-CI-AP4746P and is the answer not in the manual?

Questions and answers

Related Manuals for Grundig GD-CI-AP4746P

Summary of Contents for Grundig GD-CI-AP4746P

  • Page 2 Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Abetechs GmbH (Grundig Security) reserves the right to change the contents of this document without prior notice. Design and specifications are subject to change without prior notice.
  • Page 3 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
  • Page 4 Special Installation Instructions for IP Cameras Make sure that the latest firmware is installed on the IP Device. You may get the latest firmware from www.grundig-security.com website or from techsupport@grundig-security.com. Do not touch the sensor module with your fingers. Do not aim the camera or camera lens at a strong light such as the sun or a bright lamp.

  • Page 5: Table Of Contents

    3.1 Wiring ........................11 3.2 Activating the Camera ................... 11 3.2.1 Activation via Web Browser ................13 3.2.2 Activation via Grundig IP-Finder Tool .............. 13 3.3 Modifying the IP Address ..................14 4 Accessing via Web Browser ............... 16 4.1 Initializing the Memory Card ................. 17...

  • Page 6: Overview

    1 Overview 1.1 Speed Dome Overview Note: The figures below are for reference only, refer to the actual product as the standard. 1.1.1 Overview of the IR Speed Dome Figure 1-1 Overview of the IR Speed Dome 1.2 Cable Interface The cable interfaces of the speed dome are shown in Figure 1-2.

  • Page 7: Alarm Output

    Figure 1-2 Cable Interfaces 1.3 Alarm Output Alarm output is shown in Figure 1-3. Figure 1-3 Alarm Output...

  • Page 8: Installation

    2 Installation Before you start: Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included. Notes:  Do not touch the bubble directly by hand. The image blurs otherwise. ...
  • Page 9 Steps: 1. Install the memory card. 1) Loosen the four screws of the back cover of the camera and remove the cover. 2) Insert the memory card into the card slot. Figure 2-2 Remove the Protective Accessories 3) Install the cover back and tighten the screws. 2.

  • Page 10: Ceiling Mounting

    3. Install the speed dome to the bracket. 1) Hook the end of the safety rope to the speed dome back box and the bracket respectively as shown in Figure 2-5. Figure 2-5 Safety Rope 2) Route the cables through the bracket and connect the corresponding cables. 3) Loosen the two lock screws on the bracket.
  • Page 11 Steps: 1. Drill screw holes in the ceiling. 1) Attach the drill template to the ceiling where you want to install the speed dome. 2) Drill screw holes and a cable hole (optional) according to the drill template. 2. Install the speed dome to the ceiling. 1) Align the ceiling bracket with the screw holes on the drill template and secure the ceiling bracket to the ceiling with screws (supplied).

  • Page 12: Setting The Speed Dome Over The Lan

    3 Setting the Speed Dome over the LAN Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, contact your dealer or the nearest service center for help.
  • Page 13 Activation via Web Browser and activation via Grundig IP-Finder are supported. We will take activation via Grundig IP-Finder tool and Activation via Web Browser to introduce the camera activation.

  • Page 14: Activation Via Web Browser

     The default IP address of the camera is 192.168.1.100  The PC and the camera should belong to the same subnet.  For the camera enables the DHCP by default you need to use the Grundig IP-Finder Tool to search the IP address.

  • Page 15: Modifying The Ip Address

    Run the Finder software to search the online devices. Check the device status from the device list and select the inactive device. Figure 3-4 Grundig IP-Finder Interface Note: The software supports activating the camera in batch. Refer to the user manual of Grundig IP-Finder tool for details.
  • Page 16 Use the Grundig IP-Finder tool to search and change the IP address of the device. We take modifying the IP Address via Grundig IP-Finder tool as an example to introduce the IP address modification. Steps: 1. Run the Grundig IP-Finder tool.

  • Page 17: Accessing Via Web Browser

    4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version/Vista/Win7/Server 2003/Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024 × 768 resolution or higher Web Browser: Internet Explorer 7.0 and above version, Apple Safari 5.02 and above version, Mozilla Firefox 5 and above version and Google Chrome8 and above version Steps: 1.

  • Page 18: Initializing The Memory Card

    If the memory card status displays as uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection. WWW.GRUNDIG-SECURITY.COM QG-GD-CI-AP4746P-2019-07-24-V3-EN ©ABETECHS GMBH, DÜSSELDORF, GERMANY...
