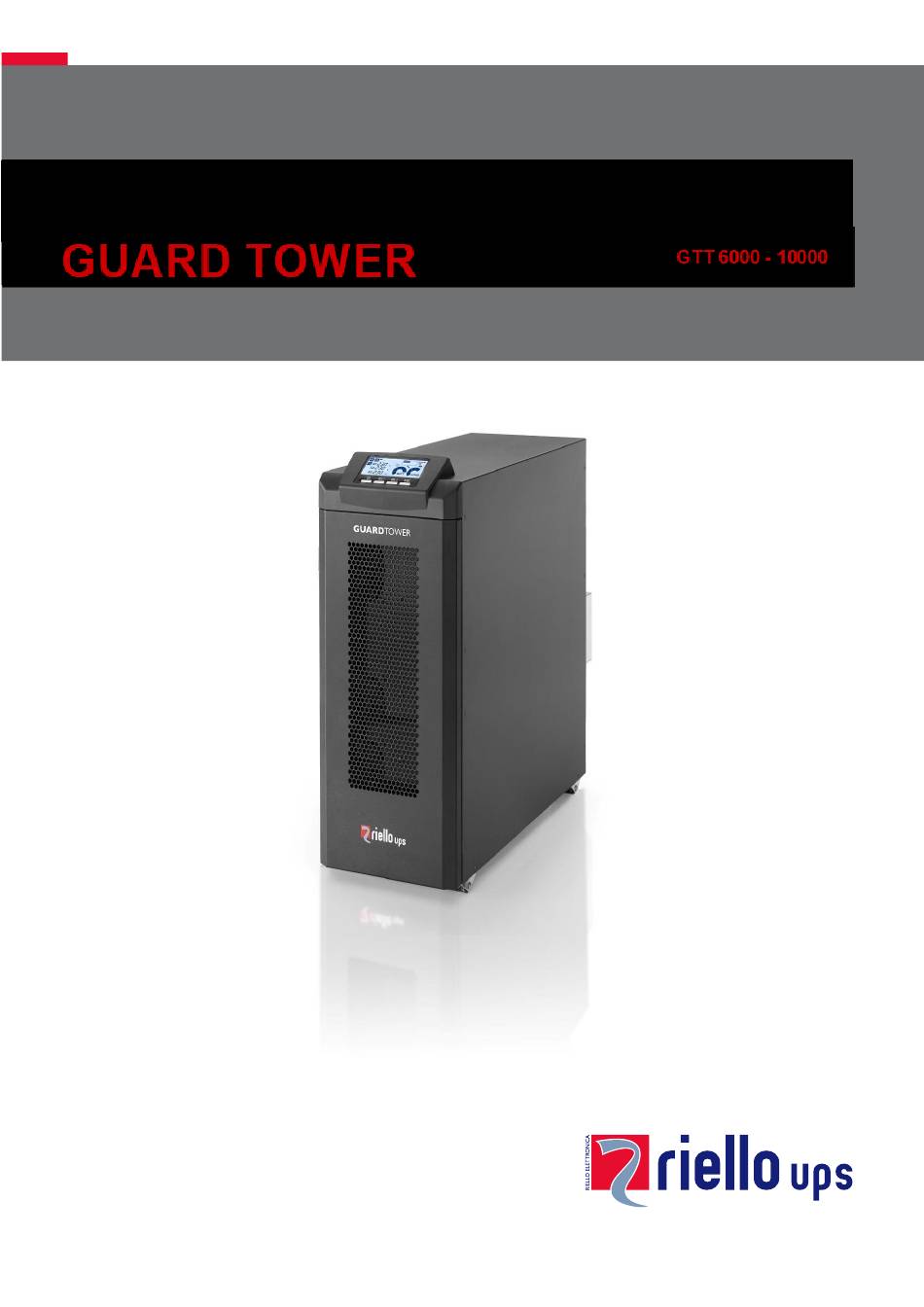

- Page 1 Quick Guide...
-
Page 2: Product Overview
NTRODUCTION The product is used as an external power distribution unit in conjunction with GTT UPS TOWER model. RODUCT OVERVIEW NEMA “5-20R” BREAKER... -
Page 3: Installation
INSTALLATION Remove the module from the shipping package and inspect it for damage that may occur during transportation. Notify the carrier and place of purchase if any damage is found. Install the module The module screwed into the back panel of GTT UPS as shown below figure. - Page 4 ONNECT TO THE UPS Connect the power cord (L1/L2/N) from PDU to UPS output terminal. If this is the back of the UPS that above doesn’t make sense. L1 and L2 are the input of the UPS, they should be marked 0V 120V Connect to Equipment There are two types of output receptacles voltage: 240V and 120V.
- Page 5 MPORTANT AFETY ARNING SAVE THESE INSTRUCTIONS To safely operate this unit, please read and follow all instructions carefully. Read this manual thoroughly before attempting to unpack, install, or operate. You may keep this quick guide for further reference CAUTION: The product must be used indoor only. CAUTION: Do not place the unit near liquid or in an excessively damp environment.
- Page 6 Telephone +1-513-282-3777...
