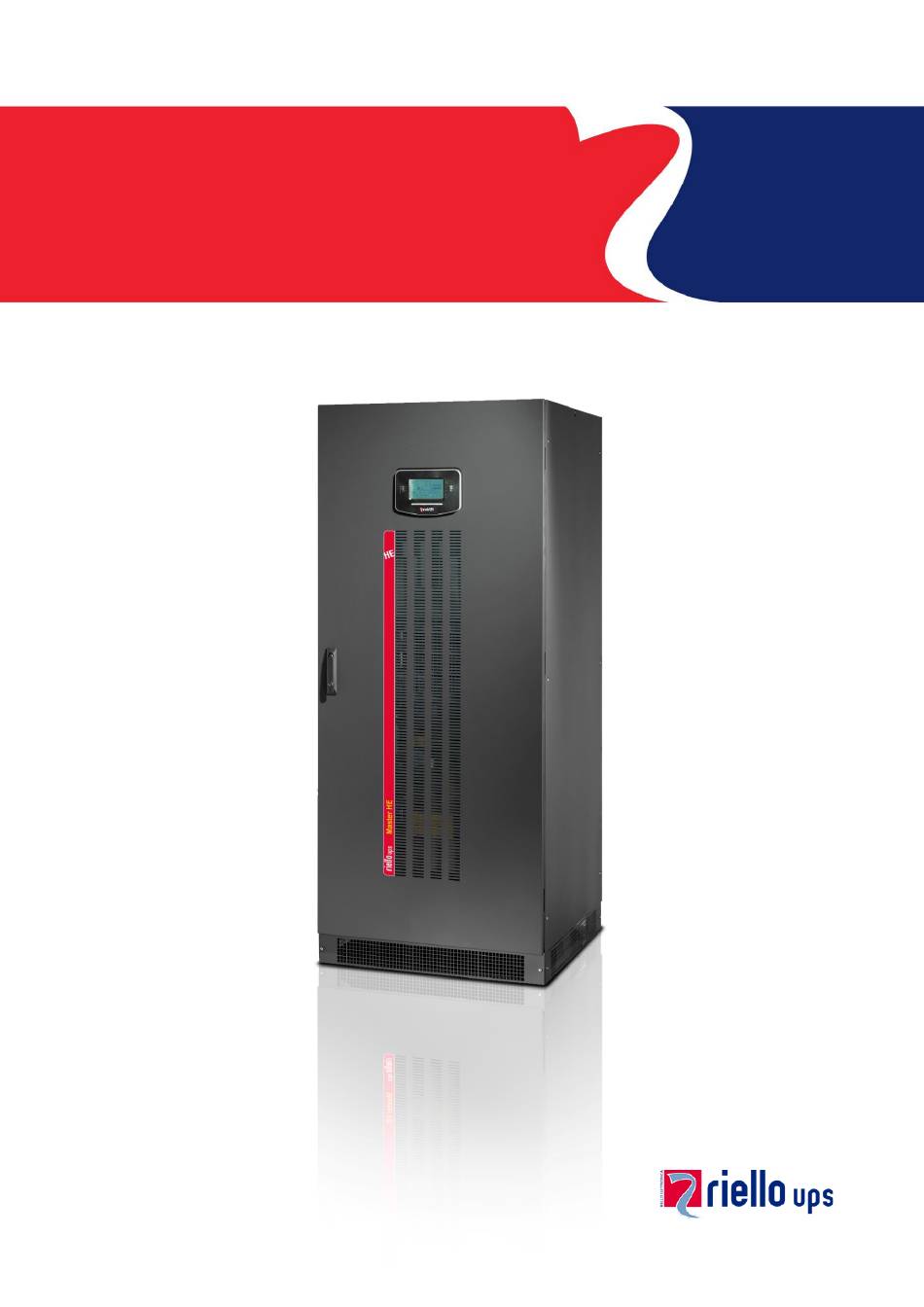

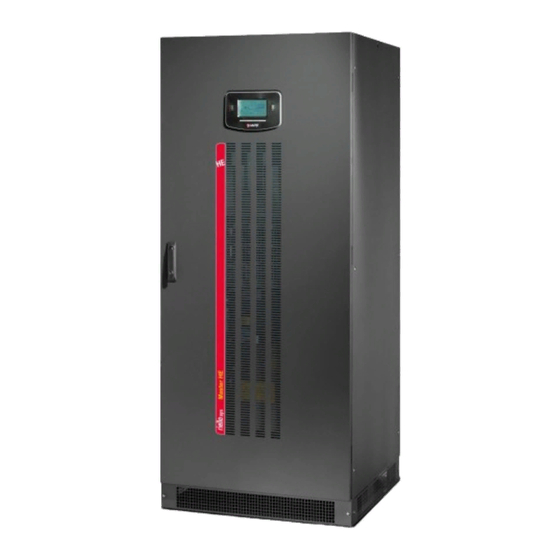

- Page 1 Technical specifications Master HE 100/250 kVA THREEPHASE/THREEPHASE On Line Double Conversion Technology (VFI)
-
Page 2: Table Of Contents
MASTER HE INDEX 1. PURPOSE ............................2 2. SYSTEM DESCRIPTION ........................2 3. REFERENCE STANDARDS ......................2 4. APPLICATIONS ..........................3 5. CONFIGURATIONS .......................... 4 6. UPS DESCRIPTION ........................10 6.1. AC/DC Converter ....................... 11 6.1.1 Easy Source ........................11 6.1. -
Page 3: Purpose
Master HE is a series of UPSs designed entirely by Riello UPS a leading manufacturer of uninterruptible power supplies from 350 VA to 800 kVA, with over 25 years of experience in the sector. -
Page 4: Applications
A PP L IC A T IO N S The UPSs of the Master HE series are suitable for all applications requiring protection of the critical load, from simple installations to more complex systems where a higher level of reliability and maintainability is required. -
Page 5: Configurations
MASTER HE 5. C O N FI G UR A TI O N S The following configurations are available: Single UPS The single version of the system, normally used for simple installations, can be extended to up to 8 units to satisfy increases in load power or to introduce a level of redundancy. - Page 6 MASTER HE The units exchange information on the operating status and the sync signals by the connections in loop with dual redundancy. This means that even in the event of the accidental interruption of both connections, only the UPS affected by this interruption cuts itself off, while the other one continues to operate without any interference.
- Page 7 • Battery can be arranged as common or separate (same as distributed parallel system) • Maintenance bypass is part of the system either embedded in Riello UPS solution (Fig. 1) or supplied by the customer together with all Input/Output/distribution switches (Fig. 2) This manually control switch will enable the load feeding directly from the mains insulating the UPS whenever there is an intervention on its critical parts.
- Page 8 MASTER HE Fig 1. System configuration with centralized bypass and switches: Fig 2. System configuration with centralized bypass without: NOTE: It is warmly suggested to arrange a proper on site procedure (written or via castell key mechanical interlock) so that SWOUT can be open just after SWBY opening manoeuvre. SPTMHEE3T16FREN...
- Page 9 MASTER HE Dual Bus System (UGS) Two independent systems can be configured in Dual Bus with a single or separate power source. The synchronization option (UGS) keeps the outputs of the two systems constantly synchronized, regardless of the input variations and when the system is powered by the battery. Each system comprises up to a maximum of 8 parallel UPSs.
- Page 10 MASTER HE Dynamic Dual Bus System (PSJ) Two independent systems (up to 4 units each) can be connected in a “Dynamic Dual Bus” configuration by means of the PSJ (Parallel System Joiner) option. This enables the two systems to be joined to form a single system when, for example, part of one system is undergoing maintenance and it is felt appropriate to use the redundant UPS for both bars of the load.
-
Page 11: Ups Description
MASTER HE 6. UP S D ESC R I PT I O N The uninterruptible power supply can be set to operate in four operating modes: ON-LINE, STAND-BY ON, SMART ACTIVE and STAND-BY OFF. Mode: ON-LINE • Normal Operation: The rectifier draws energy from the mains to power the inverter and keep the batteries charged;... -
Page 12: Ac/Dc Converter
MASTER HE 6.1. AC/DC Converter The AC/DC Converter converts the alternate voltage into direct voltage to power the inverter at nominal load and to charge the batteries. The input stage of Master HE UPS is realized with a technology such as to reduce the harmonics of current rejected into the mains by up to 3% and increase the power factor up to the unit from 10 to 100% of the load (see the tables with the Technical Data at the end of the present specifications). -
Page 13: Dc/Dc Converter
MASTER HE • Inhibition of bypass synchronism: in case of the generator set with a very unstable output frequency, the Inverter synchronization with bypass can be inhibited. In such as case the inverter generates an output voltage in the free running mode by using the internal oscillator. Consequently, the transfer of the load on the bypass is not allowed. - Page 14 MASTER HE Frequency regulation The inverter output frequency is generated autonomously by an internal oscillator in synch with that of the by-pass mains; the frequency stability towards the load therefore depends on the operating conditions: a) Frequency stability a. With mains available: the internal oscillator follows the variations in frequency of the by-pass mains, according to the set value, which is normally ±2% (can be calibrated form ±1% al ±6%).
-
Page 15: Static Switch
MASTER HE 6.3. Static switch The Static Switch is an electronic device that transfers the load onto the by-pass mains without any break in power in the following circumstances: a) manual shutdown of the inverter; b) exceeding of the inverter overload limits; c) exceeding of the internal over temperature limits;... -
Page 16: Control Panel
MASTER HE 7. C O NTR O L PA NE L The control panel located at the front of the equipment may be used to monitor and control all the parameters of the UPS and the batteries connected to it. The operating status of the UPS is shown on a liquid crystal display (LCD), with two rows of 40 characters and four LEDs with three operating states: On (steady), On (flashing), and Off. - Page 17 MASTER HE Measurements • Input voltage and frequency • By-pass voltage and frequency • Input power • Output voltage and frequency • Output power • Output power peak • Battery voltage • Battery recharge/discharge current • Inverter input voltage • Internal temperature (logic control, rectifier, Inverter, static switch and magnetic components) •...
-
Page 18: Disconnecting Switches
MASTER HE The load connected to the inverter has exceeded the nominal value OUTPUT OVERLOAD in kVA. LOAD SUPPLIED BY BY-PASS PER When the load is less than the value set by the operator, it is MINIMUM LOAD transferred onto the bypass line. INTERNAL DAMAGE number Internal fault, details of the alarm are provided by a code. -
Page 19: Communication
MASTER HE 9. C O M M UN IC A T I ON The alarms, commands and the communication software supplied together with the UPS to interface the unit with the system are listed below. If these are not sufficient, please see the Options chapter. Two DB9 connectors are available for RS232 connection;... -
Page 20: Monitoring And Control Software
MASTER HE 9.4. Monitoring and control software The system is provided with Powershield³ monitoring and control software with the following features: • Event chronology; • Total events management; • E-mail, modem, SNMP Agent support; • Sequential shutdown of all the PCs in the network, saving the active work of the most varied applications. 1 0. -
Page 21: Communication
MASTER HE 1 2. OP T IO N 12.1. Communication The software PowerNETGuard is a centralized management program used by the UPS that operates through the SNMP communication protocol. It is an ideal instrument for EDP manager in medium and large scale Data Center. The main features are the following: •... - Page 22 MASTER HE In addition to the cards above mentioned the following communication options are available: e) Multi I/O Card: an accessory mounted inside the UPS that converts external signals from the UPS (e.g. ambient temperature, battery room temperature, etc.) into signals by means of relay contacts or on an RS485 serial output in MODBUS protocol.
-
Page 23: Led Remote Mimic Panel
MASTER HE ALARM DESCRIPTION This alarm indicates when there is no output voltage due OUTPUT SWITCH AND MANUAL BY-PASS SWITCH to the simultaneous opening of the SWOUT output switch OPEN and the SWMB manual bypass switch. This alarm indicates when the shutdown command (Rectifier + Inverter + by-pass) has been activated on the ACTIVE/DISABLED SHUTDOWN COMMAND. -
Page 24: Battery Cabinet
This allows 2 systems connected in a “DUAL BUS” configuration to keep synchronised with each other for any variation in the mains voltage, including total failure. The UGS also allows an RIELLO UPS to be synchronised with another power source or to an independent non RIELLO UPS system, even one of a different power rating. -
Page 25: Voltage Adaptation
MASTER HE 12.9. Voltage adaptation On request, the UPS can have different input and output voltages according to requirements. For more information, please contact the sales office. 12.10. Kit for UPS without input and output neutral The UPS requires input neutral to work correctly. . In applications where the neutral is not available in input and is not required in output, a dummy neutral can be created using this kit. -
Page 26: Environmental Sensors
12.14. Fan Failure monitoring In addition to the standard internal temperature control, the Master HE series can also be fitted with a device for monitoring the operation of each individual fan. In the event of a fault, an alarm shows on the front panel of the system via relay contacts and software. -
Page 27: Environmenatl Requirements
MASTER HE 1 3. ENV IR O N ME NA T L R EQ U IR E ME NT S Ambient temperature for the UPS 0 ÷ 40° C Maximum temperature for 8 hours a day 40° C Average temperature for 24 hours 35°... - Page 28 MASTER HE UPS Size (kVA) Electrical Data INPUT Rated Voltage 400 Vac 3F-phase without neutral +20%, -10% (100% load) Rated Voltage tolerance (%) without +20%, -20% (85% load) battery sharing, according with load +20%, -30% (75% load) rate +20%, -40% (65% load) Rated Frequency (Hz) 50/60 Input frequency tolerance...
- Page 29 MASTER HE UPS Size (kVA) Electrical Data INVERTER Rated Power [kVA] Rated active Power [kW] Nominal Current [A] Rated Voltage 400 V 3F + N (configurable from 360 V to 420 V) Rated Frequency 50 o 60 Hz (configurable on site) Output Rated voltage regulation from 360 to 420 V Static variation...
- Page 30 MASTER HE UPS Size (kVA) Electrical Data BY-PASS Rated voltage 400 Vca 3fase + N (configurabile da 360 V a 420 V) Rated voltage tolerance ±20% (can be regulated from ±5 % to ± 25% from the control panel) Rated frequency 50 or 60 Hz (auto-sensing) Frequency tolerance ±2% (can be regulated from ±...
- Page 31 MASTER HE UPS Size (kVA) Electrical Data SYSTEM AC/AC efficiency (On line) – [%] • Full load 95.1 94.5 95.2 94.5 • Load 75% 95.2 95.2 95.5 95.3 • 94.8 95.2 95.3 95.5 Load 50% • 92.5 93.5 94.0 94.5 Load 25% Efficiency system in STAND-BY mode [%]...
- Page 32 MASTER HE Bypass Size (kVA) Electrical Data 800 kVA 1200 kVA 2000 kVA CENTRALIZED STATIC BYPASS (if applicable) Solid Static switch on by-pass path three pole cutting Technology Contactor on inverter module path (MHE NBP 100-400 kVA) Static switch on inverter module path (MHE NBP 500-600kVA) Power Range 800 kVA 1200 kVA...
- Page 33 MASTER HE SPTMHEE3T16FREN...
- Page 34 www.riello-ups.com...
