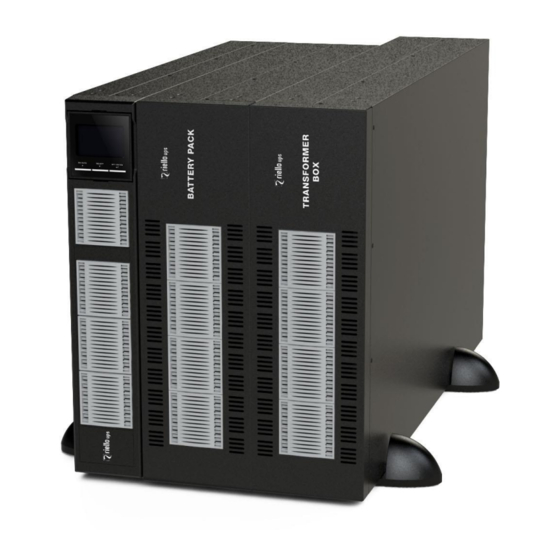

Riello UPS Sentinel RT 6000 VA User's Operation Manual

Riello UPS Sentinel RT 6000 VA User's Operation Manual

True-online ups system

Advertisement

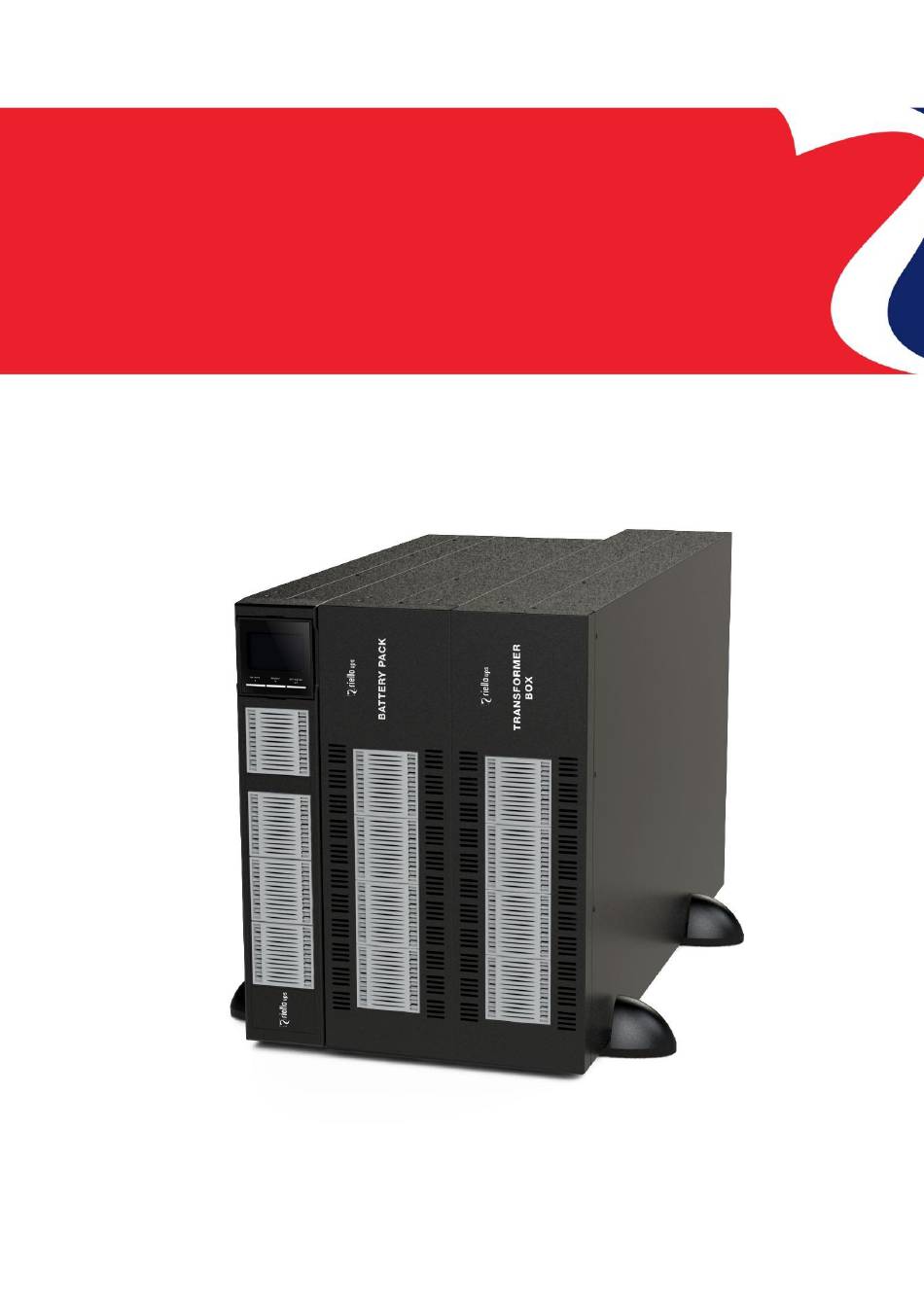

User & Operations Manual
Sentinel RT
True-Online UPS System
6000 VA - 6000 VA ER - 10000 VA - 10000 VA ER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sentinel RT 6000 VA and is the answer not in the manual?

Questions and answers

Summary of Contents for Riello UPS Sentinel RT 6000 VA

  • Page 1 User & Operations Manual Sentinel RT True-Online UPS System 6000 VA - 6000 VA ER - 10000 VA - 10000 VA ER...
  • Page 3 NTRODUCTION Congratulations on purchasing a UPS Sentinel RT product and welcome to Riello UPS! To use the support service offered by Riello UPS, visit the site www.rielloupsamerica.com Our Company is a specialist in the design, development and manufacturing of uninterruptible power supplies (UPS).
  • Page 4 AFETY AND INSTRUCTIONS • Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.
  • Page 5 TANDARDS * Safety Safety Conformance: IEC/EN 62040-1,UL1778 (5th Edition) Safety Markings : cTUVus, CE * EMI Conducted Emission......:IEC/EN 62040-2,FCC PART15 CLASS Radiated Emission.........:IEC/EN 62040-2,FCC PART15 CLASS *EMS ESD............:IEC/EN 61000-4-2 Level 4 RS............:IEC/EN 61000-4-3 Level 3 EFT............:IEC/EN 61000-4-4 Level 4 SURGE...........
  • Page 6: Table Of Contents

    ONTENTS PRESENTATION UPS V IEWS ISPLAY PANEL VIEW ATTERY RANSFORMER INSTALLATION NITIAL CONTENT CHECK NSTALLATION ENVIRONMENT ATTERY PACK INSTALLATION -ER M ODEL ER M ODEL ETTING THE NOMINAL BATTERY CAPACITY OWER VERSION BATTERY PACK TRANSFORMER BOX OWER VERSION WITH ACK VERSION OWER ONNECTION ONNECTIONS AND SWITCHING ON FOR THE FIRST TIME...
  • Page 7 OMMUNICATION PORTS RS232 CONNECTOR OMMUNICATION TROUBLESHOOTING LARM CODES TECHNICAL DATA...
  • Page 8: Presentation

    PRESENTATION SENTINEL RT uses ON-LINE double conversion technology, resulting in the highest levels of reliability and maximum protection for mission critical loads such as servers, IT applications and Voice/Data. SENTINEL RT is equipped with a dedicated Battery Pack that allows for easy battery replacement in complete safety thanks to the protected connection system.
  • Page 9: Ups Views

    UPS V IEWS Battery pack connector Input ground Communication card slot Input terminal (Line+Neutral) RS-232 communication port Cooling fan USB communication port External maintenance bypass switch port Remote control terminal board Dry contacts communication port Output terminal (Line+Neutral) Extractable/ rotatable display plate Output ground Release slits...
  • Page 10: Display Panel View

    ISPLAY PANEL VIEW “SEL” button (Select) Load level indicator “ON/MUTE” button Configuration area “OFF/ENTER” button Maintenance request Regular operation Timer Mains operation Measurement display area Battery operation Stand-by / alarm Load powered by bypass EnergyShare Battery charge indicator...
  • Page 11: Battery Pack

    ATTERY The BATTERY PACK contains batteries which allow the operating time of the uninterruptible power supplies during blackout. The number of batteries contained can be either 16 or 20. It is therefore necessary to take great care of ensure that the battery voltage of the BATTERY PACK is the same as the voltage permitted by the UPS. Several Battery Packs can be connected in series to achieve a longer extended runtime.
  • Page 12 Output circuit breaker 240V/30A Output circuit breaker 240V/30A Output circuit breaker 240V/30A Output circuit breaker 240V/30A Output circuit breaker 120V/20A Output circuit breaker 120V/20A 5-20R output receptacles 5-20R output receptacles L14-30R output receptacles L14-30R output receptacles Optional load output connection Input (to UPS output) Output circuit breaker...
  • Page 13: Installation

    INSTALLATION NITIAL CONTENT CHECK After opening the packaging, it is first necessary to check the contents. The standard model will include one UPS, one transformer box and one battery pack. The long-run ER model will only include one UPS and one transformer box. The package must contain: Support feet User manual and software download card...
  • Page 14 ATTERY Battery cable Battery pack Handles for rack installation Handle screws Support feet extend plates Metal plates TRANSFORMER BOX Transformer box Metal plates Cable glands Handle screws UPS to Transformer box output cable Temperature signal Support feet extend plates Handles for rack installation cable...
  • Page 15: Installation Environment

    NSTALLATION ENVIRONMENT The UPS, the Battery Pack and the Transformer Box must be installed in ventilated, clean environments which are sheltered from bad weather. The relative humidity in the environment must not exceed the maximum values shown in the Technical Data table. The ambient temperature, whilst the UPS is in operation, must remain between 0 and 40°C, and the UPS must not be positioned in places which are exposed to direct sunlight or to hot air.
  • Page 16: Er Model

    ER M ODEL Battery packs can be installed in series for extended runtimes. This setting is only for ER models. Connect the Battery packs in series as shown in the figure below: ER Model #1 battery pack #2 battery pack ET UP BATTERY CHARGING CURRENT ER model should be set up battery charging current according to the connected external battery pack numbers.
  • Page 17: Tower Version

    OWER VERSION This chapter describes the steps for preparing the UPS, battery pack and transformer box for tower version use. ATTENTION: For your safety and that of the product, you must carefully follow the instructions given here below. BEFORE YOU CARRY OUT THE FOLLOWING SEQUENCE OF OPERATIONS, MAKE SURE THAT THE UPS IS COMPLETELY SWITCHED OFF AND NOT CONNECTED TO THE MAINS POWER SUPPLY OR TO ANY LOAD Once removed from the packaging, the UPS is already preset for installation in the tower configuration.
  • Page 18: Tower Version With Battery Pack And Transformer Box

    BATTERY PACK TRANSFORMER BOX OWER VERSION WITH BEFORE CARRING OUT THE FOLLOWING SEQUENCE OF OPERATIONS, ENSURE THAT: THE UPS IS COMPLETELY SWITCHED OFF AND NOT CONNECTED TO THE MAINS POWER SUPPLY OR TO ANY LOAD. • THE BATTERY PACK IS DISCONNECTED FROM THE UPS, FROM ANY OTHER BATTERY PACKS AND WITH THE BATTERY ISOLATOR OPEN ▪...
  • Page 19: Rack Version

    ACK VERSION The sequences of operations to be followed in order to transform the UPS, battery pack or transformer box into rack version are described below. BEFORE CARRING OUT THE FOLLOWING SEQUENCE OF OPERATIONS, ENSURE THAT: THE UPS IS COMPLETELY SWITCHED OFF AND NOT CONNECTED TO THE MAINS POWER SUPPLY OR TO ANY LOAD.
  • Page 20: Power Connection

    OWER ONNECTION ALL CHECK ON THE DATA PLATE THAT THE VOLTAGE OF THE BATTERY PACK IS THE SAME AS THAT ALLOWED BY THE UPS. ONNECTION Installation and wiring must be performed in accordance with the local electric laws/regulations and execute the following instructions by professional person.
  • Page 21 Terminal block wiring diagram of TRANSFORMER BOX System Connection Overlook NOTE 1: Make sure that the wires are connected tightly with the terminals. NOTE 2: Please install the output breaker between the output terminal and the load, and the breaker should be qualified with leakage current protective function if necessary.
  • Page 22 ● Pay highly attention to the rated battery voltage marked on the rear panel. If you want to change the numbers of the battery pack, please make sure you modify the setting simultaneously. The connection with wrong battery voltage may cause permanent damage of the UPS.
  • Page 23 There are 3 different output configurations on transformer box The follow figure shows the transformer box block diagram. The I/O terminal block is hardwired. Before making hardwire, please be sure the power is completely off. ⚫ Switch off utility power at the distribution point where the transformer box will be connected. Be absolutely sure there is no power.
  • Page 24 Transformer box with UPS and battery pack in Tower version Battery cable UPS to transformer box output cable Temperature signal cable...
  • Page 25: Use

    ONNECTIONS AND SWITCHING ON FOR THE FIRST TIME 1) Make sure the mains wire and breakers in the building are enough for the rated capacity of UPS to avoid the hazards of electric shock or fire. 2) Close the mains switch in the building after installation. 3) After a few moments, the UPS will switch on, the display will light up.
  • Page 26: Display Panel Messages

    ISPLAY PANEL MESSAGES This chapter describes, in detail, the various information that can be displayed on the LCD. STATUS MESSAGES ICON STATUS DESCRIPTION Fixed Indicates a fault Flashing Indicates a warning /The UPS is in stand-by mode Fixed Indicates regular operation Fixed The UPS is operating from the mains The UPS is operating from the mains, but the output voltage is not...
  • Page 27: Measurement Display Area

    EASUREMENT DISPLAY AREA It is possible to display the most important measurements regarding the UPS in sequence on the display. When the UPS is switched-on, the display shows the main voltage value. To display a different measurement, press the “SELECT” button repeatedly until the desired measurement appears. In the event of a fault/alarm (FAULT) or a lock (LOCK), the display will automatically show the type and code of the corresponding alarm.
  • Page 28: Lcd Configuration

    LCD C ONFIGURATION The section of the display shown in the figure displays the setting interface and allows the user to configure UPS parameters. presents setting item number presents selected configurations HOW TO CONFIGURE: • To enter the setting mode, press the “SEL” button at least 3 seconds when UPS is operated in STANDBY mode. •...
  • Page 29 ⚫ : ECO enable/disable Interface Description and Possible configurations Parameter: Enable or disable ECO function. You may choose the following two options: ⚫ ENA: ECO mode enable ⚫ DIS: ECO mode disable (Default) ⚫ : Bypass enable/disable when UPS is off Interface Description and Possible configurations Enable or disable Bypass function.
  • Page 30: Additional Functions

    ⚫ : Setting charge current Interface Description and Possible configurations Parameter 2: Set up charging current of the charger 001~004. CAUTION: This setting is only available for ER models. NEVER change this setting for standard models. Set the charging current of the charger from 1A to 4A. ⚫...
  • Page 31 REMOTE CONTROL TERMINAL BOARD The remote control terminal allows for implementation of the REPO function (Remote Emergency Power Off). The UPS is provided by the manufacturer with the REPO terminals short-circuited. For installation remove the short circuit and connect to the device's normally closed contact. In case of an emergency, if the stop device is used, the REPO control is opened and the UPS goes into stand-by mode and the load is completely disconnected.
  • Page 32: Software

    OFTWARE ONITORING AND CONTROL SOFTWARE The ViewPower software guarantees effective, intuitive UPS management, displaying all the most important information such as input voltage, applied load and battery capacity. It is also able to perform shutdown operations and send e-mails, text messages and network messages automatically when certain events, selected by the user, occur.
  • Page 33: Ups Configuration

    CONFIGURATION The table below illustrates all the possible configurations available to the user in order to best adapt the UPS to individual requirements. It is possible to perform these operations by using the LCD configuration and ViewPower software. FUNCTION DESCRIPTION DEFAULT POSSIBLE CONFIGURATIONS Selects the nominal output...
  • Page 34 OMMUNICATION PORTS On the back of the UPS (see UPS Views), the following communication ports are present: • RS232 connector • USB connector • Expansion slot for additional communication cards RS232 CONNECTOR RS232 CONNECTOR PIN # SIGNAL NOTES OMMUNICATION The UPS is equipped with an expansion slot for optional communication cards (see figure on right) which allows the device to communicate using the main communication standards.
  • Page 35 TROUBLESHOOTING Irregular UPS operation is most likely not an indication of a fault but due to simple problems or distraction. It is therefore advisable to consult the table below carefully as it summarises information which is useful for solving the most common problems.
  • Page 36 PROBLEM POSSIBLE CAUSE SOLUTION THE BUZZER SOUNDS CONTINUOUSLY AND THE TEMPERATURE OF Check that the temperature of the environment in which THE DISPLAY SHOWS THE DISSIPATORS INSIDE the UPS is located does not exceed 40°C. ONE OF THE FOLLOWING THE UPS IS TOO HIGH Whether the fan work normally.
  • Page 37 LARM CODES Using a sophisticated self-diagnosis system, the UPS is able to check its own status and any anomalies and/or faults which may occur during normal operation and display them on the display panel. If there is a problem, the UPS signals the event by showing the code and the type of active alarm on the display (FAULT and/or LOCK).
  • Page 38 LOCK alerts are normally preceded by an alarm signal and their scale leads to the power-off of the inverter and the load being powered by the bypass line (this procedure is excluded for locks due to serious, persistent overloads and short circuits).
  • Page 39 TECHNICAL DATA UPS MODELS 6KVA 10KVA INPUT 208/220/230/240 (1Φ; 1W+N+PE) Nominal voltage [Vac] Maximum operating voltage [Vac] Maximum: 300 Vac Input threshold Minimum: 176 Vac @ load 100% 110Vac @ load 60% Nominal frequency [Hz] 50/ 60 BATTERY Recharge time(standard version) <...
  • Page 40 Dimensions W x D x H [mm] 438x 607 x 131 Weight [Kg] TRANSFORMER BOX 6KVA 10KVA Input voltage [Vac] 208/240 Output voltage [Vac] 120V (X2)isolated /240V (X1)isolated Input Connection Hardwired Terminal Block Hardwired Terminal Block Output Outlets 87A/300V X 4 and plug receptacles(2) L14-30R; (8) 5-20 R Dimensions W x D x H [mm] 438 x 645 x131...
