Technical specifications
9.2

Dimensional drawings

9.2.1 Dimensional drawing LMS100/LMS12x/LMS173/LMC12x
152
23.8
Min. 15

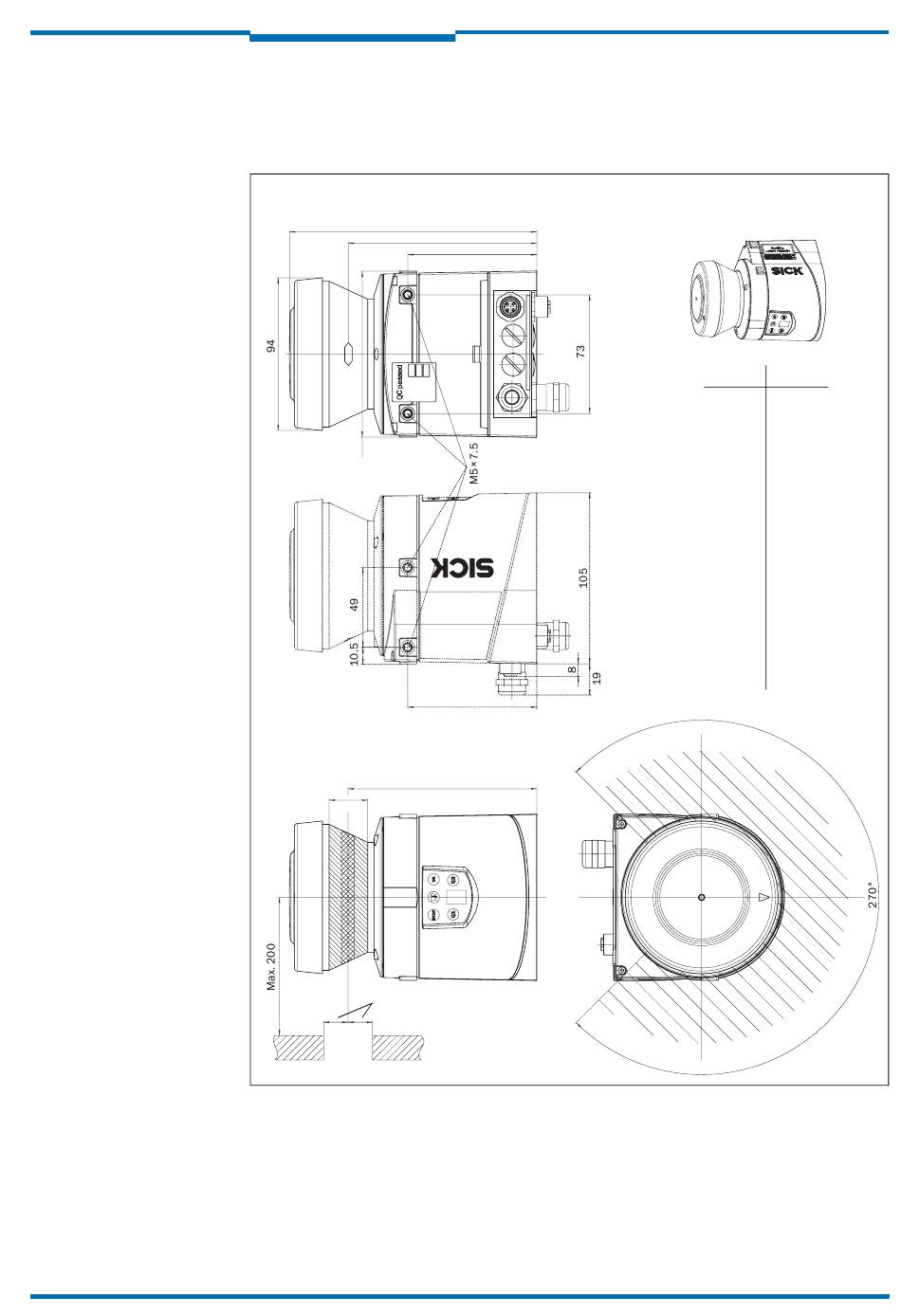

Fig. 60: Dimensional drawing LMS100/LMS12x/LMS173/LMC12x
© SICK AG · Germany · All rights reserved · Subject to change without notice
115.7
79.3
79.3
116
Chapter 9
All dimensions in mm
mm in
M5 × 7.5 M5 × 0.3
8 0.31
10.5 0.41
15 0.59
19 0.75
23.8 0.94
49 1.93
73 2.87
79.3 3.12
94 3.7
105 4.13
115.7 4.56
116 4.57
152 5.98
200 7.87
87
