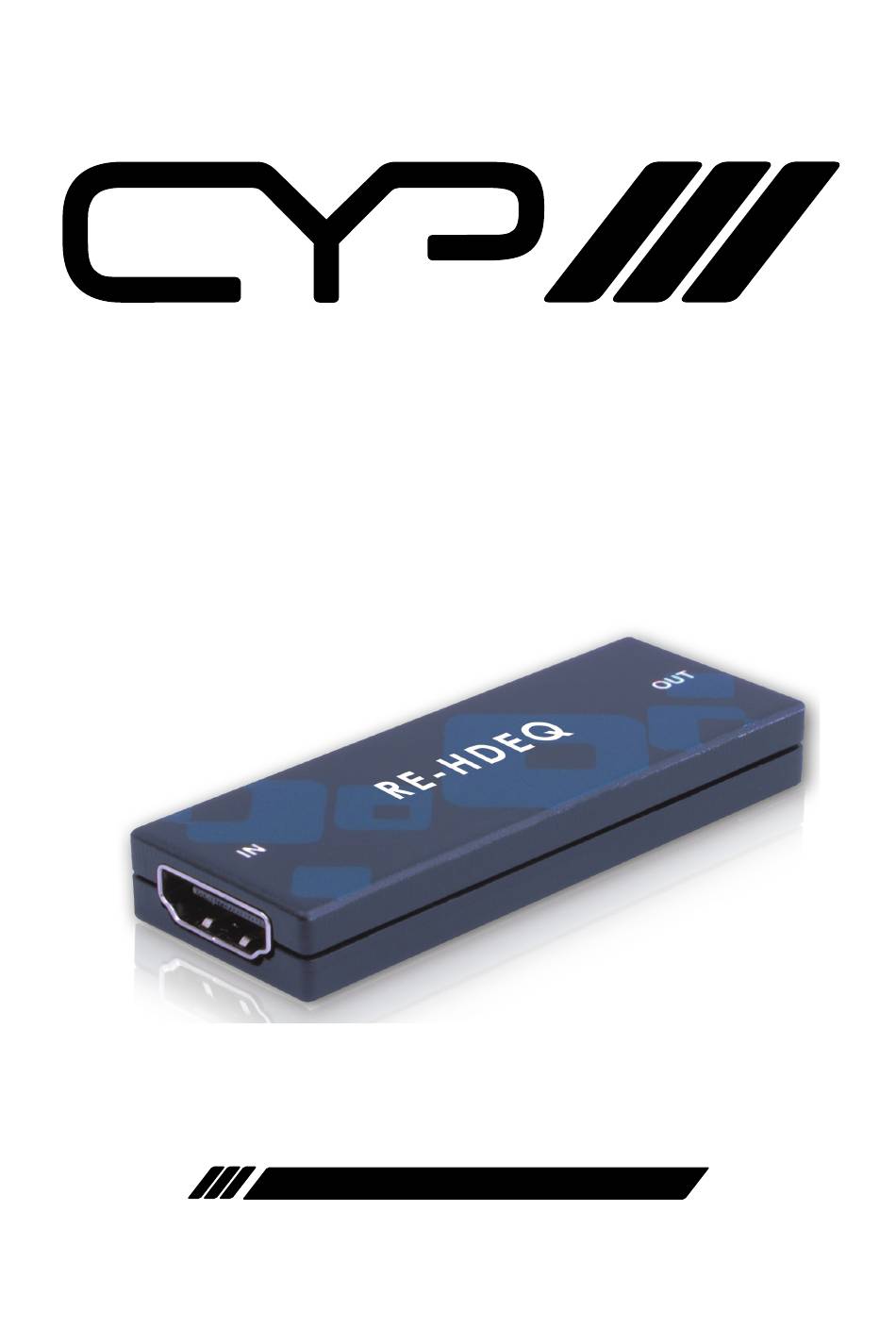

- Page 1 RE-HDEQ HDMI Repeater OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 7. Connection Diagram ......9 8. Specifications ........11 9. Acronyms ..........12... -
Page 6: Introduction
1. INTRODUCTION The RE-HDEQ is a mini HDMI equaliser enabling the user to extend their HDMI cable lengths up to 15m either side of the device. Resolution support up to 1080P 24fps/1920 × 1200(RB) and 3D compatibility makes this product a simple, yet very effective way of extending HDMI cable capabilities. -
Page 7: Features
24fps. Requires HDMI source to output power via HDMI cable to power Enhancer (2W as standard). RE-HDEQ is capable of receiving and transmitting 2.25Gbps. Supports HDMI cable distance of 15m either side of the device at full 1080p. No PSU required 6. -
Page 8: Connection Diagram
(Blu-ray Player HDMI Cable (0.5m) RE-PI HDMI IN Power Inserter (Optional) HDMI OUT HDMI Cable (Up to 15m) RE-HDEQ HDMI Cable (Up to 15m) HDMI Splitter HDMI OUT 1 HDMI OUT 2 (Optional) AV Receiver HDMI Cable (0.5m) HDMI IN... -
Page 9: Specifications
8. SPECIFICATIONS Frequency bandwidth 2.25 Gbps (single link) Input Port 1×HDMI (Female type) Output port 1×HDMI (Female type) Output Resolution HDTV: 480i ~1080p@24/50/60 PC: VGA (640x480) ~ WUXGA/RB (1920×1200)) Input Cable Distance 15m / 8 or 12 bits Output Cable Distance 15m / 8 or 12 bits ±... -
Page 10: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Clock Rate Recovery HDMI High Definition Multimedia Interface TMDS Transition-minimised Differential Signaling HDMI High Definition Multimedia Interface... - Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.01...
