ALIBI ALI-NS2014VR Quick Installation Manual

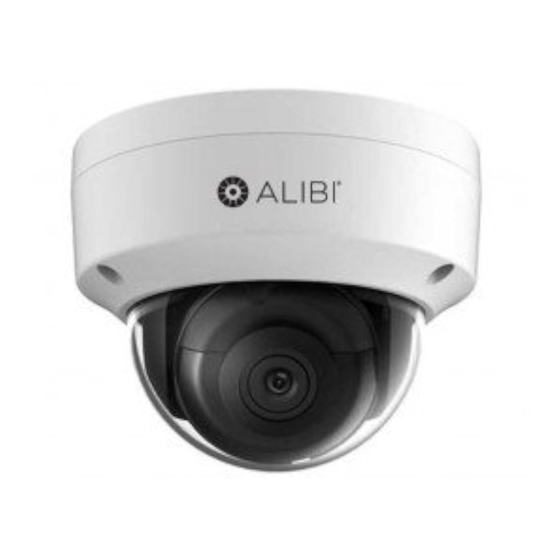

ALI-NS2014VR 4MP Vandalproof
IP Dome Camera
Quick Installation Guide
This document guides you through the basic steps to install and configure the ALI-NS2014VR IP dome
camera. This camera features:
1/2.5" 2560 × 1440 pixel Progressive Scan CMOS
•
Low light .008 Lux color
•
H.265+ / H.265 / H.264 OVC / H.264 / MJPEG compression
•
120 dB Wide Dynamic Range
•
120 ft Full Frame Illumination Smart IR array
•
Supports onboard storage up to 128GB Max microSD (card not included)
•
IP67, IK10 rated
•
−22 °F ~ 140 °F temperature range
•
ONVIF Profile S & Profile G, ISAPI
•
For more information, refer to these documents - available from your equipment vendor:
ALIBI™ Tools Utility Installation software and User Manual
•
ALIBI™ Witness App for Android Quick Start Guide
•
ALIBI™ IP Camera Firmware User Manual (latest version) provided at:
•
AlibiSecurity.com/resources
Drop Cable
Mounting base
assembly
What's in the box
Your camera includes:
This document
•
Drill template
•
Waterproof Ethernet fitting
•
Mounting screws and wall inserts
•
Step 1. Install the camera
The camera includes hardware to install it directly
to a ceiling (horizontal surface) or wall (vertical
surface). The camera drop cable can be routed
through the mounting surface, or through the drop
cable channel in the base. To install the camera:
1. Remove the dome cover. Unscrew the three
captive screws, and then lift the cover off of
the mounting base assembly. A tether cable
may be attached to the dome and the base
assembly.
2. (Optional) Insert a microSD card in the slot. You can install a card with up to 128GB of storage.
1 www.observint.com
Ethernet connector w PoE
Power connector
microSD card slot
and Reset button
Camera gimbal,
Tilt hold screw
Black liner
Lens
Dome cover
Dome cover
screw (3)
Mounting hardware
Weatherproof
Ethernet
Fitting
microSD card slot
RESET button*
* To restore the camera with its default configuration (including user name, password, IP address, etc.) press and hold the Reset
button for 10 s when the camera is power on or rebooting.
3. Determine the best location for mounting the camera to the mounting surface. The mounting
surface should hold at least three times the weight of the camera.
4. Determine the best fasteners for mounting the camera to the mounting surface. The mounting
hardware provided is adequate for many surfaces.
5. Using the template provided or the camera mounting base as a template, mark the locations of
the holes for the mounting screws. Also mark the location of a hole for the camera drop cables
if needed.
6. Drill holes into the mounting surface as needed. Also, drill a hole for the drop cable, if needed.
7. Route extension cables from the power source and LAN switch (or LAN with PoE) to the
mounting location.
8. Connect the network LAN and power extension cables to the camera drop cables:
a. Connect the Ethernet LAN cable to the camera LAN drop cable. Protect the connection
from moisture and other contamination, if necessary. A Weatherproof Ethernet Fitting is
provided. Installation instructions for the fitting are included at the end of this document.
Camera
Network drop cable
from camera
Weatherproof Ethernet Fitting installed
Failure of the power or Ethernet connector due to moisture or another
!
contaminant is considered an installation error, which voids the warranty. If
installing this camera in a location such as an overhang, shop, garage, kitchen,
WARNING
etc. where high humidity or dust is present, seal these connections adequately.
b. If the camera is not powered using PoE (Power over Ethernet injector), connect the 12 Vdc
power cable to the camera drop cable. The polarity of the drop cable connector is shown
below.
Do not apply power to the camera at this time. Before applying power to the camera, ensure

that the polarity is correct. An incorrect connection may cause a malfunction and can damage
CAUTION
the camera.
9. Route the camera drop cable through the cable channel in the base, or through the hole in the
mounting surface, and the secure the camera to the mounting surface using appropriate screws.
Mounting
surface
10. Apply power to the camera through the 12 Vdc power cable or PoE injector, as configured.
Ethernet switch
Network cable from
router or switch
Mounting
screws (3)
