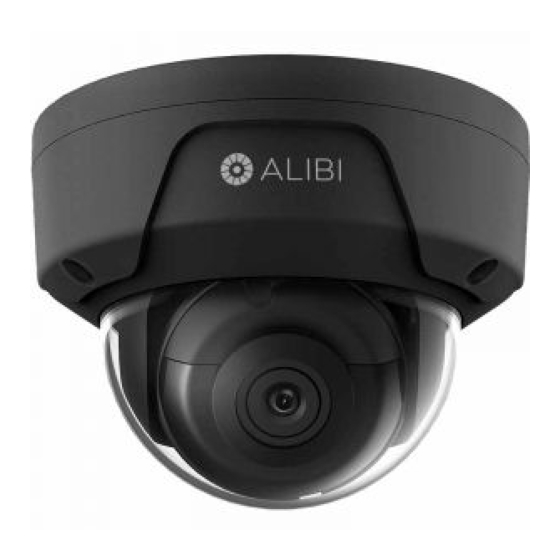

ALI-NS2036VR, ALI-NS2036VRB
6MP Vandalproof IP Dome Camera
Quick Installation Guide
This document guides you through the basic steps to install and configure the ALI-NS2036VR and
ALI-NS2036VRB IP dome camera. These cameras are identical except for the external color. These cameras
features:
6 MP 3072 × 2048 maximum resolution
•
STARLIGHT Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
•
2.8 mm lens with 99˚ field of view
•
H.265+ / H.265 / H.264OVC / H.264 / MJPEG compression
•
120 dB Wide Dynamic Range
•
120 ft Full Frame IR
•
Supports onboard storage up to 128GB Max microSD (card not included)
•
IP67, IK10 rated, −22 °F ~ 140 °F temperature range
•
ONVIF Profile S & Profile G, PSIA, CGI, ISAPI
•
For more information, refer to these documents - available from your equipment vendor:
ALIBI™ Witness 2.0 App for Android Quick Start Guide
•
ALIBI™ IP Camera Firmware Version 5.4 User Manual (or later) provided at:
•
AlibiSecurity.com/resources

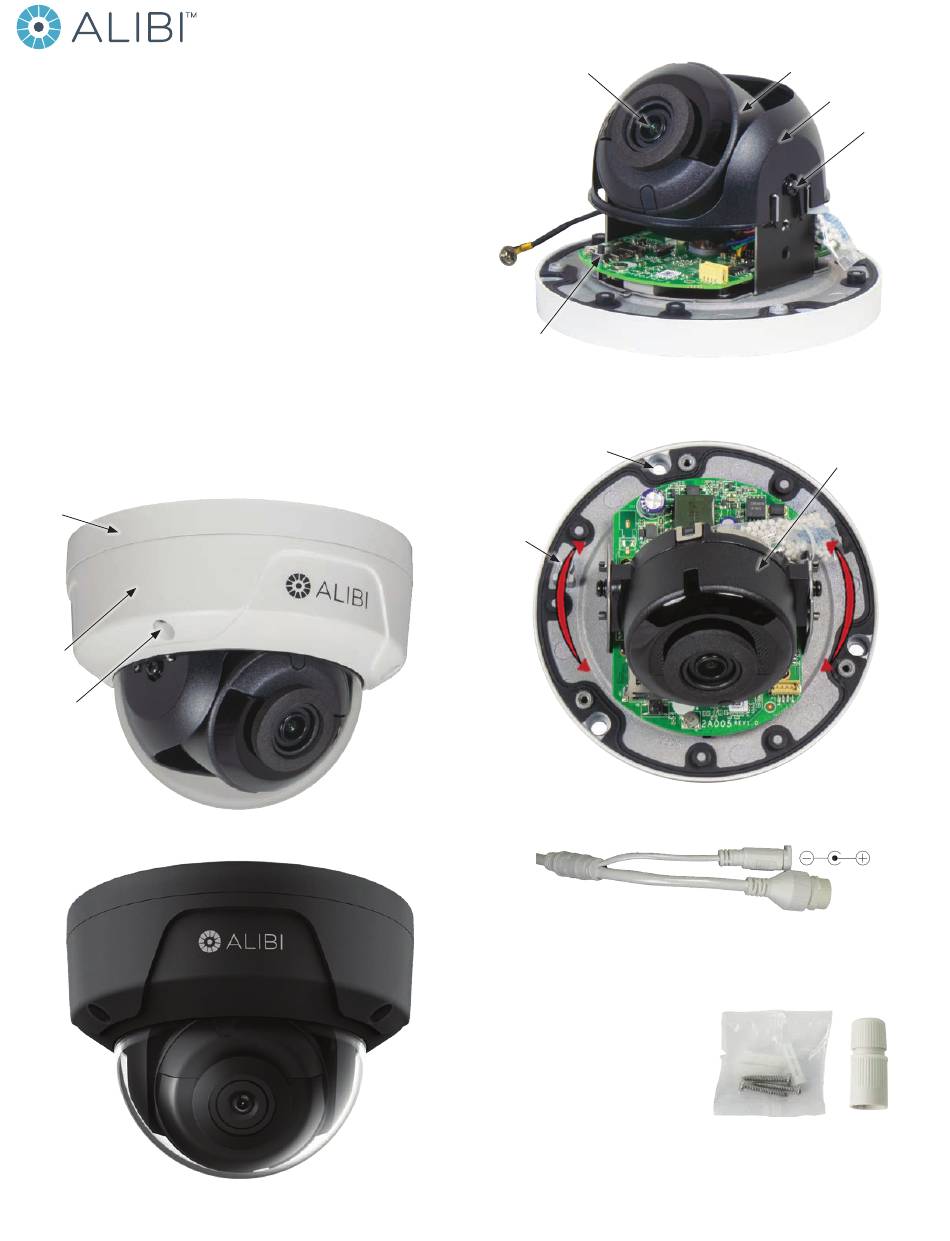

Mounting base
assembly
Dome cover
Dome cover
screw (3)
ALI-NS2036VR camera (white)
ALI-NS2036VRB camera (black)
www.observint.com
1
Lens
Safety cable
(attaches to
dome cover)
microSD card slot
and Reset* button
* Reset: To restore the camera with its default configuration (including user name, password, IP address, etc.) press and hold
the Reset button for 10 s when the camera is power on or rebooting.
Camera without dome cover (dome disconnected)
Mounting screw holes (3)
Hole for security
cable screw
Camera top view without dome and black liner
What's in the box
Your camera includes:
This document
•
Drill template
•
Waterproof Ethernet fitting
•
Mounting screws and wall inserts
•
Security L-wrench
•
Cleaning cloth
•
Adapter plate
•
Step 1.
Install the camera
The camera includes hardware to install it directly to a ceiling (horizontal surface) or wall (vertical surface).
The camera drop cable can be routed through the mounting surface, or through the drop cable channel in
Camera module and
gimbal assembly
Black liner
Tilt lock screw (2)
Camera module and
gimbal assembly
12 Vdc power connector with protective plug
Ethernet drop cable (PoE capable)
Camera drop cable
Waterproof Ethernet Fitting
Mounting
hardware
ALI-NS2036VR-VRB_CQ
191204
