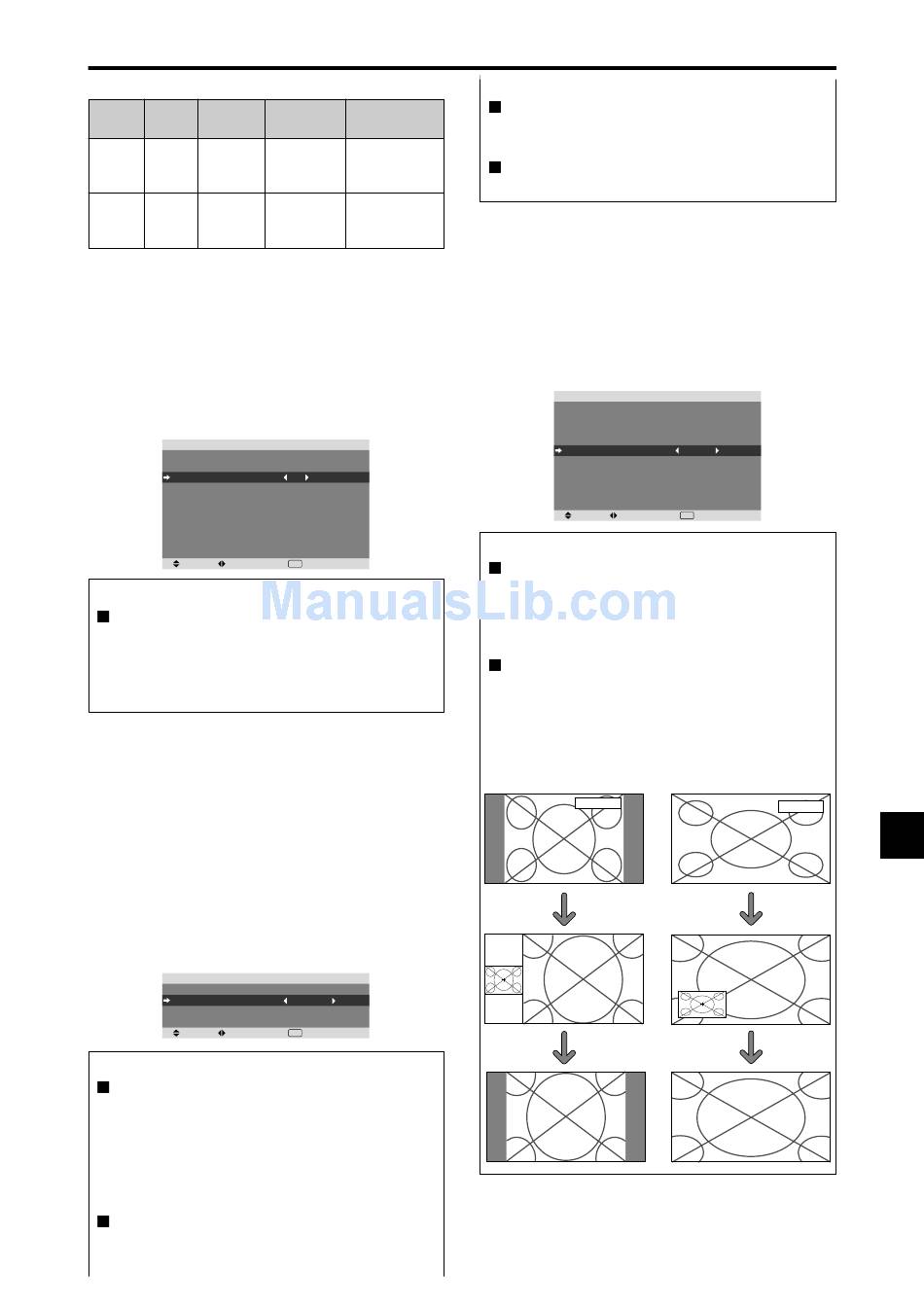

ON/STANDBY indicator

Power
ON/
Power
management
STANDBY
management
mode
indicator
operating status
On
Green
Not activated.
Off
Red
Activated.

Setting the Input Skip

When this is ON, signals which are not present will be
skipped over and only pictures whose signals are being
transmitted will be displayed.
This setting is valid only for the INPUT/EXIT button on
the unit.
Example: Set to "ON"
Set "ADVANCED OSM" to "ON" in the FUNCTION menu.
On "INPUT SKIP" of "FUNCTION" menu, select "ON".
FUNCTION
ADVANCED OSM
POWER MGT.
INPUT SKIP
SUB. PICTURE
ZOOM NAV
PICTURE FREEZE
PDP SAVER
CLOSED CAPTION
CAPTION CONT.
PWR. ON MODE
SEL.
ADJ.
Information
INPUT SKIP settings
OFF: Regardless of the presence of the signal, scan
and display all signals.
ON: If no input signal is present, skip that signal.
* "SETTING NOW" will appear during the input search.
Removing the sub screen area when there is
no input signal detected for the sub screen
This function automatically removes the black frame of
the sub screen when there is no sub screen input signal.
This feature is available only when the picuture-in-picuture
mode is selected.
Example: Setting "DISPLAY" to "FADE"
Set "ADVANCED OSM" to "ON" in the FUNCTION menu.
On "SUB. PICTURE" of "FUNCTION" menu, press the
MENU/ENTER button.
The "SUB. PICTURE" screen appears.
Adjust the items.
SUB. PICTURE
SUB. P DETECT
DISPLAY
SUB. P RATE
SEL.
ADJ.
Information
SUB. PICTURE Function
* Loss of the input signal means a condition in which the
video signal and the sync signal are not present.
* Under conditions in which the sub screen has
disappeared, the ZOOM NAV and PICTURE FREEZE
functions will not work. The WIDE button will not
function either.
SUB. P DETECT setting
AUTO: The black frame disappears 3 seconds after the
input signal is lost.
Description
Turning the picture
back on
Horizontal and vertical
Picture already on.
synchronizing signals
are present from the
computer.
Horizontal
and/or
Operate the keyboard or
vertical synchronizing
mouse.
The
signals are not sent
reappears.
from the computer.
:
OFF
:
OFF
:
ON
:
BTM LEFT
:
S BY S1
:
MANUAL
:
OFF
:
LOW
EXIT
RETURN
:
AUTO
:
FADE
:
100%
EXIT
RETURN
OFF: Turns off the SUB. PICTURE function.
DISPLAY setting
NORMAL: The sub screen is displayed consistently.
FADE: The sub screen fades in.
SUB. P RATE setting
Set the transparency of the sub screen.
Displaying the entire image during DIGITAL
ZOOM operations
Use this function to display the entire image within the
sub screen together with an enlarged image on the main
screen.
Example: Setting "ZOOM NAV" to "S BY S"
Set "ADVANCED OSM" to "ON" in the FUNCTION menu.
On "ZOOM NAV" of "FUNCTION" menu, select "S BY
S".
ADVANCED OSM
POWER MGT.
INPUT SKIP
SUB. PICTURE
ZOOM NAV
PICTURE FREEZE
PDP SAVER
CLOSED CAPTION
CAPTION CONT.
PWR. ON MODE
SEL.
ADJ.
Information
ZOOM NAV Function
* This feature does not function during multi screen mode.
* This feature does not function while PICTURE FREEZE
is operating.
* Providing a 2-screen display will cancel this function.
ZOOM NAV settings
OFF: Will not show the entire image on the sub screen.
S BY S: Will show the entire image on the sub screen
of side-by-side mode.
BTM LEFT~TOP LEFT: Will show the entire image
on the sub screen of picture-in-picture mode.
Side-by-Side
RGB/PC
Zoom+/- button
SINGLE button

Displaying still images in the sub screen

This feature enables display in the sub screen of still images
captured by pressing the ACTIVE SELECT button.
Example: Setting "PICTURE FREEZE" to "BTM
LEFT"
En-27
FUNCTION
:
OFF
:
OFF
:
OFF
:
S BY S
:
S BY S1
:
MANUAL
:
OFF
:
LOW
RETURN
EXIT
Picture-in-Picture
RGB/PC
