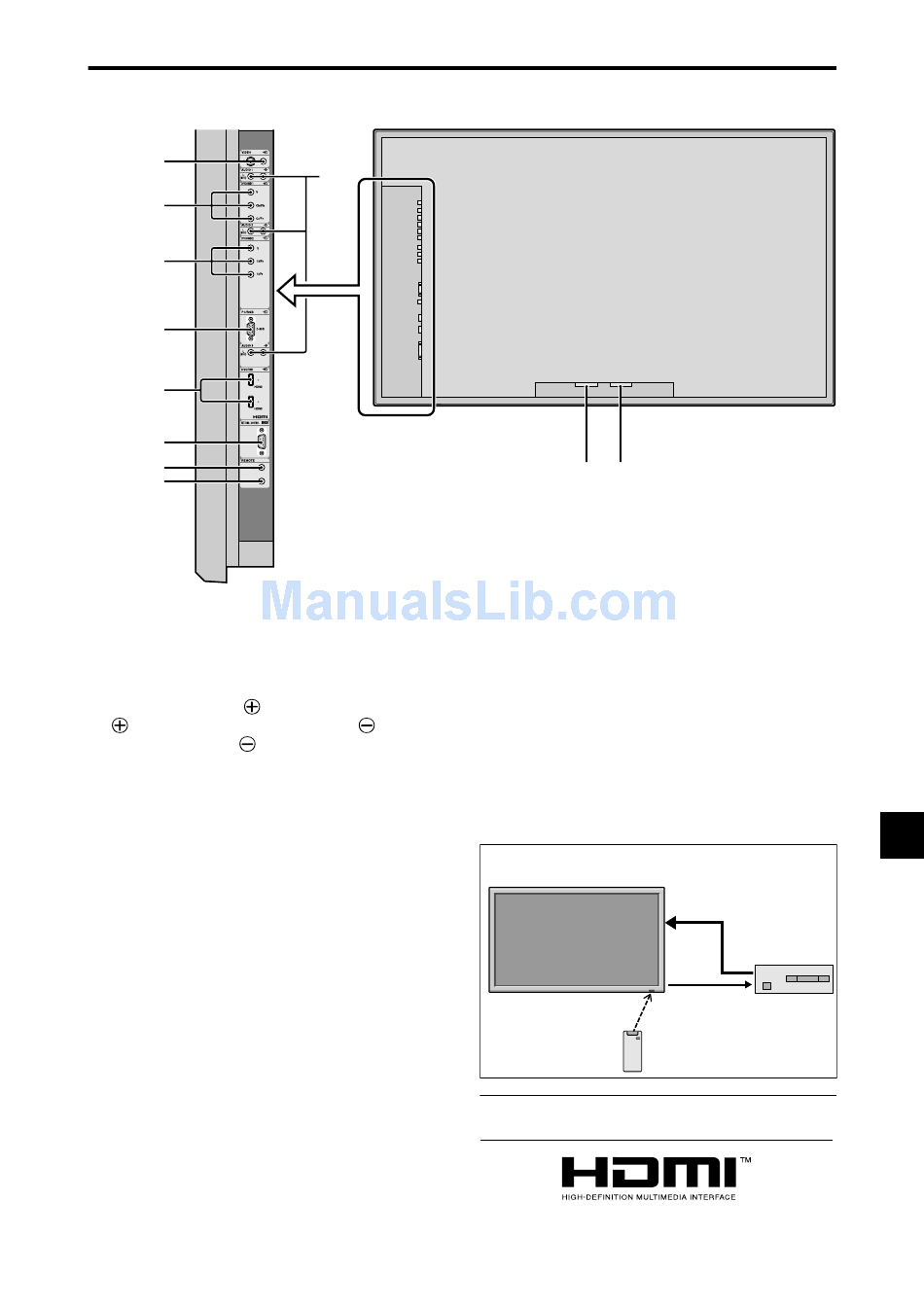

Rear View/ Terminal Board
A AC IN
Connect the included power cord here.
B EXT SPEAKER L and R
Connect speakers (optional) here. Maintain the correct
polarity. Connect the
EXT SPEAKER terminal and the
speaker wire to the
EXT SPEAKER terminal on
both LEFT and RIGHT channels.
Please refer to your speaker's owner's manual.
C VIDEO1, 2 (RCA, S-Video)
Connect VCR's, DVD's or Video Cameras, etc. here.
D AUDIO1, AUDIO2, AUDIO3
These are audio input terminals.
The input is selectable. Set which video image
corresponds to the audio input from the audio menu
Connect DVD's, High Definition or Laser Discs, etc.
You can connect DVDs, High Definition sources, Laser
Discs, etc. here.
G PC/RGB (D-Sub)
Connect an analog RGB signal from a computer, etc.
(positive) speaker wire to the
H DVD/HD3, DVD/HD4 (HDMI)
Connect a digital signal from a source with a HDMI
output. See "Specifications" on "Model Information".
EXTERNAL CONTROL (D-Sub)
This terminal is used when operating and controlling
the monitor externally with a control system (by RS-
J REMOTE IN* (DC +5V)
K REMOTE OUT* (C-MOS DC +5V)
Use these terminals to control external equipment.
Connection Example: Connecting a TV tuner
* The 1/8 Stereo Mini cable must be purchased separately.
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
Carrier fHz: 38kHz
