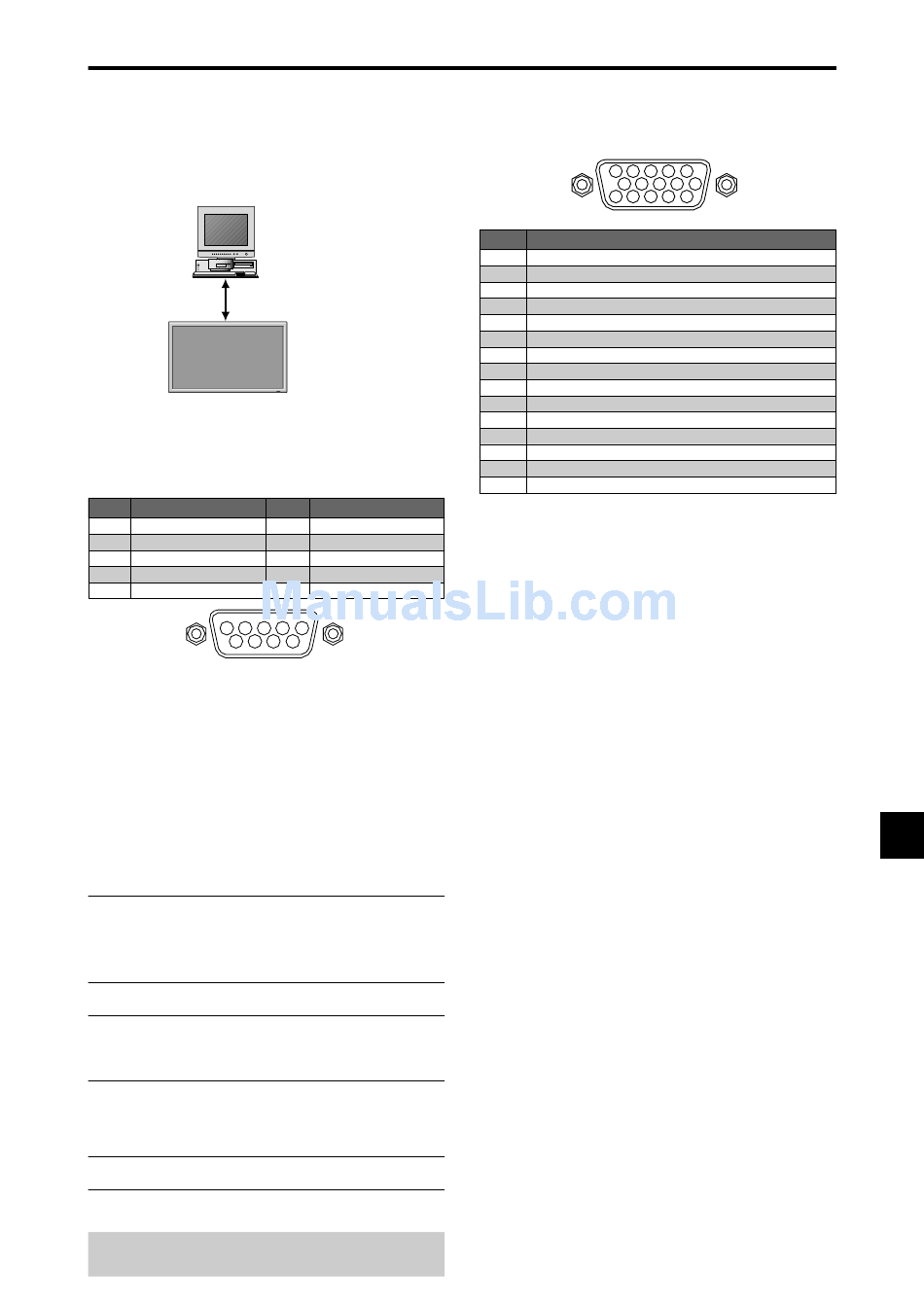

External Control Pin Assignments

Application

These specifications cover the communications control of
the plasma monitor by external equipment.

Connections

Connections are made as described below.
Display
Connector on the plasma monitor side: EXTERNAL
CONTROL connector.
Use a crossed (reverse) cable.

Type of connector: D-Sub 9-pin male

Pin No.
Pin Name
1
No Connection
2
RXD (Receive data)
3
TXD (Transmit data)
4
DTR (DTE side ready)
5
GND
1
2 3 4
7 8
6

Communication Parameters

(1) Communication system
(2) Interface
(3) Baud rate
(4) Data length
(5) Parity
(6) Stop bit
(7) Communication code

External Control Codes (Reference)

FUNCTION
CODE DATA
Power ON
9FH 80H 60H 4EH 00H CDH
OFF
9FH 80H 60H 4FH 00H CEH
Input Switch Video1 (RCA)
DFH 80H 60H 47H 01H 01H 08H
Video2 (S-Video)
DFH 80H 60H 47H 01H 02H 09H
DVD/HD1 (RCA)
DFH 80H 60H 47H 01H 05H 0CH
DVD/HD2 (RCA)
DFH 80H 60H 47H 01H 06H 0DH
DVD/HD3 (HDMI)
DFH 80H 60H 47H 01H 0EH 15H
PC/RGB (mini D-sub 15-pin) DFH 80H 60H 47H 01H 07H 0EH
DVD/HD4 (HDMI)
DFH 80H 60H 47H 01H 1AH 21H
Audio Mute
ON
9FH 80H 60H 3EH 00H BDH
OFF
9FH 80H 60H 3FH 00H BEH
Picture Mode NORMAL
DFH 80H 60H OAH 01H 01H CBH
THEATER 1
DFH 80H 60H OAH 01H 02H CCH
THEATER 2
DFH 80H 60H OAH 01H 03H CDH
DEFAULT
DFH 80H 60H OAH 01H 04H CEH
BRIGHT
DFH 80H 60H OAH 01H 05H CFH
Screen Mode STADIUM
DFH 80H 60H 51H 01H 02H 13H
ZOOM
DFH 80H 60H 51H 01H 03H 14H
NORMAL
DFH 80H 60H 51H 01H 04H 15H
ANAMORPHIC
DFH 80H 60H 51H 01H 05H 16H
14 : 9
DFH 80H 60H 51H 01H 09H 1AH
2.35 : 1
DFH 80H 60H 51H 01H 0AH 1BH
Auto Picture ON
DFH 80H 60H 7FH 03H 03H 09H 00H 4DH
OFF
DFH 80H 60H 7FH 03H 03H 09H 01H 4EH
Cinema Mode ON
DFH 80H 60H C1H 01H 01H 82H
OFF
DFH 80H 60H C1H 01H 02H 83H
Note: Contact your local dealer for a full list of the
External Control Codes if needed.
External equipment
e.g., Personal computer
Pin No.
Pin Name
6
DSR (DCE side ready)
7
RTS (Ready to send)
8
CTS (Clear to send)
9
No connection
5
9
Asynchronous
RS-232C
9600 bps
8 bits
Odd
1 bit
Hex
mini D-Sub 15-pin connector
(Analog)
5
10 9
15 14 13 12 11
Pin No.
1
Red
2
Green or sync-on-green
3
Blue
4
No connection
5
Ground
6
Red ground
7
Green ground
8
Blue ground
9
No connection
10
Sync signal ground
11
No connection
12
Bi-directional DATA (SDA)
13
Horizontal sync or Composite sync
14
Vertical sync
15
Data clock
En-31
PC/RGB
4
3
2
1
8
7
6
Signal (Analog)
