Kartsana Silver TG-1100 Instruction Manual

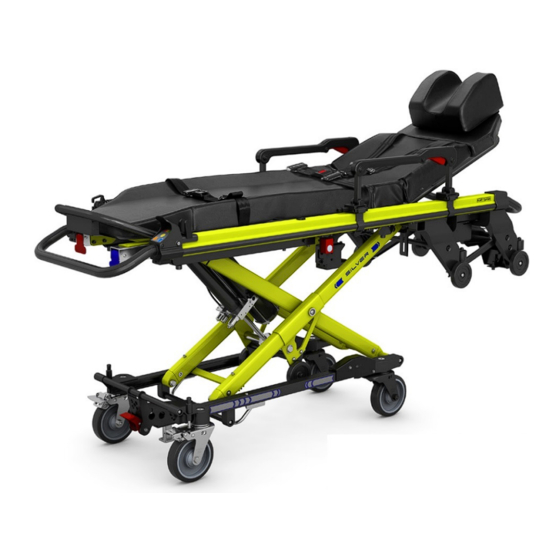

Electric stretcher
Hide thumbs

Advertisement

Quick Links

Download this manual
Silver Series
ELECTRIC STRETCHER SILVER
Model TG-1100
INSTRUCTIONS MANUAL
Read these maintenance instructions
before using the product and keep them
for future reference
C/ Narcís Monturiol, 34
08192 Sant Quirze del Vallès
BARCELONA
TEL. 93 714-49-24
ventas@kartsana.com
www.kartsana.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Silver TG-1100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kartsana Silver TG-1100

Summary of Contents for Kartsana Silver TG-1100

  • Page 1 C/ Narcís Monturiol, 34 08192 Sant Quirze del Vallès BARCELONA TEL. 93 714-49-24 ventas@kartsana.com www.kartsana.com Silver Series ELECTRIC STRETCHER SILVER Model TG-1100 INSTRUCTIONS MANUAL Read these maintenance instructions before using the product and keep them for future reference...
  • Page 2 OPERATING AND HANDLING SILVER STRETCHER Rev. 4 28.11.22...
  • Page 3 OPERATING AND HANDLING SILVER STRETCHER ÍNDICE 1. INTRODUCTION 1.1. F OREWORD 1.2. I NTENDED USE OF PRODUCT 1.3. R ESPONSIBILITY AND WARRANTY 1.4. S PECIFICATIONS 1.5. A TTENTION 1.6. S UMMARY OF SAFETY PRECAUTIONS 2. INSTRUCTIONS MANUAL 2.1. T SILVER ECHNICAL SPECIFICATIONS STRETCHER 2.2.
  • Page 4 OPERATING AND HANDLING SILVER STRETCHER 4.6. D ISPOSAL 5. EXPLODED SILVER STRETCHER 6. ACCESSORIES Rev.4 28.11.22...
  • Page 5 Manual operation is possible when potential faults in the automated system occur. The SILVER stretcher model must be joined to the ambulance using the KARTSANA R-1100 rail. This stretcher has been tested according to the regulation UNE-EN 1789.
  • Page 6 SILVER STRETCHER 1.2. Intended use of product The Silver TG-1100 is a powered stretcher, which is intended to support and transport the entire body of human patient. The battery-powered electro-hydraulic lift system is intended to help reduce the effort required by the operator to raise and lower the stretcher. The device is designed to support patients in horizontal position or sitting position and facilitate the transportation of medical equipment in emergency transport vehicles.

  • Page 7: Summary Of Safety Precautions

    For weights higher than 230kg it recommended to use the stretcher by a low position in patient transport, rising the stretcher until the necessary position just in the moment of introduce it into the ambulance Kartsana reserves the right to change specifications without notice. 1.5. Attention Through this sign, information is furnished on important safety measures for the correct use of the stretcher, to prevent accidents.
  • Page 8 - High obstacles such as curbing, steps or rough terrain can cause the stretcher to tip, possibly causing injury to the patient or operator. - The SILVER TG-1100 stretcher is designed to be compatible with R-1100 rail and is operator responsibility that these products work together.
  • Page 9 - Kartsana recommends that, prior to installation, the certified mechanic plan the placement of the safety hook in the rear of the vehicle.
  • Page 10 OPERATING AND HANDLING SILVER STRETCHER 2. INSTRUCTIONS MANUAL 2.1. Technical specifications SILVER stretcher Make sure that no damage is caused to the areas containing the stretcher mechanisms, to prevent them from malfunctioning. Aprox. Weight: 69 kg Trolley dimensions: Elevation in mm FOLDED LEGS Rev.4 28.11.22...
  • Page 11 2.2. Vehicle's configuration This installing instructions are recommended for the fixation of the assembly SILVER-SILVER (stretcher + rail) of Kartsana. The correct installation of the fastening system (rail) is providential for the appropriate use of the joint. You have to screw the fixed part...
  • Page 12 OPERATING AND HANDLING SILVER STRETCHER 2.3. Operating and handling the stretcher 2.3.1. Installing the battery The first step when working with SILVER is to install the 24 V battery which power the system. To do this, we place the battery opposite their housings at the front-right of the stretcher and push until it locks.
  • Page 13 OPERATING AND HANDLING SILVER STRETCHER 2.3.2. Starting and controlling the stretcher. To avoid potential injury to the patient and companions, do not place objects in the way of the moveable parts of the stretcher. It is also recommended to avoid having objects that stick out the ambulance.
  • Page 14 OPERATING AND HANDLING SILVER STRETCHER Once both batteries have been installed the system will be powered by battery 1, when this runs down, the system will automatically switch to battery 2. Both will recharge when the stretcher is on the rail and inside the ambulance. The level screen also shows us any possible system errors.

  • Page 15: Troubleshooting

    (ONLY use the charger Check that the batteries have The battery Voltage is supplied by KARTSANA or not suffered internal damage above 34V the stretcher for recharging while discharging caused by the batteries.)
  • Page 16 OPERATING AND HANDLING SILVER STRETCHER Battery(ies) damaged Replace with new battery(ies) Charge using the external Batteries very low charger Failure in recharging Contact technical support Contact technical support process Discharged battery(ies) Charge battery(ies) More than 22 seconds Failure in hydraulic system Contact technical support have elapsed in the Check mechanism in search of...
  • Page 17 OPERATING AND HANDLING SILVER STRETCHER 2.3.3. Adjustable reclining head Pull the red lever that is located below the head rest and move it to the required position. Then release the lever so that the head is locked in the required position. Rev.4 28.11.22...
  • Page 18 OPERATING AND HANDLING SILVER STRETCHER 2.3.4. Adjustable leg rest  Button for adjusting the leg inclination The required inclination of the leg rest can be obtained by pressing button A and moving the leg rest manually. Once the correct inclination has been reached, release button A to automatically lock the leg rest.
  • Page 19 OPERATING AND HANDLING SILVER STRETCHER This way the stretcher stays with the folded safety rail: The safety rail can be folded in the width direction too. You must pull the two triggers at same time to open the safety rail in width direction. Perform the same operation on both sides.
  • Page 20 OPERATING AND HANDLING SILVER STRETCHER 2.3.6. Intravenous drip stand. The stretcher comes with a drip holder located on the left-hand side. Unscrewing the silver knob “R” we lift the salt solution section to the vertical position perpendicular to the stretcher, then we twist the knob again. The length of said drip pole may be lengthened or shortened pressing a small positioner located on the inner side, raising the hook until the upper position is reached.
  • Page 21 OPERATING AND HANDLING SILVER STRETCHER 2.3.7. Way of fastening the safety belts to the patient. 2.3.7.1. Head belts. Place the clasps (C) in the position shown in the figure above. Pass the male part of the buckle (D) between the openings (C) until it is inserted into the female part B. Once all the parts are fastened, place them in the centre and tighten them adjusting the belt tension at ends A, E, F and/or G.
  • Page 22 OPERATING AND HANDLING SILVER STRETCHER 2.3.8. Dismantling-assembly of the stretcher belts. Anchoring with a plate. Loosen the screws as shown in the following figure. To assembly them just follow the same process but in reverse order. To assemble them just follow the process in reverse order, fastening the ‘A’ screws to the ‘B’ nuts inside the guides of the aluminium profile guide.
  • Page 23 OPERATING AND HANDLING SILVER STRETCHER 2.3.9.2. Head belts. The headrest belts must go through the holes in the headrest and must be secured in the panel crosspiece with a knot as shown in the following figure. The code numbers for our belts are: Rev.4 28.11.22...
  • Page 24 OPERATING AND HANDLING SILVER STRETCHER 2.3.10. Rear wheel brake lever. Activate the lever with your foot to enable the brake to lock the rear wheels. This lever locks both the lengthways and revolving movement of the trolley. Never leave a patient unattended on the stretcher or injury could result.
  • Page 25 OPERATING AND HANDLING SILVER STRETCHER Front wheels must be always blocked (position 1) when you load the stretcher on the rail. The omission of this, may cause injury to the patient or operator. Never apply the optional wheel lock(s) while a patient is on the stretcher (if you must move it).
  • Page 26 OPERATING AND HANDLING SILVER STRETCHER cam until it is detected for the limit switch. Once positioned so that we see the switch light on we will tighten the screw again to set the cam in this final position. Max. position H screw From then on, the stretcher will only rise as far as the elevation set.
  • Page 27 OPERATING AND HANDLING SILVER STRETCHER Once the stretcher has been lined up with the cross section of the rails, push the stretcher until its first position. Press the control folding button (the left one) to lift the stretcher legs until its maximum position.
  • Page 28 OPERATING AND HANDLING SILVER STRETCHER Push the stretcher towards the inside until the limit has been reached. Once this process has finished the stretcher should be perfectly secured on the rail. To be sure that the whole stretcher rail is correctly placed make sure that the unload lever is in the horizontal position.
  • Page 29 OPERATING AND HANDLING SILVER STRETCHER 2.3.13. Transferring the patient to the stretcher.  To transfer the patient to the stretcher: Bring closer the stretcher to the patient. Place the stretcher beside the patient and raise or lower the stretcher to the level of the patient.
  • Page 30 4. PRODUCT CARE & DISPOSAL 4.1. Servicing requests For any service requests or consultations regarding the use, maintenance, or installation of any KARTSANA product, please contact KARTSANA Customer Care Service. o Telephone #: +34 93 715 86 72 o E-mail: info@kartsana.com...
  • Page 31 OPERATING AND HANDLING SILVER STRETCHER 4.4. Maintenance 4.4.1. Precautionary Maintenance A periodic and correct maintenance guarantees the durability of the device. Creating a maintenance plan including periodic check-ups and establishing a responsible employee to carry it out is recommended. The person who carries out the precautionary maintenance of the appliance (user, manufacturer/supplier or third party) must meet or adhere to the following basic requirements: ...
  • Page 32 SILVER STRETCHER All maintenance other than lubrication, tightening of nuts and bolts and ordinary cleaning must be performed by KARTSANA or an authorized service centre. 4.4.2. Servicing Maintenance The person to whom the servicing of the product is entrusted must guarantee the following basic requirements: ...
  • Page 33 OPERATING AND HANDLING SILVER STRETCHER 5. EXPLODED STRETCHER SILVER TG-1100 Rev.4 28.11.22...
  • Page 34 OPERATING AND HANDLING SILVER STRETCHER Rev.4 28.11.22...
  • Page 35 OPERATING AND HANDLING SILVER STRETCHER Rev.4 28.11.22...
  • Page 36 OPERATING AND HANDLING SILVER STRETCHER Rev.4 28.11.22...
  • Page 37 OPERATING AND HANDLING SILVER STRETCHER 6. ACCESORIOS (*) The accessories have not been tested in dynamic tests. Rev.4 28.11.22...
  • Page 38 OPERATING AND HANDLING SILVER STRETCHER A part from the accessories, ther are two different configurations for the Silver stretcher. As we can see below: the first image , which only the front ones are swivel casters, and the second one, with 4 swivel csters.
  • Page 39 OPERATING AND HANDLING SILVER STRETCHER Rev.4 28.11.22...
  • Page 40 OPERATING AND HANDLING SILVER STRETCHER Technical Service C/ Narcís Monturiol, 34 08192 Sant Quirze del Vallès sat@kartsana.com BARCELONA TEL. +34 93 715-86-72 info@kartsana.com www.kartsana.com Rev.4 28.11.22...
