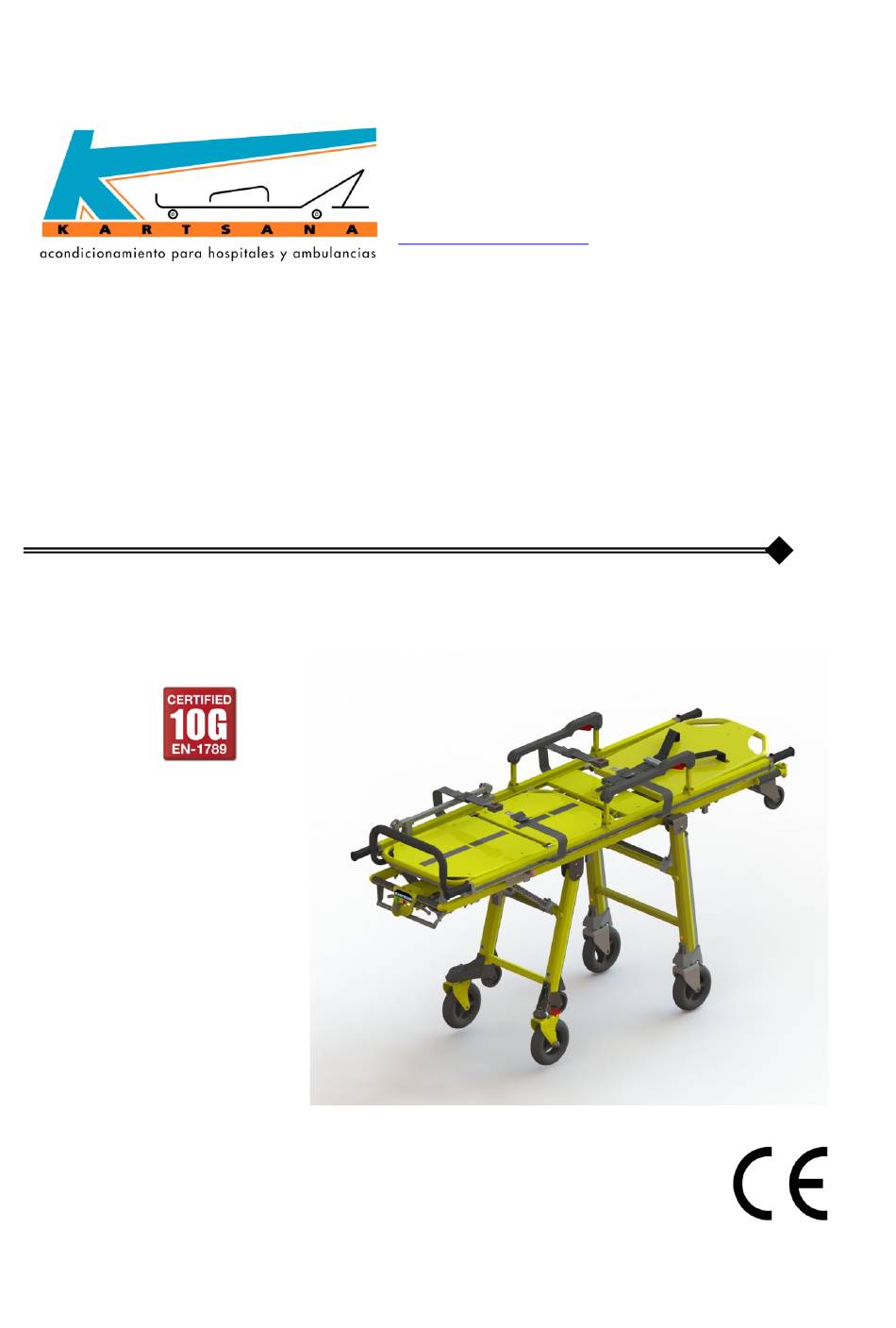

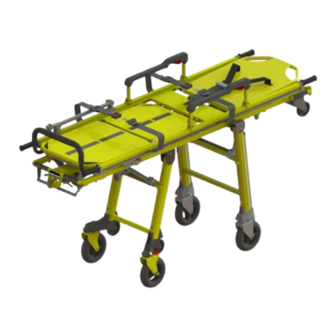

- Page 1 Pol. Ind. Can Carner. c/ Urgell, 1 08211 Castellar del Valles BARCELONA TEL. 93 714-49-24 Ventas@kartsana.com www.kartsana@kartsana.com INSTRUCTIONS MANUAL JUPITER TG –880 C COMPACT STRETCHER Read these maintenance instructions Before using the product and keep them For future reference. V1.1...
- Page 2 V1.1...
-
Page 3: Table Of Contents
CONTENTS 1.- Introduction Pages. 1.1.- Foreword …............................2 1.2.- Responsibility and warranty........................2 1.3.- Attention..............................2 2.- Instructions Manual 2.1.- Technical characteristics ……........................ 3 2.2.- Operating and handling the stretcher TG-880 C……………………………………….…………………..4 2.2.1.- Removable cuffs ……........................4 2.2.2.- Adjustable reclining headrest ..………………..……………………………………..……………..4 2.2.3.- Adjustable leg rest …........................ -
Page 4: Foreword
La Garantía will not cover the fault if that fault is due to incorrect installation, mistreatment or improper use of the stretcher. All repairs must be made by a technical service authorised by Kartsana or its respective representative. The manufacturer will not be liable for any damage to the stretcher-cart due to using any products other than original Kartasana products. -
Page 5: Instructions Manual
OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER 2.- INSTRUCTIONS MANUAL 2.1.- Technical characteristics Weight of the compact stretcher : 46 kg. Dimensions of the compact stretcher : Elevation in mm FOLDED LEGS 2.2.- Operating handling the stretcher To reduce the risk of injuries to the patient and accompanying persons in the event of an accident, it is advisable to avoid sharp edges and projecting parts inside the ambulance, paying special attention to the areas nearest the stretcher.To prevent injuries to limbs and other body... -
Page 6: Removable Cuffs
OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER 2.2.1.- Removable cuffs To remove the 4 grips from the ends, press the button located on the top of the grip, and then pull on the grip to extent its length until it reaches the stop. To return the cuff to its original position, press the top button again and push it as far as it will go in the original position. -
Page 7: Safety Rail
OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER Leg rest The adhesive on the part of the stretcher shown in the drawing on the left indicates the red button that must be pressed to adjust the position of the legs. ... -
Page 8: Intravenous Drip Stand
OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER Rail 2.2.5.- Intravenous drip stand. - Page 9 OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER The stretcher comes with a drip holder located on the left hand side. Using trigger “A” located at the bottom, the entire drip stand assembly is fastened to the side profile where desired. Unscrewing the silver knob “B” we lift the drip stand section to the vertical position perpendicular to the stretcher, then we twist the knob again.
-
Page 10: Method For Fastening The Safety Belt On The Patient's Stomach
OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER Place the clasps (C) in the position shown in the figure above. Pass the male part of the buckle (D) between the openings (C) until it is inserted into the female part B. Once the assembly is anchored in place, centre and tauten the assembly, adjusting the tension of the belt at ends A and/or E. -
Page 11: 1.- Position Of The Belts
OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER To dismantle the belts, pass the belt through the buckle slot as shown in the following figure. To assembly it, just follow the same process but in reverse order. - Anchoring with a plate. To dismantle the belts, pass the belt through the buckle slot as shown in the following figure. -
Page 12: 1.1.- Lateral Belts
OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER 2.2.8.1.1.- Lateral belts. The belts are positioned at the approximate distances shown in the figurebelow. 2.2.8.1.2.- Headrest belts. The headrest belts must go through the holes in the head rest and must be secured in the panel crosspiece with rings (09-027) as shown in the following figure. -
Page 13: Orange (Left)
OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER Rear blue control Orange (left): Folds/unfolds the intermediate positions of the front leg of the cart. Note: If the cart is to be folded, release the control just before the leg reaches the fully folded position. -
Page 14: Red (Pull Ring)
OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER the control so that when the leg reaches that postion, the click can be heard, indicating the leg is locked and thereby ensuring it is fixed in the original unfolded position. Front blue control •... -
Page 15: Brake Lever
OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER Achieved by moving the (blue or red) front control and the (blue) rear control to the first position. Trendelenburg position Achieved by moving the (blue or red) front controltothe first position. Countertrendelenburg position Achieved actuating the blue trigger on the... - Page 16 OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER Actuate the levers with your foot in order for the brake to lock the rear wheels. That special brake locks both the longitudinal and the rotating movement of the stretcher. Function of operating lever for 4- pivoting wheels (only with Jupiter C4) The front pivoting wheels are released or fixed by laterally switching the black lever to right or left.
- Page 17 The Kartsana rail anchors the stretcher-cart at the front by means of two anchoring points and one anchoring point at the rear (see the figures below) These anchoring points prevent the stretcher-cart from overturning in the event of an accident.
-
Page 18: Disinfection
OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER Anchoring point 3 3.-DISINFECTION When disinfecting the stretcher, use products that will not damage the surface of the materials and wipe with a cloth or something similar. If the surface to be disinfected is greased, regreased it after disinfecting it. - Page 19 OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER Review: Date: 23-04-13...
- Page 20 5- EXPLODED VIEW TG-880 C4 (ref. 90-0143-020) V1.1...
- Page 21 OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER LDM - TG-880C4 (90-0143-020) ITEM N. N. OF PARTS Description QTY. 01-0125-001 INTERMEDIATE GRIP CAST 400-860A 01-0130-001 LEG MALE FLANGE 860-400 01-0131-001 LEG FEMALE FLANGE 860-400 01-0232-002 MALE FLANGE FRONT LEG...
- Page 22 OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER 01-0233-002 FLANGE FEMALE FRONT LEG 03-0883-001 TUBE BENDING FOOTREST 05-0022-001 NYLON PART INTERIOR 05-0034-002 NYLON SAFETY STOP 860-A 05-0066-001 ROTATING WHEEL CAM S.400 AND S.860 05-0067-001 FIXED LEG CAM 400-800 05-0068-001 ROD CLAMP FEET 05-0072-001 ORANGE TRIGGER 400-800 05-0073-001...
- Page 23 ROUND ORANGE LABEL 14-0035-001 ROUND BLUE LABEL 14-0116-001 WHEEL LOCK LABEL 14-0120-001 SQUARE TUV LABEL 14-0122-001 KARTSANA LABEL BRAND RESIN 52-0047-001 HEAD LEFT BELT 116 52-0048-001 HEAD RIGHT BELT 116 52-0452-004 REAR ROTATING LEG S-860 DIN 52-0453-009 PREASSEMBLY FRONT LEG 880 A4...
- Page 24 OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER PRE ASSEMBLY COMPLETE FRAME (52-0495-020)
- Page 25 OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER LDM 52-0495-020 EN ITEM. Nº Nº OF PARTS Description QTY. 01-0112-001 S-860 DIN LEG FIXTURE CAST 02-0006-001 INTERIOR PLATE TRAVERSE 02-0283-001 THREADED PLAQUE FOR TABLE 02-0284-001 PLATE POINT INTERNAL FIXATION 3rd AXIS 03-0025-001 PLATEN TO STANDARD BELT 03-0524-001...
- Page 26 OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER PRE ASSEMBLY COMPLETE SUPERIOR FRAME (52-0493-002)
- Page 27 OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER...
- Page 28 OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER...
- Page 29 OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER...
- Page 30 OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER...
- Page 31 OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER (FOR STRETCHER TG-880 C2)(90-0132-025)
- Page 32 OPERATION AND HANDLING OF CART TG-880-C COMPACT STRETCHER...
