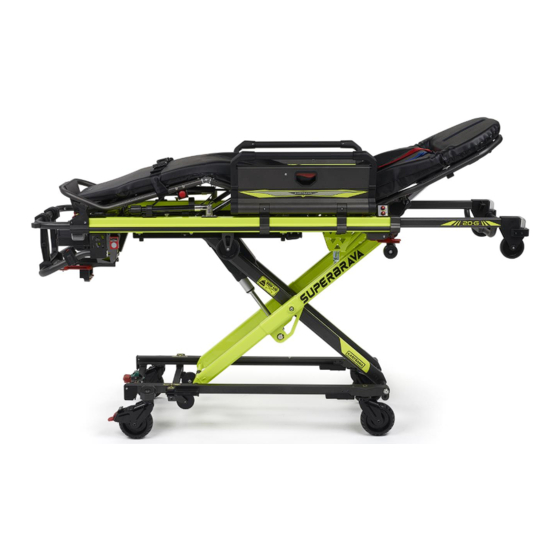

- Page 1 C/ Narcís Monturiol, 34 08192 Sant Quirze del Vallès BARCELONA 93 715 86 72 info@kartsana.com www.kartsana.com Superbrava Series SUPERBRAVA ELECTRIC STRETCHER Model: TG-2022 INSTRUCTIONS MANUAL Read these maintenance instructions before using the product and keep them for future references.
- Page 2 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER Rev.2 10.03.23...
-
Page 3: Table Of Contents
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER CONTENTS 1. INTRODUCTION ......................4 1.1. Foreword ........................4 1.2. Intended use of product ....................5 1.3. Responsibility and warranty ..................5 1.4. Specifications ......................6 1.5. Attention ........................6 1.6. Summary of safety precautions ..................7 2. - Page 4 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 7. ACCESORIES ....................... 37 8. ERRORS: ........................38 8.1. ERROR CODES ......................38 8.2. TROUBLESHOOTING ....................38 8.3. ENGINE PROTECTIONS .................... 40 8.4. AMBULANCE ENTRY ....................40 8.5. BATTERY CHARGE ....................40 Rev.2 10.03.23...
-
Page 5: Introduction
Manual operation is possible when potential faults in the automated system occur. The SUPERBRAVA stretcher model must be joined to the ambulance using the KARTSANA SUPERBRAVO (R-2022) rail. -
Page 6: Intended Use Of Product
Conditions and Warranty Certificate enclosed with the product). The warranty does not cover defects resulting from incorrect installation, misuse, or improper use of the stretcher. All repairs must be made by a technical service authorised by Kartsana or its respective representative. -
Page 7: Specifications
Heigt measured from ground level to main structure of the patient area. For bariatric patients it is recommended to use the stretcher by a low position in patient transport. Kartsana reserves the right to change specifications without notice. 1.5. Attention Throughout this manual, you will find 3 types of ISO 20417 signs. -
Page 8: Summary Of Safety Precautions
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 1.6. Summary of safety precautions Carefully read and strictly follow the warnings and cautions listed on these pages. Service only by qualified personnel. WARNINGS: Improper usage of the stretcher can cause injury to the patient or operator. - Page 9 Kartsana as replacement parts for internal components may result in increased emissions or decreased immunity of the SUPERBRAVA TG-2022 stretcher. CAUTIONS: - Changes or modifications to the unit not expressly approved by Kartsana could void the user’s authority to operate the system. - The stretcher can be set at any stretcher load height position.
- Page 10 - Kartsana recommends that, prior to installation, the certified mechanic plan the placement of the safety hook in the rear of the vehicle.
-
Page 11: Instructions Manual
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 2. INSTRUCTIONS MANUAL 2.1. Technical specifications SUPERBRAVA (TG-2022) stretcher Make sure that no damage is caused to the areas containing the stretcher mechanisms, to prevent them from malfunctioning. Stretcher weight: 78 kg SUPERBRAVA (mm) MEASURE WIDTH HEADREST... -
Page 12: Operating And Handling The Stretcher
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 2.2. Operating and handling the stretcher 2.2.1. Installing the battery The first step to work with the SUPERBRAVA is to place the 28V battery that powers the system. To do this we will place the battery in the connector incorporated in the stretcher. Red triggers to remove the battery To remove the battery, simultaneously press the red buttons and pull to unclip the battery... -
Page 13: Starting And Controlling The Stretcher
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 2.2.2. Starting and controlling the stretcher To avoid possible injury to the patient and attendants in the event of an accident, do not place objects in the path of the moving parts of the stretcher. It is also advisable to avoid protruding elements inside the ambulance. -
Page 14: Adjustable Reclining Headrest
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER Functions of the auxiliary control panel: The buttons on the auxiliary control keypad function as follows: Red button Right: The stretcher unfolds to the end of travel. It will fully deploy with a single press to the end of travel if the stretcher is positioned on the rail. -
Page 15: Extendable Back Rest Frame
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 2.2.4. Extendable back rest frame Before carrying out this action the back rest must be put at its most upright position. To extract or fold up the telescopic back rest frame, you must pull one of the two red triggers located on each side of the stretcher. -
Page 16: Adjustable Leg Rest
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 2.2.5. Adjustable leg rest Button for adjusting the leg inclination The required inclination of the leg rest can be obtained by pressing button A and moving the leg rest manually. Once the correct inclination has been reached, release button A to... -
Page 17: Guardrails
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 2.2.6. Guardrails The safety rails can be adjusted from a fully horizontal position to a 90-degree position. The system allows the guardrail to be fixed in the 5 intermediate positions. The upward movement from the horizontal position to the 90° position is carried out manually. Once the desired position is reached, the position of the railing is automatically fixed. -
Page 18: Poles
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 2.2.7. IV Poles The stretcher is equipped with two I.V. holders on both sides of the SUPERBRAVA stretcher. The IV pole is raised to its vertical position so that it can be fixed perpendicularly to the stretcher. - Page 19 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 2.2.8.2. Belly and foot belts Place female buckle A and male bucke B in the position shown in the figure below and insert the latter into the groove of the former. Once the assembly in anchored, centre and tighten the assembly by adjusting the belt tension by means of end C.
- Page 20 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 2.2.9.2. Head belts The head straps must be threaded through the holes int the head and secured to the cross member by means of a knot as shown in the following figures: The codes for our belts are: Rev.2 10.03.23...
-
Page 21: Rear Wheel Brake Lever
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 2.2.10. Rear wheel brake lever Activate the lever with your foot to enable the brake to lock the rear wheels. This lever locks both the lengthways and revolving movement of the trolley. 2.2.11. Lever to unlock revolving front wheels Pressing the red centre lever allows the wheels to turn freely. - Page 22 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER compromise the holding ability of the wheel lock, possibly resulting in injury to the patient or operator Wheel lock(s) are only intended to help prevent the stretcher from rolling while unattended and to aid in patient transfer. A wheel lock may not provide sufficient resistance on all surfaces or under high loads.
- Page 23 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER The stretcher is then raised to the set height at the latest. Check a loading maneuver and readjust if necessary. On uneven terrain or changes in gradient, the stretcher can be raised to its maximum travel by pressing the red button on the right and the yellow button on the right and yellow button on the left at the same time.
- Page 24 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER The front wheels must always be locked when loading the stretcher onto the rail. Failure to do so may damage important parts of the stretcher. Pull the right rear red trigger on the rail to unlock the mechanism and push the stretcher towards the inside until it reaches the end of the stroke.
-
Page 25: Transfer Of The Patient To The Stretcher
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER Do not disconnect the secondary battery from the ambulance when the ambulance is not in service to allow the stretcher battery charge between services. 2.2.13. Transfer of the patient to the stretcher ➢ To transfer the patient to the stretcher: Bring closer the stretcher to the patient. -
Page 26: Use Of Emergency Lever
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 3. EMERGENCY LEVER USE In the event of a malfunction of the hydraulic system, the stretcher can be operated manually. For the following procedure, it is essential that the stretcher is handled by two operators. With the stretcher in the unfolded position, pull the red trigger located next to the battery at the rear of the stretcher. -
Page 27: Product Care & Disposal
4. PRODUCT CARE & DISPOSAL 4.1. Servicing requests For any service requests or consultations regarding the use, maintenance, or installation of any KARTSANA product, please contact KARTSANA Customer Care Service. o Telephone #: +34 93 715 86 72 o E-mail: info@kartsana.com... -
Page 28: Maintenance
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 4.4. Maintenance 4.4.1. Precautionary Maintenance A periodic and correct maintenance guarantees the durability of the device. Creating a maintenance plan including periodic check-ups and establishing a responsible employee to carry it out is recommended. The person who carries out the precautionary maintenance of the appliance (user, manufacturer/supplier or third party) must meet or adhere to the following basic requirements:... -
Page 29: Service Maintenance
SUPERBRAVA STRETCHER All maintenance other than lubrication, tightening of nuts and bolts and ordinary cleaning must be performed by KARTSANA or an authorized service centre. 4.4.2. Servicing Maintenance The person to whom the servicing of the product is entrusted must guarantee the following... -
Page 30: Maintenance
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 5. MAINTENANCE Always inspect the mattress each time you clean the mattress cover. Follow hospital protocols and perform preventive maintenance each time the mattress cover is cleaned. If the mattress is affected, remove it from service and replace it to avoid cross-contamination. -
Page 31: Exploded Superbrava Stretcher
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 6. SUPERBRAVA STRETCHER EXPLODED Rev.2 10.03.23... - Page 32 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER Rev.2 10.03.23...
- Page 33 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER Rev.2 10.03.23...
- Page 34 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER Rev.2 10.03.23...
- Page 35 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER Rev.2 10.03.23...
- Page 36 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER Rev.2 10.03.23...
- Page 37 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER Rev.2 10.03.23...
-
Page 38: Accesories
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 7. ACCESORIES Rev.2 10.03.23... -
Page 39: Errors
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER 8. ERRORS In the event of an error, the stretcher becomes inactive: Folded stretcher indicator flashing. Blinking LEDs The error code is indicated by a combination of the four yellow error LEDs. To exit the Error status: Red UP button, red DOWN button and yellow Light button pressed simultaneously for 2sec. - Page 40 (Use ONLY the charger La Tensión de la batería self-discharge. Check that the supplied by KARTSANA or the es superior a 34V batteries have not suffered stretcher to recharge the internal damage by discharging batteries).
-
Page 41: Engine Protections
OPERATING AND HANDLING OF SUPERBRAVA STRETCHER Check mechanisms for The mechanism does not move excessive friction or interference freely between parts. Do not load the stretcher with Overloaded stretcher more than 320Kg. Discharged battery Charge battery Current greater than 48 A Check mechanisms for The mechanism does not move excessive friction or interference... - Page 42 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER For the second phase, it is only required that no errors have occurred. PHASE 1: Consists of 3 consecutive steps (must be completed to give the battery as charged): 1) START OF CHARGE → Charge at a constant current of 0.15C (750mA) until one of the following conditions is met: Voltage greater than 24 volts Maximum time of 20 minutes...
- Page 43 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER If the battery falls below 20 volts, the battery must be charged by the battery charger and not by ambulance. Rev.2 10.03.23...
- Page 44 OPERATING AND HANDLING OF SUPERBRAVA STRETCHER Technical Service C/ Narcís Monturiol, 34 08192 Sant Quirze del Vallès sat@kartsana.com BARCELONA TEL. +34 93 715-86-72 info@kartsana.com www.kartsana.com Rev.2 10.03.23...
