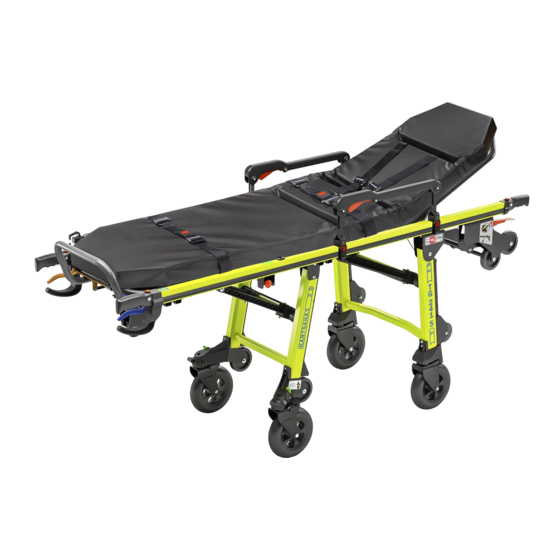

COMPACT STRETCHER SERIE TGM-241
Models TGM-241-S, TGM-241-M, TGM-241-L, TGM-241-XL
Please read the instruction manual before
usage and keep them for future reference.
INSTRUCTION MANUAL
C/ Narcís Monturiol, 34
08192 Sant Quirze del Vallès
BARCELONA
TEL. 93 714-49-24
ventas@kartsana.com
www.kartsana.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TGM-241 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kartsana TGM-241 Series

Summary of Contents for Kartsana TGM-241 Series

  • Page 1 C/ Narcís Monturiol, 34 08192 Sant Quirze del Vallès BARCELONA TEL. 93 714-49-24 ventas@kartsana.com www.kartsana.com INSTRUCTION MANUAL COMPACT STRETCHER SERIE TGM-241 Models TGM-241-S, TGM-241-M, TGM-241-L, TGM-241-XL Please read the instruction manual before usage and keep them for future reference.

  • Page 3: Table Of Contents

    OPERATION AND HANDLING OF THE TGM-241 SERIES CONTENTS 1.- INTRODUCTION 1.1.- F OREWORD 1.2.- R ESPONSIBILITY AND WARRANTY 1.3.- S PECIFICATIONS 1.4.- A TTENTION 1.5.- S UMMARY OF SAFETY PRECAUTIONS 2.- INSTRUCTIONS MANUAL 2.1.- T ECHNICAL SPECIFICATIONS 2.1.1.- T TGM-241-S / M / L / XL ECHNICAL SPECIFICATIONS 2.2.- O...
  • Page 4 OPERATION AND HANDLING OF THE TGM-241 SERIES Rev.3 20-12-17...

  • Page 5: Introduction

    1.1.- Foreword TGM-241 series is specially designed for the rescue and transportations of patients. TGM-241 series is and has been tested in accordance with the UNE-EN 1865 and UNE-EN 1789 standards. All the information regarding treatment, disinfection and maintenance is indicated, taking into consideration our current experience and know-how.

  • Page 6: Attention

    - High obstacles such as curbing, steps or rough terrain can cause the stretcher to tip, possibly causing injury to the patient or operator. - TGM-241 series is designed to be compatible with Kartsana models R-419 / R-450 -S / R-800 and R-900, and is operator responsibility that these products work together.
  • Page 7 - Kartsana recommends that, prior to installation, the certified mechanic plan the placement of the safety hook in the rear of the vehicle.

  • Page 8: Instructions Manual

    OPERATION AND HANDLING OF THE TGM-241 SERIES 2.- INSTRUCTIONS MANUAL TGM-241 series is adapted for mounting on Kartsana rails R-419, R-450-S inox, R-800 and R-900 To reduce the risk of injuries to the patient and accompanying persons in the event of an accident, it is advisable to avoid sharp edges and projecting parts inside the ambulance, paying special attention to the areas nearest to the stretcher.

  • Page 9: Operating And Handling The Stretcher

    OPERATION AND HANDLING OF THE TGM-241 SERIES 2.2.- Operating and handling the stretcher To prevent injuries to limbs and other body parts, make sure they are not within the range of the moving parts of the stretcher. Clarification: The front part of the stretcher corresponds to the head part.

  • Page 10: 3- Adjustable Leg Rest

    OPERATION AND HANDLING OF THE TGM-241 SERIES 2.2.3- Adjustable leg rest - Button for adjusting the leg inclination. The required inclination of the leg rest can be obtained by pressing button A and moving the leg rest manually. Once the correct inclination has been reached, release button A to automatically lock the leg rest.

  • Page 11: Intravenous Drip Stand

    OPERATION AND HANDLING OF THE TGM-241 SERIES 2.2.5.- Intravenous drip stand The stretcher comes with a drip holder located on the left hand side. With the “A” knob we can loosen and tighten the assembly where and when it is convenient.

  • Page 12: Method For Fastening The Safety Belts On The Patient

    OPERATION AND HANDLING OF THE TGM-241 SERIES 2.2.6.- Method for fastening the safety belts on the patient’s head and feet Place the clasps (C) in the position shown in the figure above. Pass the male part of the buckle (D) between the openings (C) until it is inserted into the female part B.

  • Page 13: Dismantling-Assembling The Stretcher Safety Belts

    OPERATION AND HANDLING OF THE TGM-241 SERIES 2.2.8.- Dismantling-assembling the stretcher safety belts  Anchoring with a knot To dismantle the belts, pass the belt through the slot in the buckle as shown in the following figure. To assembly it, just follow the same process but in reverse order.
  • Page 14 OPERATION AND HANDLING OF THE TGM-241 SERIES 2.2.8.1.- Position of the belts 2.2.8.1.1.- Lateral belts The belts are positioned at the approximate distances shown in the figure below: 2.2.8.1.2.- Head belts The belts must be passed through the holes in the head rest part and secured on the crosspiece of the panel with a knot.

  • Page 15: Control For Operating The Stretcher Legs

    OPERATION AND HANDLING OF THE TGM-241 SERIES 2.2.9.- Control for operating the stretcher legs 2.2.9.1.-Rear controls · Blue (right): Folds/unfolds the front leg of the stretcher. Blue lever · Orange (left) Folds/unfolds or activates the intermediate position of the rear leg of the stretcher.

  • Page 16: Intermediate Positions Of The Stretcher

    OPERATION AND HANDLING OF THE TGM-241 SERIES 2.2.9.2.- Lever front leg control It activates the intermediate positions of the front leg of the stretcher (the starting point is the unfolded position). Note: To return the leg to its original unfolded position, activate the front control and then raise that part of the stretcher manually so that the leg returns automatically.
  • Page 17 OPERATION AND HANDLING OF THE TGM-241 SERIES 1st Intermediate position: Hold the stretcher firmly with both hands to prevent it from making dangerous movements. Then the stretcher can also be inclined on one part (front or rear) by activating the controls as described above.
  • Page 18 OPERATION AND HANDLING OF THE TGM-241 SERIES Tredelenburg position To perform this manoeuvre, activate the brakes on the front wheels and place them in the position shown on the adhesive, before activating the red lever at the side. It is achieved by activating the intermediate position lever (red) located on the right- hand side of the stretcher.

  • Page 19: Brake Lever

    OPERATION AND HANDLING OF THE TGM-241 SERIES 2.2.11.- Brake lever Activate the red lever with your foot to enable the brake to lock the rear wheels. That special brake blocks both the longitudinal and the rotating movement of the stretcher.

  • Page 20: Mounting The Stretcher On The Ambulance Stretcher Holder

    In the event of not using the Kartsana rails, it is advisable that the front part of the stretcher cart be anchored at the end of the bar marked 12 in the exploded diagram...

  • Page 21: Desinfection

    OPERATION AND HANDLING OF THE TGM-241 SERIES 3.- DESINFECTION When disinfecting the stretcher, use products that will not damage the surface of the materials and wipe with a cloth or something similar. If the surface to be disinfected is greased, regreased it after disinfecting it.

  • Page 22: Exploded Views

    OPERATION AND HANDLING OF THE TGM-241 SERIES 5.- EXPLODED VIEWS 5.1.- TGM-241-S Rev.3 20-12-17...
  • Page 23 OPERATION AND HANDLING OF THE TGM-241 SERIES Rev.3 20-12-17...
  • Page 24 OPERATION AND HANDLING OF THE TGM-241 SERIES Rev.3 20-12-17...
  • Page 25 OPERATION AND HANDLING OF THE TGM-241 SERIES 14-0310-001 ETIQUETA PESO MAX. 250 Kg. SERIE 241 Rev.3 20-12-17...

  • Page 26: Tgm-241-M

    OPERATION AND HANDLING OF THE TGM-241 SERIES 5.2.- TGM-241-M Rev.3 20-12-17...
  • Page 27 OPERATION AND HANDLING OF THE TGM-241 SERIES Rev.3 20-12-17...
  • Page 28 OPERATION AND HANDLING OF THE TGM-241 SERIES Rev.3 20-12-17...
  • Page 29 OPERATION AND HANDLING OF THE TGM-241 SERIES 14-0310-001 ETIQUETA PESO MAX. 250 Kg. SERIE 241 Rev.3 20-12-17...

  • Page 30: Tgm-241-L

    OPERATION AND HANDLING OF THE TGM-241 SERIES 5.3.- TGM-241-L Rev.3 20-12-17...
  • Page 31 OPERATION AND HANDLING OF THE TGM-241 SERIES Rev.3 20-12-17...
  • Page 32 OPERATION AND HANDLING OF THE TGM-241 SERIES Rev.3 20-12-17...
  • Page 33 OPERATION AND HANDLING OF THE TGM-241 SERIES 14-0310-001 ETIQUETA PESO MAX. 250 Kg. SERIE 241 Rev.3 20-12-17...

  • Page 34: Tgm-241-Xl

    OPERATION AND HANDLING OF THE TGM-241 SERIES 5.4.- TGM-241-XL Rev.3 20-12-17...
  • Page 35 OPERATION AND HANDLING OF THE TGM-241 SERIES Rev.3 20-12-17...
  • Page 36 OPERATION AND HANDLING OF THE TGM-241 SERIES ETIQUETA PESO MAX. 250 Kg. SERIE 241 14-0310-001 Rev.3 20-12-17...
  • Page 37 OPERATION AND HANDLING OF THE TGM-241 SERIES The pieces that his number reference starts in 13-xxxx-xxx will be elements of fixation. The pieces that his number reference starts in 50-xxxx-xxx will be welding sets and it will be supplied like an inseparable set, not at loose parts.
  • Page 38 OPERATION AND HANDLING OF THE TGM-241 SERIES Rev.3 20-12-17...
  • Page 39 OPERATION AND HANDLING OF THE TGM-241 SERIES Rev.3 20-12-17...
  • Page 40 OPERATION AND HANDLING OF THE TGM-241 SERIES Sistema de gestión certificado Rev.3 20-12-17...
