Summary of Contents for REED R3500

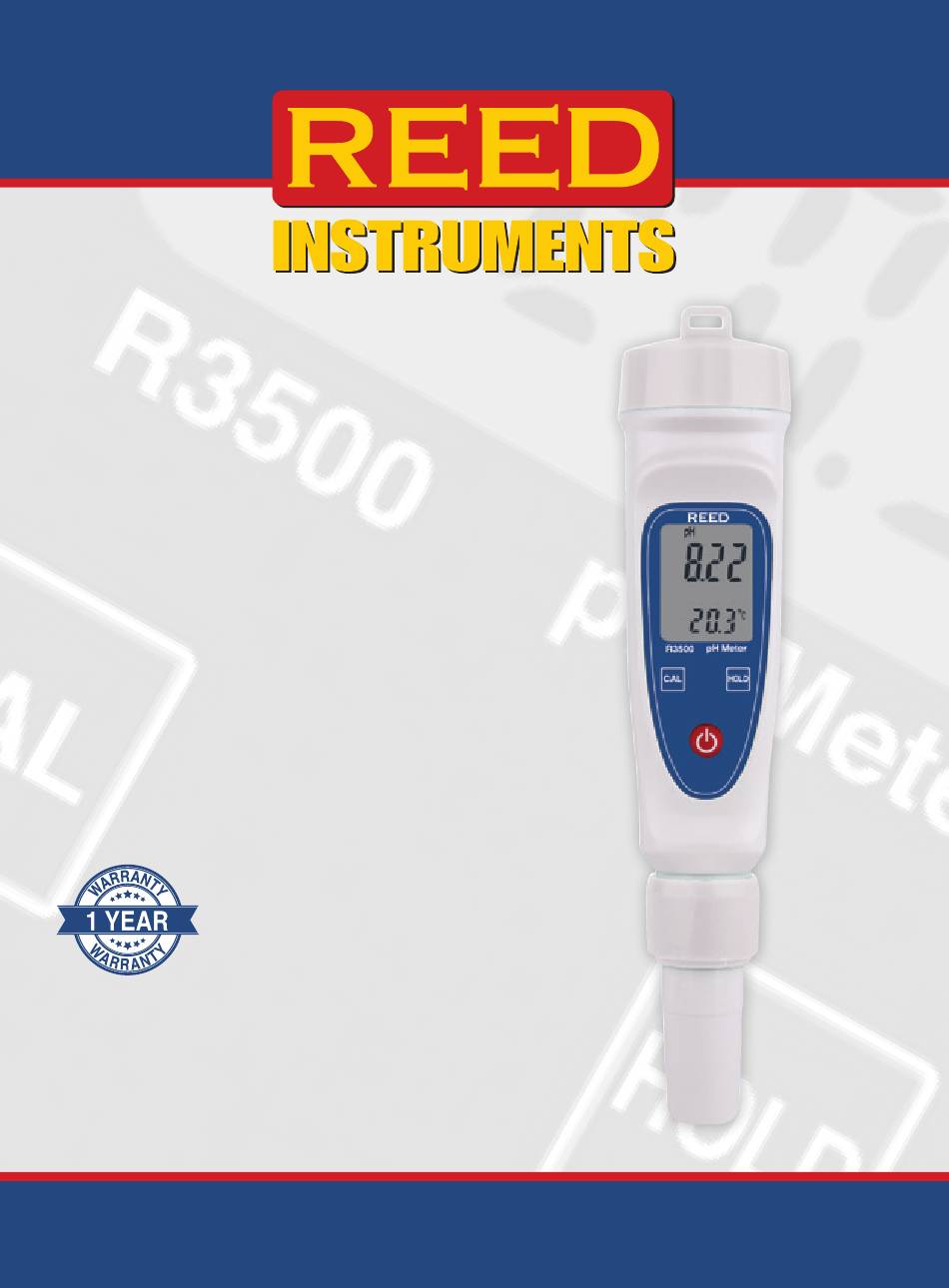

- Page 1 R3500 pH Meter Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Product Support ..................11 Introduction Thank you for purchasing your REED R3500 Pen Type pH Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Product Quality
Product Quality This product has been manufactured to meet stated product specifications. If a certificate of calibration is required please contact the nearest authorized REED distributor or authorized Service Center. Please note an additional fee for this service will apply. Safety Never attempt to repair or modify your instrument. -
Page 4: Specifications
0.00 to 14.00 pH Accuracy: ±0.02 pH Resolution: 0.01 pH General Specifications Display: Dual Display, LCD Data Hold: Auto Shut-Off: Yes (after approximately 10 minutes) Waterproof: Low Battery Indicator: Power Supply: 4 x LR44 Cell Batteries Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: 14 to 122°F (-10 to 50°C) Operating Humidity: 10 to 80% Dimension: 7.3 x 1.6 x 1.6" (185 x 40 x 40mm) Weight: 3.1oz (88g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 5: Instrument Description
Instrument Description 5. Power Button 1. Battery Compartment Cap 2. LCD Display 6. Electrode Collar 7. Electrode 3. CAL Button 4. HOLD Button REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 6: Operating Instructions
Data Hold Press the HOLD button to freeze the current reading on the display. While in this mode "Hold" will appear on the LCD display. Press the HOLD button again to resume normal operation. Over Range When the pH value is under "0" or over "14", the LCD display will indicate "L---" when under or "H---" when over. If the electrode is not placed in any solution, the pH value will indicate "- - - -" or "0.00". continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 7: Auto Power Off
"CAL" will now begin to blink indicating the calibration process has begun. Note: If "Err" is displayed after holding the CAL button, make sure a valid pH buffer solution is being used, and that the electrode is not dried out. The pH meter will then automatically identify the buffer solution and the current temperature. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Replacing The Electrode
If you can no longer calibrate the electrode, it is time to replace it. Follow the steps below to replace the electrode: Remove the electrode protective cap. Unscrew the electrode collar clockwise, and remove it completely. Pull the pH electrode module out. Carefully plug a new electrode module (R3500-ELECTRODE) into the socket. Tighten the electrode collar to ensure a good seal and replace the cap. Battery Replacement When the low battery icon appears on the LCD, the batteries must be replaced. -
Page 9: Applications
• Aquariums • Wastewater monitoring • Beverage Production Accessories and Replacement Parts • R3500-ELECTRODE Replacement pH Electrode • PH-04 4 pH Buffer Solution • PH-07 7 pH Buffer Solution • R1004 4 pH Calibration Buffer Pouches • R1007 7 pH Calibration Buffer Pouches • CA-52A Soft Carrying Case... -
Page 10: Product Care
• Always rinse the pH electrode in de-ionized water or rinse solution before next us. • Never touch or rub the glass bulb. • Make sure the electrode is clean. Between measurements, rinse the electrode with de-ionized water. If the electrode has been exposed to a solvent immiscible with water, clean it with a solvent miscible with water e.g. ethanol or acetone and rinse carefully with water. • Store the electrode carefully using storage solution (If not available use pH4 solution). REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 12 TesT & MeasuRe wITH ConfIdenCe CHeCk ouT ouR laTesT PRoduCTs! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
