Connections, LED Displays

2
1
RS422, Synchronization
The RS422 connection (Pin 11 and 12 of the multifunction port) can be used with
either of the following configurations:
- RS422 (half-duplex): Load user modes, sensor control and transmission of
measurement results (Modbus RTU or ASCII format).
- Synchronization/triggering: Synchronization respectively triggering using switching
signals.

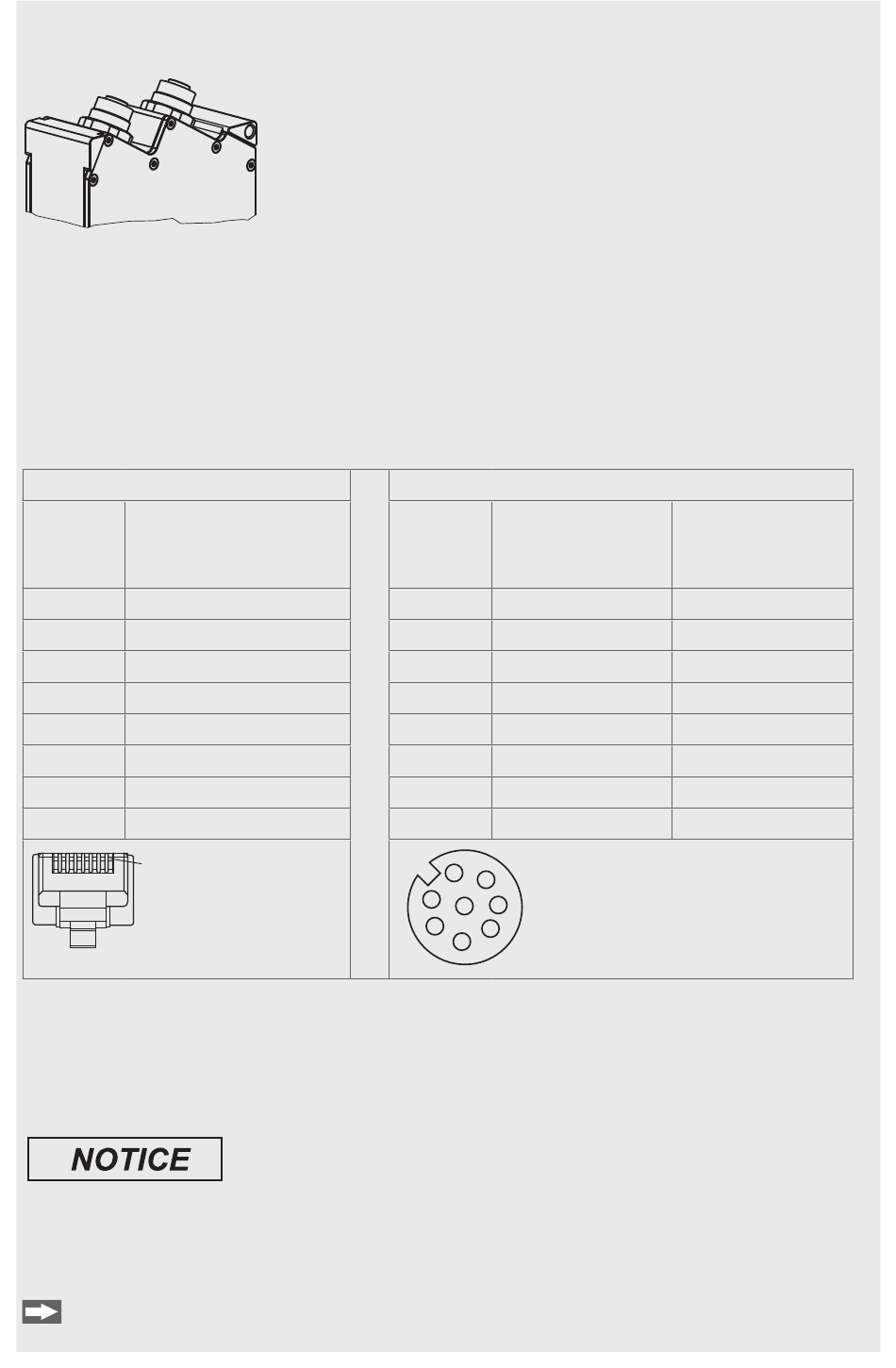

Ethernet Connection, Standard Connection to PC
RJ45 connector
Pin-no. Color stranded
hook-up wire
SC2600/2900-x
1 white (orange)
2 orange
3 white (green)
4 blue
5 white (blue)
6 green
7 white (brown)
8 brown
1
- The sensor supports an automatically, sensor-adapted IP address in the link-local-
net (169.254.x.x). No collision detection is implemented.
This is also the default setting.
- The sensor supports DHCP . This setting is activated by default and has priority
over the retrieval in the link-local-net.
- The sensor scanCONTROL 26xx/29xx supports Power over Ethernet.
- A fixed IP address can be assigned.
Use the program "SensorFinder" delivered on the CD, to make the above-de-
scribed sensor settings.
View on pin
side male
cable connec-
tor
If the sensor is connected to a network adapter/switch that
is capable of POE and if you also use the power supply of
the multifunction port, these two power supplies have to be
galvanically isolated.
> Damage of the sensor and/or the Ethernet card!
1 Ethernet port
2 Multifunction port (Power supply, IO)
8-pin. screw connector (sensor side)
Pin-no 10BaseT,
100BaseTX
5 Tx+
6 Tx-
8 Rx+
1
2
7 Rx-
3
4
2
3
1
8
4
7
5
6
1000BaseT
D1+
D1-
D2+
D3+
D3-
D2-
D4+
D4-
View on solder pin side
screw connector
