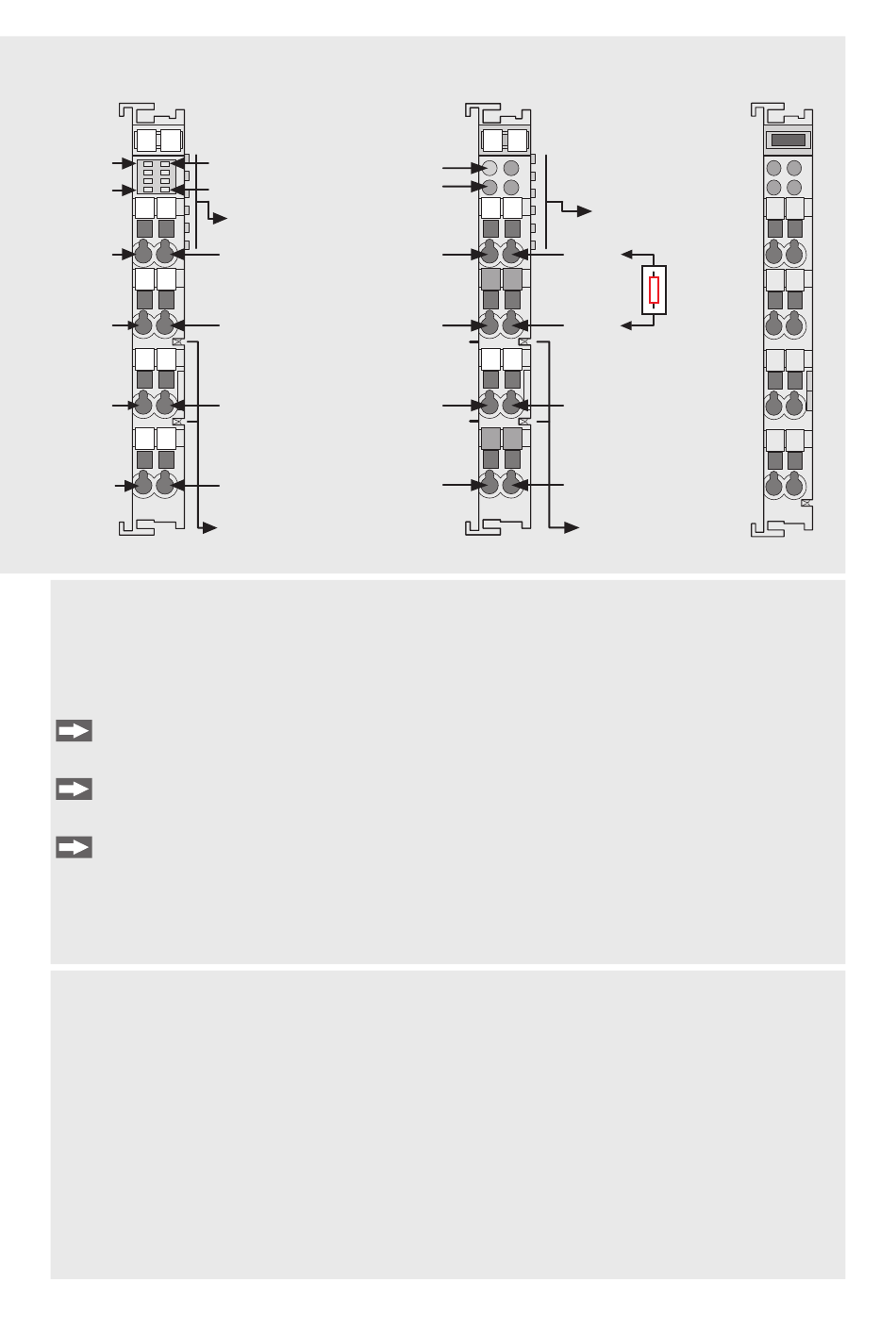

Unit for Connections to an SPS

Status 13 14
DO 1
DO 7
A1 A2
DO 1
A3 A4
DO 3
A5 A6
DO 5
A7 A8
DO 7
750-536
Digital output module
Connect the supply voltage
Digital output modules need a field supply of 5 VDC or 24 VDC depending on the
module type.
After mounting of the modules install the required wiring.
Connect the "System supply (out)" terminals of the OU-Filter module to the
"System supply (in)" terminals of the OU-Fieldbus Coupler (0 V and 24 V).
Connect the system supply (in) of the OU-Filter module to the power supply (0 V
and 24 V).
Connect the field supply (in) of the OU-Filter module to the power supply (0 V
and 24 V resp. 0 V and 5 V).
i
The system supply and field supply should be separated to ensure the bus
operation and electrical isolation in case of a short-circuit of an actor.
11.

Further Information

Please refer to
- the enclosed online manual
- the section "Status and Error Messages" and "Notes" in the scanCONTROL Con-
figuration Tools manual.
You will find details to the separate programs in the respective instruction manuals or
in the instruction manual of this sensor, Chap. 6.2. You will find the instruction manu-
als online or on the provided CD.
Status
DO 2
Function
Error
DO 8
Data contacts
DO 2
AO 1
D0 4 0 V
D0 6
AO 3
DO 8
0 V
Power jumper
contacts
13 14
A
C
B
D
A1 A2
AO 2
M M
0 V
A3 A4
AO 4
M M
0 V
Power jumper
750-555
contacts
Analog output module
A
B
Data contacts
750-600
Bus termination
C
D
