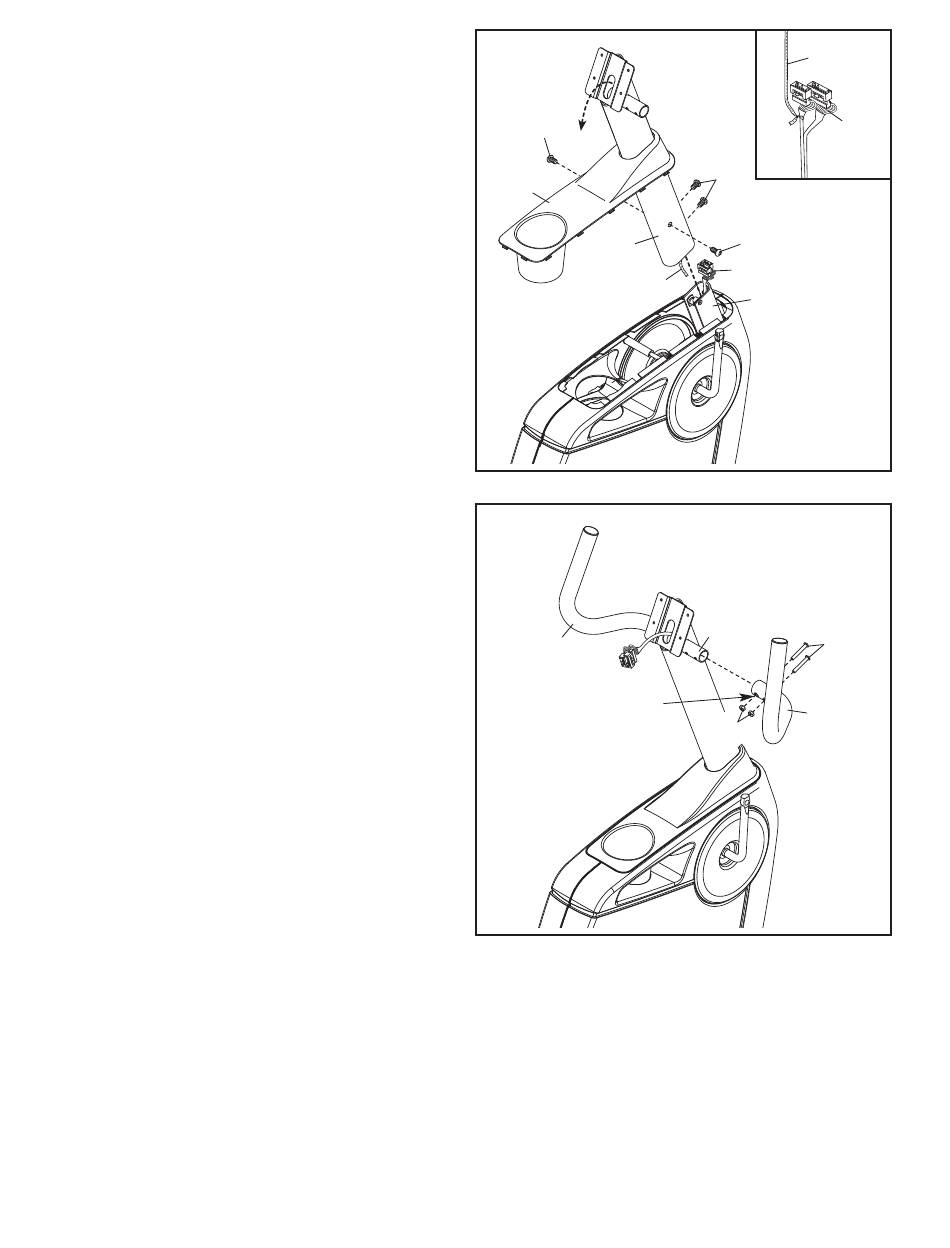

5. Tip: Avoid pinching the Wire Harness (40)
during this step.
Have another person hold the Upright (4) and
the Top Shield (14) near the Frame (1). Locate
the wire tie in the Upright and the Wire Harness
(40) in the Frame.
See the inset drawing. Tie the wire tie to one
of the connectors on the Wire Harness (40).
Then, pull the other end of the wire tie upward
out of the top of the Upright (4). Discard the
wire tie.
Slide the Upright (4) onto the Frame (1). Attach
the Upright with four M10 x 20mm Patch Screws
(54). Then, press the Top Shield (14) downward
into the Frame.
6. Identify the Right and Left Handlebars (28, 29),
which are marked with "R" and "L" stickers.
Attach each Handlebar (28, 29) to the Upright
(4) with two M6 x 38mm Bolts (55) and two M6
Locknuts (56). Make sure that the hexagonal
holes are in the indicated location.
5
54
14
4
Wire Tie
6
29
Hexagonal
Holes
8
Wire Tie
40
54
54
40
1
Avoid
pinching the
Wire Harness
(40)
4
55
28
56
