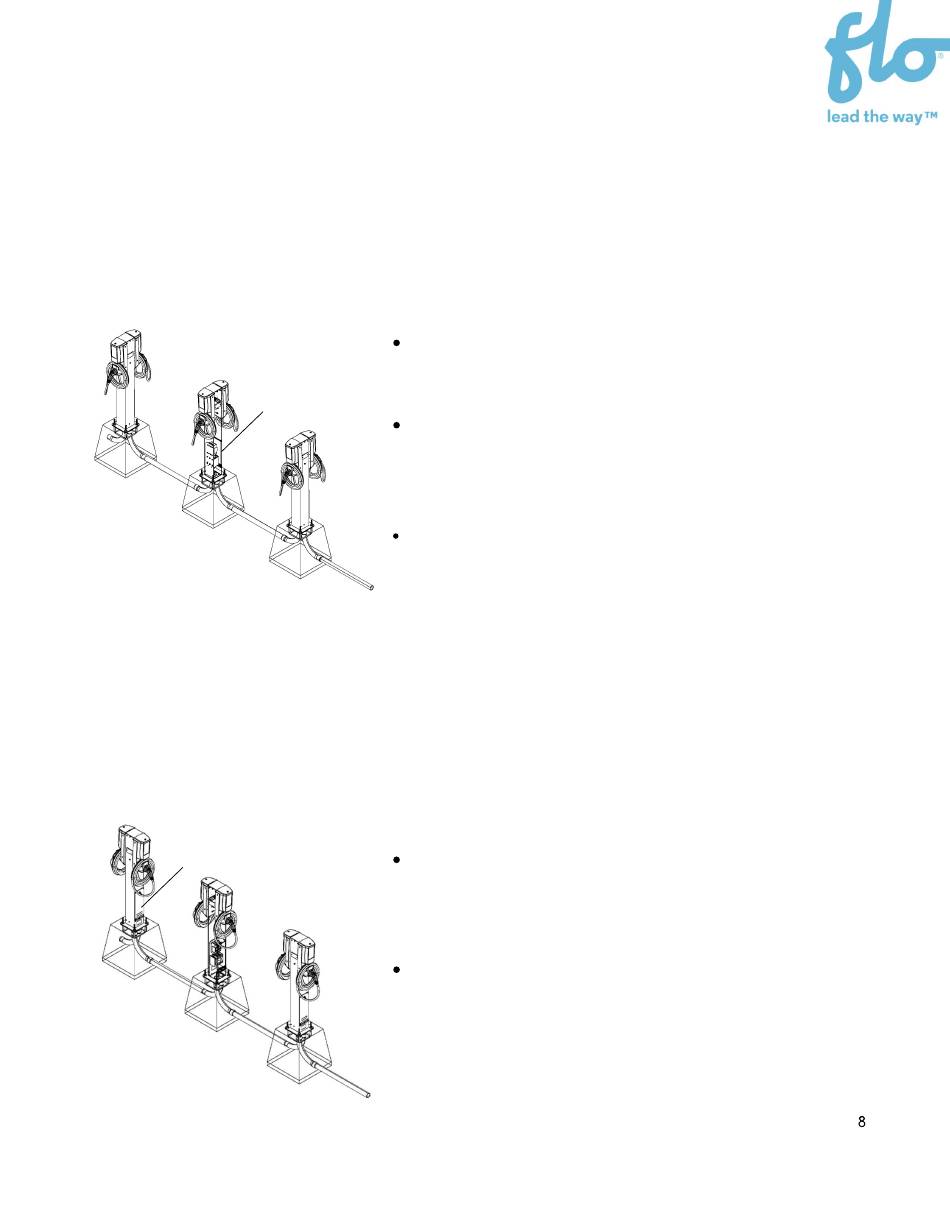

3.3. Cascading Back-to-Back Station Pedestals –
Charging Stations on Front and Back
Cascading dual back-to-back station pedestals with charging stations on the front and
back have the following characteristics
3.4. Cascading Back-to-Back Station Pedestals –
Charging Stations on the Sides
Compatible with CoRe+ MAX pedestals only
Cascading dual back-to-back station pedestals with charging stations on the sides have
the following characteristics:
Access door side
:
When two charging station heads are placed in the
front and back of the pedestal, they should be facing
the parking space it is serving.
Access door side
When the heads are facing the parking space, the
access doors of the pedestals must be placed on
the same side as one of the charging stations, facing
one of the parking spaces.
To have the access door on the same side of a
charging station, the conduit configuration must be
side-by-side, as shown.
When the charging station heads are positioned on
the side of the pedestal, the access door of the
pedestal must be placed on the same side of a
charging station.
To have the access door on the same side of a
charging station, the conduit configuration must be
back-to-back, as shown.
