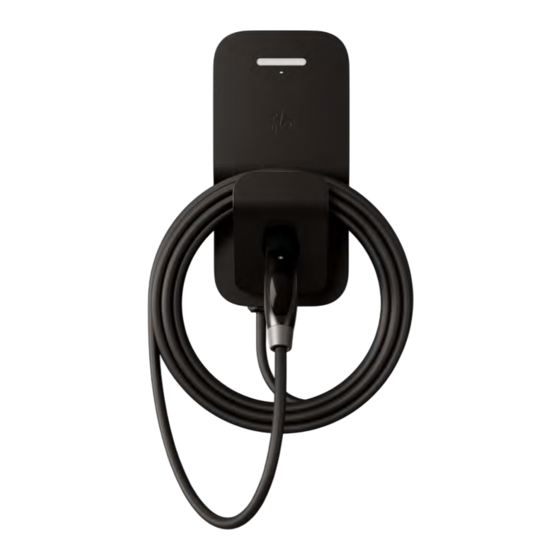

FLO Home™ X3 model that shall be followed during installation, operation, and maintenance of the unit. CAUTION for the the FLO Home X3 - To reduce the risk of fire, connect Circuit only to a circuit provided with the circuit protection shown in Consideration on page 39...
Page 7
Alteration, dis- assembly or reparation must be conducted by an authorized service provider of FLO unless FLO has authorized in writing that specific alteration, dis- assembly or repair may be carried out by a licensed electrician instead of an authorized service provider.
However, specifications and other information contained in this manual are subject to change at any time without notice. 5. FLO cannot be held responsible for any damage that may occur resulting from custom installations not described in this document.
Page 9
6. If, for any reason, it is not possible to install the FLO Home according to the procedures provided in this guide, the installer should contact the FLO team. 7. The warranty will be voided if the charging station has been altered,...
2.2. Safety Instructions for Hardwired Units Follow the safety instructions below for the hardwired units below: 1. Connect the charging station with the proper caliber of conductors. Refer to Connecting the Wiring on page 41 for more information. 2. GROUNDING INSTRUCTIONS - This product must be connected to a grounded, metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal and installed by a certified electrician.
1. Communicate with a licensed electrician to ensure compliance with local building codes, regulations, security standards and weather conditions. 2. Ensure compliance to specific bonding/grounding instructions for the FLO Home X3. Refer to the INSTALLATION INSTRUCTIONS on page 34 which contain important grounding instructions.
2.4. Safety Symbols on your Product The symbols in the table below may be present on your charging station and in this guide. Please refer to the table below for information on the symbols. Symbol Description Alternating current Phase CAUTION: This symbol is used to provide awareness of important safety information in these instructions WARNING: This symbol is used to provide warning of hazardous voltage and possibility of electric shock...
This guide is subject to updates. FLO recommends consulting the Products section of FLO web site (www.flo.com) to get the most up to date version of the installation guide. Please refer to the most up to date version of the installation guide online for up to date instructions.
4. Certifications and Conformities The products covered by this guide follow industry standards and are compliant with the standards and certifications detailed in the sections below: 4.1. Safety Certifications CSA C22.2 No. 281.1/UL 2231-1 Standard for safety for personnel protection systems for electrical vehicle.
4.4. Energy Efficiency Certification The products covered by this guide are ENERGY STAR® certified. 5. Getting Started Use the information in the sections below to help you prepare for the FLO Home installation before getting started. 5.1. MOVING AND STORAGE INSTRUCTIONS...
5.2. Box Contents The table below shows the box contents as they are delivered in the shipping box. Item Image FLO Home Charging station with NEMA plug (plug-in option) or without a charging cable (hardwired option)
Page 17
Item Image Wall mounting plate Wall mounting plate lower security screw Screwdriver bit for safety screw Amperage identification labels FLO Home X3 Installation Guide...
Page 18
Item Image Important information document...
5.3. Main Components The following sections show the main interior and exterior components for of the FLO Home X3. 5.3.1. Exterior Components The FLO Home X3 includes the following exterior components: Part Description Charging status light Connectivity status light Fascia cover plate...
5.3.2. Interior Components The following image displays the main interior components of the FLO Home X3 charging station: Part Description Front shell Current selector (rotary switch) Charging cable power terminal block Charging cable pilot signal terminal block Charging cable ground terminal block...
5.4. Recommended Tools and Material FLO recommends using the tools in the following table to complete the FLO Home installation: Tools/Material Description Image 2.5 mm, 3 mm, Hex key wrench set 4 mm, 5 mm Screwdriver Small flat-head The drill bit will depend on...
Page 22
Tools/Material Description Image (6x) to fasten the the wall Pan head screws mounting plate; selected according to the surface Multi-bit screwdriver Torque wrench Cable gland and strain relief NOTE: Ensure that the type of mounting surface, either the wall or the post, will be strong enough to bear the minimum weight of the EVSE, and ensure that their anchors are compatible with the type of mounting surface.
CAUTION - Any alteration to any part of the charging station will void the warranty unless FLO has authorized in writing that such alteration, dis- assembly or repair may be carried out by a licensed electrician instead of an authorized service provider.
5.6. Electrical Specifications The station has built-in protection against overvoltage conditions and leakage current to ground. Follow the requirements for your configuration below: 5.6.1. For 50 A Charging Stations - FLO Home X3 Connecting the charging station requires: A single-phase 120/240 VAC supply (figure 1) or 3-phase 120/208 VAC supply (figure 2).
5.7. General Specifications Specification FLO Home X3 Electrical Output power @ 240 VAC 12 kW 50 A Output current (adjustable from 6 to 50 A) AC Input voltage 208-240 V @ 60 Hz •Hardwired AC Input connection •NEMA 14-50 (24 inches / 610 mm power...
Page 27
Specification FLO Home X3 •Energy Star certified •NEC 2023 section 625 / CSA C22.1 Compliance •FCC 47 CFR Part 15 / CAN ICES-003(B); NMB-003(B) Communication Wi-Fi 2.4GHz Connection Cellular LTE-M* •Restrained mode •Remote start and stop •Charging schedule FLO mobile app •Real-time status...
Page 28
Installation electrician *Cellular connectivity to the FLO network is a feature in development and may not be enabled at the time of purchase. FLO uses cellular connectivity to administer certain over-the-air product updates and to better understand the location and energy usage of its customers.
5.8. Charging Station Location We recommend using the following criteria to determine the optimal location of the FLO Home charging station: The location where the EV is normally parked. The location of the vehicle’s charge port. The length of the charging cable (25 feet / 7.62 m).
Page 30
To allow for proper airflow and working room, the charging station should be located 12" (30 cm) from any other equipment, walls, or other obstructions. The Wi-Fi signal reach can be evaluated by looking at the Wi-Fi strength of a smart phone connected to the network to be used by the charging station.
5.9. Positioning The recommended installation height of the charging station is 39'' to 45'' (1 m to 1.2 m) from the bottom of the wall mounting plate to the ground/floor. Place the charging station at a height which will facilitate the handling of the connector, and prevent the cable from touching the ground.
Page 32
NOTE: Please note the cable gland to be used in conjunction with the rear or bottom power entry must be provided by the licensed electrician performing the installation as requirements may differ depending on the installation context. Part Description Rear power input entry Bottom power input entry ...
5.9.2. Plug-In Charging Stations The placement of the NEMA outlet and of the charging stations must allow for an adequate connection of the 24” (61 cm) power cord. Once the station is plugged in, there must be enough play in the power input cable to not apply strain to it once it is connected to the outlet.
Please refer to a licensed electrician for expertise on the matter. 6.1. Mounting a Hardwired Charging Station Follow the instructions below to complete a hardwired installation of the FLO Home Part Description Charging station...
Page 35
1. Use the wall mounting plate as a drilling template on the surface where the charging station will be mounted. For rear power entry only: An entry point (hole) in the wall is required to pass Positioning on page 31 the power input cable. Refer to for more information.
Page 36
4. Unscrew the screws (8x) while holding the front shell to the charging station so it does not fall. Once all screws are removed, take off the front shell. The electronic boards can now be seen. NOTE: Do not use a drill for this operation. CAUTION Electronic equipment must be protected from the elements (such as rain, snow and dust) at all times.
Page 37
5. Remove the rear power input plug (A) for rear power entry installation OR bottom power input plug (B) for bottom power entry installation. 6. Install the back housing of the charging station. Hang it on the top of the charging station by presenting it at an angle of about 30 degrees, then pivot it down vertically without forcing it.
Page 38
7. Screw in the mounting plate lower security screw to secure the charging station to the wall mounting plate with a nominal torque of 18 lb-in (2 N m).
6.2. Circuit Consideration WARNING – The values shown below are the minimum technical requirements. The values presented DO NOT reflect the requirements of the various electrical codes in effect in Canada and the United States. For a safe installation, it is imperative to respect the values provided by the electrical code of the jurisdiction where the charging station is installed.
Page 40
NOTE: The FLO Home X3 sold as a hardwired option is set to 48 A (rotary switch position number 8) by default. The FLO Home X3 sold as a NEMA plug-in option is set to 40 A (rotary switch position number 2) by default. A different current delivery can Setting the be set depending on the household electrical infrastructure.
Code CSA C22.1 and National Electrical Code ANSI/NFPA 70. NOTE for the FLO Home X3: The rear and bottom entries can accommodate conduits with an opening of 3/4" (19 mm) National Pipe Taper (NPT). Follow the steps below to connect wiring of the FLO Home X3: 1.
c. Suitable for the outside diameter of the chosen cable. d. Suitable for mounting into an opening size of 3/4" (19 mm) National Pipe Thread (NPT). 3. Connect the ground wire (GND) and the two power wires (L1 and L2), as shown in the image below.
6.5. Installing a Plug-In Charging Station Follow the instructions in the sections below to install a plug-in charging station. 6.5.1. Mounting the Charging Station Follow the steps below to mount the charging station: Part Description Charging station Back plate Wall mounting plate lower security screw 1.
Page 46
5. Plug in the power plug and activate the circuit breaker. NOTE: The FLO Home X3 sold as a plug-in option is set to 40 A (rotary switch position number 2) by default. A different current delivery can be set (from 6 A up to 40 A, or up to 50 A if the charging station is hardwired) depending on the household’s electrical infrastructure.
Circuit Consideration on page 39. NOTE: The default setting of plug-in charging stations from the FLO Home X3 is set to 40 A. By hardwiring the unit, it is possible to change the current limit up to 50 A. Setting the Current Limit on page 49 Refer to for more information.
Page 48
To reduce the risk of fire, connect only to a branch circuit provided with the proper surge protection and conductors caliber in accordance with the Canadian Electrical Code (CSA C22.1-12 ) for installations completed in Canada or the National Electrical Code (ANSI / NFPA 70) for installations completed in the United States.
5. Use a flat-bladed screwdriver to gently rotate the switch to the desired position. The first table in Circuit Consideration on page 39 lays out the different current configurations related to the current selector (rotary switch) positions. 6. Close the enclosure as described in Closing the FLO Home X3 Enclosure on page 43...
Page 50
7. Once the power limitation of the charging station is determined, use the label matching the new power setting (labels are provided on the Important Information document) and place it on the charging station’s nameplate found on the left hand side of the charging station, indicated by XX A in the image below.
NOTE: The FLO Home X3 sold as a hardwired option is set to 48 A (rotary switch position number 8) by default. The FLO Home X3 sold as plug-in option is set to 40 A (rotary switch position number 2) by default. A different current delivery can be set depending on the household’s electrical infrastructure.
FLO account to complete the warranty registration. 6.8. Installing More than One Charging Station The FLO Home X3 may be installed in a single-family home in one of the following configurations or in a combination of them. WARNING: The charging stations must be installed by a licensed...
6.8.1. Installing Charging Stations on their own Dedicated Circuit Breakers The FLO Home charging stations are installed so each is protected by its own dedicated circuit breaker within the circuit panel. This is the default configuration for plug-in models. 6.8.2. Mounting Several Charging Stations on One Breaker The FLO Home charging stations are connected to the same circuit breaker via a junction box.
Page 54
The circuit breaker used in this configuration will depend on the outstanding power capacity available to the charging stations OR the desired amount of power to be allocated to the charging stations. The breaker size may never exceed the highest breaker rating associated with the unit with the highest amperage.
7. OPERATING INSTRUCTIONS The unit must be installed in accordance with the installation instructions before being operated. Follow the steps below to use the FLO Home™ charging station to charge your Electric Vehicle (EV): Step J1772 connector NACS connector Connector...
8. Charger Status Light Indicators 8.1. Charger Status Lights - Common Statuses Green Blue White Not blinking Not blinking Not blinking •Standby •Restrictions in effect •Ready for use •Charging completed •Vehicle is connected OR •No vehicle connected •Vehicle connected •No power restriction by •Session still ongoing until •Active schedule is set to time slot or lock via mobile...
8.2. Charger Status Lights - Auxiliary Statuses Pink Yellow Regular pulse Not blinking (2 seconds cycles) •Charging station locked and powered •Default status on initial boot •Software update •Configuration set in "Lock Mode" •Can only occur when no vehicle is through the mobile app connected •Even if vehicle is plugged in, color...
Page 58
- Time zone be connected to the the onboarding/pairing change - new user paired Internet in the first place, process in the mobile app to station - charging this will facilitate the FLO station rename representative diagnosing the situation...
•The charging station is •Pairing in progress. •The charging station is not connected. •The charging station is connected to FLO and the •This is the default status currently going through the signal is good prior to the charging pairing process.
9. Service and Support A customer experience or technical support representative is happy to assist! Contact customer and technical support for any questions regarding charging station installation, configuration or any technical problem: https://www.flo.com/support/ 1-855-543-8356 Service@flo.com 9.1. Locating the Charging Station Serial Number When contacting the customer or technical support, please have your charging station serial number ready to provide to customer or technical support.
10. USER MAINTENANCE INSTRUCTIONS The FLO Home enclosure complies to the 4X enclosure type which is intended for indoor or outdoor use, primarily to provide a degree of protection against corrosion, windblown dust, rain, splashing water, and hose-directed water. The integrity of the enclosure must remain intact at all times, including from ice which can form.
11. FCC Statement - For USA Only This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
HOX3N0XXXX NOTE: The X's in the table above represent configuration variables that do not affect the FLO Home installation instructions. X's have been used for visual representation purposes to reflect the set of product codes to which this guide applies.
B est conforme à la norme NMB-003 du Canada. 13. FLO Limited Warranty on FLO Home Products The FLO Home™ warranties and liabilities are included in the sections below. Refer to the warranties and liabilities according to your region. IMPORTANT NOTE: Product warranty registrations are performed through the FLO mobile app.
Charging Solutions USA Inc. in California, with a mailing address at 2800 Rue Louis- Lumière, Suite 100, Québec (Québec) G1P 0A4 Canada (“FLO”). 1) Products. The products covered by this warranty are the FLO Home™ X3, the FLO Home™ X6, and the FLO Home™ X8 (the “Products”).
Page 66
Product such as condition, model/serial number and proof of purchase. If FLO requires the Product to be returned to FLO, FLO will provide a shipping label that will cover shipping costs within the United States and, if the Product is eligible for Warranty coverage, FLO shall be responsible for costs related to returning the Product to the Purchaser’s address designated in its RMA,...
Page 67
Product is ineligible for service under this Warranty, FLO reserves the right to charge the Purchaser for all travel time to the Purchaser’s site. Prior to any on-site intervention, FLO will provide the Purchaser a quote for any travel costs that would apply in the circumstances described above, and the Purchaser’s acceptance thereof will be a condition to FLO performing the on-site inspection.
Page 68
FLO DOES NOT WARRANT THAT THE PRODUCTS WILL BE ERROR-FREE OR WILL OPERATE WITHOUT INTERRUPTION. 8) LIMITATION OF LIABILITY. IN NO EVENT SHALL FLO BE LIABLE FOR INDIRECT, SPECIAL, INCIDENTAL, EXEMPLARY, PUNITIVE OR CONSEQUENTIAL DAMAGES OF ANY NATURE (EVEN IF THE ADVENT OF SUCH DAMAGE WAS KNOWN OR COULD HAVE...
Page 69
ON AN INDIVIDUAL BASIS, THE PURCHASER WAIVES ANY RIGHT IT MAY HAVE TO START OR PARTICIPATE IN ANY CLASS ACTION AGAINST FLO AND THE PURCHASER AGREES TO OPT OUT OF ANY CLASS PROCEEDING AGAINST FLO. IF FOR ANY REASON A CLAIM PROCEEDS IN COURT RATHER THAN IN ARBITRATION EACH PARTY WAIVES ANY RIGHT TO A JURY TRIAL.
FLO, with a mailing address at 2800 Rue Louis-Lumière, Suite 100, Québec (Québec) G1P 0A4 Canada (“FLO”). 1) Products. The products covered by this warranty are the FLO Home™ X3, the FLO Home™ X6, and the FLO Home™ X8 (the “Products”).
Page 72
Product such as condition, model/serial number and proof of purchase. If FLO requires the Product to be returned to FLO, FLO will provide a shipping label that will cover shipping costs within Canada and, if the Product is eligible for Warranty coverage, FLO shall be responsible for costs related to returning the Product to the Purchaser’s address designated in its RMA, so long...
Page 73
Warranty, FLO reserves the right to charge the Purchaser for all travel time to the Purchaser’s site. Prior to any on-site intervention, FLO will provide the Purchaser a quote for any travel costs that would apply in the circumstances described above, and the Purchaser’s acceptance thereof will be a condition to FLO performing the...
Page 74
FLO DOES NOT WARRANT THAT THE PRODUCTS WILL BE ERROR-FREE OR WILL OPERATE WITHOUT INTERRUPTION. 8) LIMITATION OF LIABILITY. IN NO EVENT SHALL FLO BE LIABLE FOR INDIRECT, SPECIAL, INCIDENTAL, EXEMPLARY, PUNITIVE OR CONSEQUENTIAL DAMAGES OF ANY NATURE (EVEN IF THE ADVENT OF SUCH DAMAGE WAS KNOWN OR COULD HAVE...
Page 75
PERMITTED BY APPLICABLE LAW, THE PURCHASER AGREES THAT ALL CLAIMS WILL BE BROUGHT ON AN INDIVIDUAL BASIS, THE PURCHASER WAIVES ANY RIGHT IT MAY HAVE TO START OR PARTICIPATE IN ANY CLASS ACTION AGAINST FLO AND THE PURCHASER AGREES TO OPT OUT OF ANY CLASS PROCEEDING AGAINST FLO. IF FOR ANY REASON A CLAIM PROCEEDS IN COURT RATHER THAN IN ARBITRATION EACH PARTY WAIVES ANY RIGHT TO A JURY TRIAL.
Page 76
FLO reserves the right to subcontract the performance of its warranty obligations to qualified subcontractors in its sole discretion. 12) Language. A French version of this Warranty is available at: http://www.flo.com/fr-CA/. Une version française de cette garantie est disponible au: http://www.flo.com/fr-CA/.
