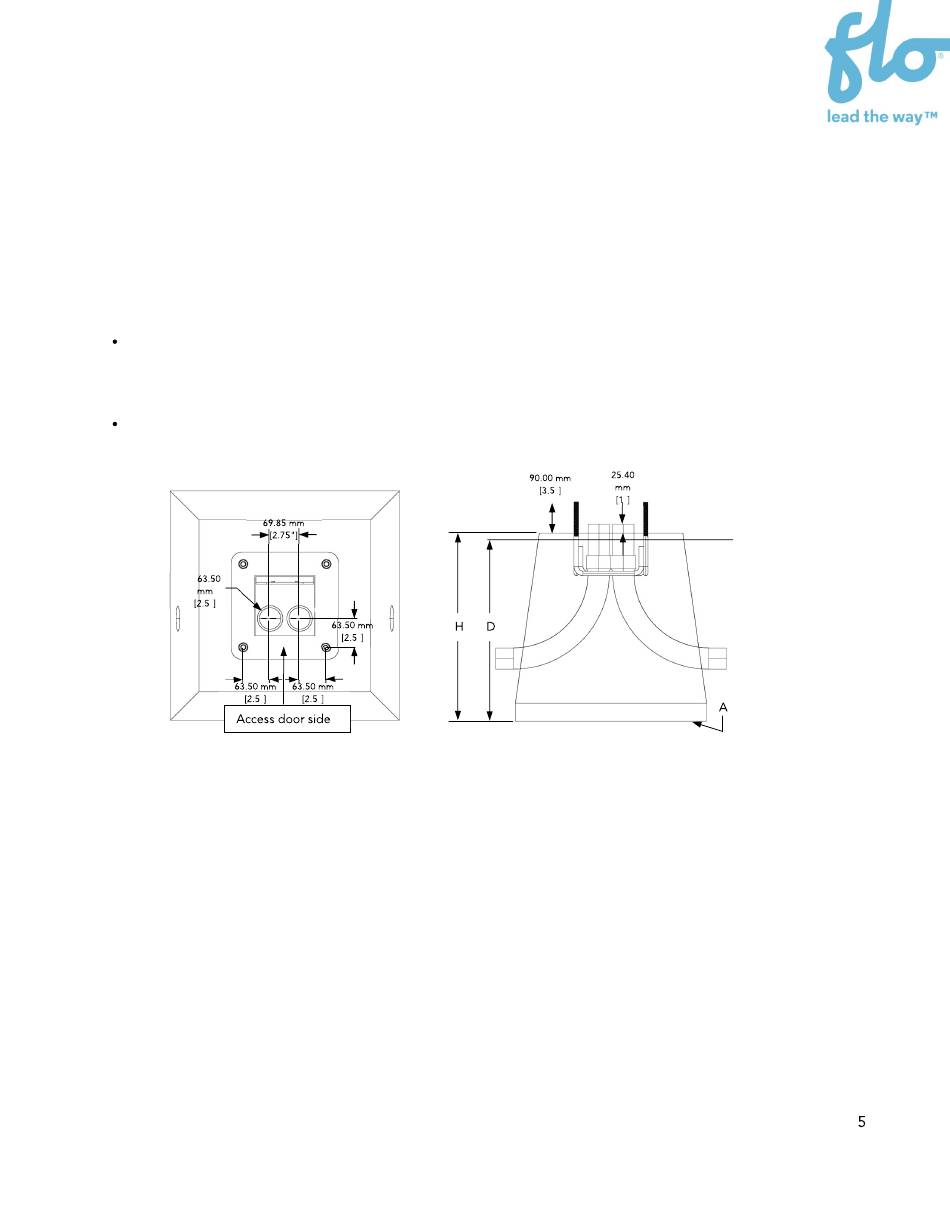

Side-by-Side Conduit Positioning (Compatible for both CoRe+ and CoRe+ MAX
pedestals)
Use for Single, Dual Side-by-Side, and Back-to-Back (Stations on Back and Front) charging
station installations (see sections 3.3.1 to 3.3.3).
The conduit positioning should follow the guidelines below:
The conduits should be off centered toward the door, with the outside of the
conduits at a minimum distance of 32 mm (1.25'') from the center of the anchor
pins.
The 2 conduits must be placed side by side and centered between the anchor
pins, which are located on each side of the pedestal access door.
Ø
"
"
"
"
"
"
